Clamshell Mount Fiber Optic Cable Connector Types Field Assembly FTTB

Clamshell Mount Fiber Optic Cable Connector Types Field Assembly FTTB
Clamshell Mount Fiber Optic Cable Connector Types Field Assembly FTTB Clamshell Mount Fiber Optic Cable Connector Types Field Assembly FTTB Clamshell Mount Fiber Optic Cable Connector Types Field Assembly FTTB Clamshell Mount Fiber Optic Cable Connector Types Field Assembly FTTB

Large Image :  Clamshell Mount Fiber Optic Cable Connector Types Field Assembly FTTB

Product Details:
Place of Origin: china
Brand Name: UT-King
Certification: CE,ROSH,iso9001
Model Number: SC5506
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Packaging Details: 1pcs 1 bag,100pcs/1 box.1000 pcs/carton
Delivery Time: 3-5days
Payment Terms: T/T, Western Union,credit card
Supply Ability: 10000pcs/week

Clamshell Mount Fiber Optic Cable Connector Types Field Assembly FTTB

Description
Insertion Loss: ≤0.3db Average Application: FTTH FTTB FTTX Network
Connector Type: SC/UPC SC/APC Return Loss: Upc≤45db,Apc≤55db
Color: Green/Blue Product Name: SC Fast Connector
Fiber Type: SM/MM Connector Structure: Pre -embeded Type
Name: Fast Connector Connector: Fast Connector SC
Fiber Cable Type: 3x2mm Flat Cable Length: 55mm
High Light:

UPC fiber optic cable connector types

,

UPC fiber optic cable connector types

,

FTTB field assembly connector

Clamshell / Screw Field Mount Connector Field Assembly Optical Connector SC APC Fast Connector





Description

UT-King Fiber Optic fast Connecto is called "Field Assembly Connector" or "Field terminated fiber connector" or "quickly assembly Fiber connector". It is designed for simple and fast field termination of single fibers, without polishing or epoxy. The unique design is a pre-polished ferrule and a mechanical splice inside the connector body.

UT-King's Fast connectors make fiber terminations fast, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. Assembly of the quickly assembly fiber connector requires only normal fiber preparation tools, no electrical power supply is needed





Features



  • a pre-stubbed factory-polished ferrule that couples to the fiber being terminated.
  • Precision mechanical alignment insures low loss with a proprietary gel.
  • Connector Type: SC
  • Fiber Application: Singlemode, Multimode
  • Fiber Type: Simplex
  • Number of Fibers: 1
  • Maximum Cable Diameter (mm):2X3mm
  • Connector Ferrule: Ceramic





Applications

  • Optical fiber access of mobile base station.
  • For FTTH Drop Cable field termination.
  • For emergency fiber path repair.
  • FTTH, LAN and other fiber optic system.
  • Used to open the FTTH fiber terminal end.
  • Fiber Optic Distribution Frame, Patch Panel, ONU
  • in the box, cabinet, such as wiring into the box.
  • Maintenance or emergency restoration of fiber network
  • The construction of the fiber end user access and maintenance.



Specification

Model No. UT-SC5506
Connector Type UPC/APC
Length 55mm
Applicable for Drop cable.Indoor cable
Fiber mode Single mode
Operation time About 50s(no fiber cut)
Insertion Loss ≤0.4dB
Insertion Loss Typical value 0.2dB
Return Loss ≥50dB UPC ≥55dB APC
Fastening strength of naked fiber ≥5N
Tensile strength ≥40N
Reusable ≥10 times
Operating Temperature -40~+85℃




Detailed Images

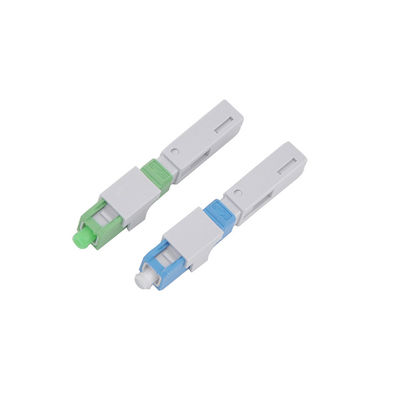

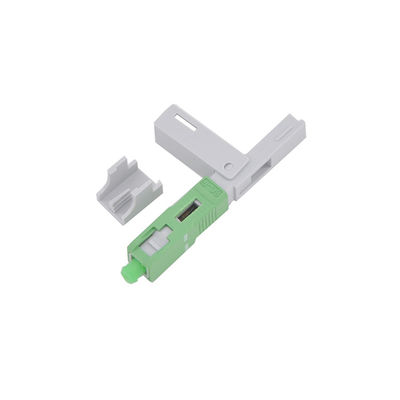

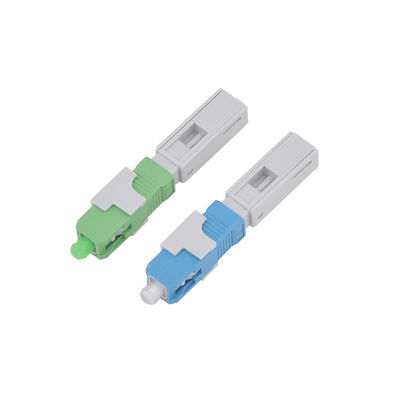

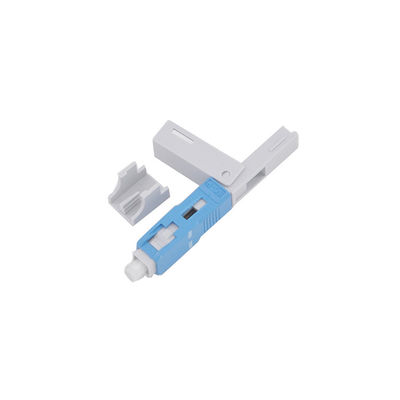

Clamshell Mount Fiber Optic Cable Connector Types Field Assembly FTTB 0Clamshell Mount Fiber Optic Cable Connector Types Field Assembly FTTB 1Clamshell Mount Fiber Optic Cable Connector Types Field Assembly FTTB 2Clamshell Mount Fiber Optic Cable Connector Types Field Assembly FTTB 3







FAQ

Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than



Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available


Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.



Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.



Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
