SC 5504 Fiber Optic Fast Connector Sc Apc Local Area Network

SC 5504 Fiber Optic Fast Connector Sc Apc Local Area Network
SC 5504 Fiber Optic Fast Connector Sc Apc Local Area Network SC 5504 Fiber Optic Fast Connector Sc Apc Local Area Network SC 5504 Fiber Optic Fast Connector Sc Apc Local Area Network SC 5504 Fiber Optic Fast Connector Sc Apc Local Area Network

Large Image :  SC 5504 Fiber Optic Fast Connector Sc Apc Local Area Network

Product Details:
Place of Origin: china
Brand Name: UT-King
Certification: CE,ROSH,iso9001
Model Number: SC5504
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Packaging Details: 1pcs 1 bag,100pcs/1 box.1000 pcs/carton
Delivery Time: 3-5days
Payment Terms: T/T, Western Union,credit card
Supply Ability: 10000pcs/week

SC 5504 Fiber Optic Fast Connector Sc Apc Local Area Network

Description
Insertion Loss: ≤0.3db Average Application: FTTH FTTB FTTX Network
Connector Type: SC/UPC SC/APC Return Loss: Upc≤45db,Apc≤55db
Color: Green/Blue Product Name: SC Fast Connector
Fiber Type: SM/MM Connector Structure: Pre -embeded Type
Name: Fast Connector Connector: Fast Connector SC
Fiber Cable Type: 3x2mm Flat Cable Length: 55mm
High Light:

SC 5504 Fiber Optic Fast Connector

,

55mm Fiber Optic Fast Connector

,

55mm sc apc quick connector

FTTH Fiber Optic Fast Connector Quick Connector Fiber Optic Fast Connectors SC/Upc SC/Apc





Description

UT-King Fiber Optic fast Connector s a field assembly fiber connector with exquisite volume, excellent optical and mechanical performance developed by Dimension Technology. With unique fiber alignment and matching liquid structure, UT-King is the best choice for fast field installment, easy to use and no need other tools to help assemble.

UT-King's Fast connectors make fiber terminations fast, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. Assembly of the quickly assembly fiber connector requires only normal fiber preparation tools, no electrical power supply is needed





Features



  • Compatible with standard SC connectors;
  • Field installable, cost effective, user friendly;
  • PC, APC polishing optional;
  • No electricity required;
  • FTTH cable, fiber optic cable optional;
  • Reliable durable and superior optical performance
  • Low insertion loss and high return loss
  • Stable capability and high reliability
  • Excellent mechanical capability
  • Fiber alignment by ceramic ferrule
  • Linkage locking mechanism
  • Fully-enclosed design for matching gel
  • Applicable to different kinds of optical cables
  • Red light viewing window at the coupling point
  • Front Micro-bend Design





Applications

  • Local Area Network
  • Data communication network
  • Telecommunication optical transmission network
  • Optical access network (OAN)
  • Active device termination
  • CATV
  • Fiber optics data transmission (FODT)



Specification

Model No. UT-SC5504
Connector Type UPC/APC
Length 55mm
Applicable for Drop cable.Indoor cable
Fiber mode Single mode
Operation time About 50s(no fiber cut)
Insertion Loss ≤0.4dB
Insertion Loss Typical value 0.2dB
Return Loss ≥50dB UPC ≥55dB APC
Fastening strength of naked fiber ≥5N
Tensile strength ≥40N
Reusable ≥10 times
Operating Temperature -40~+85℃

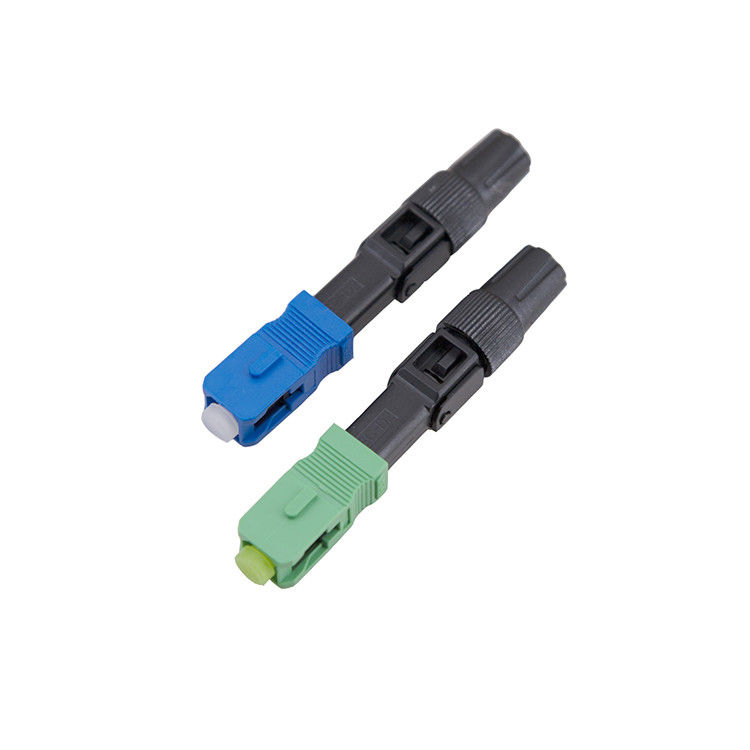

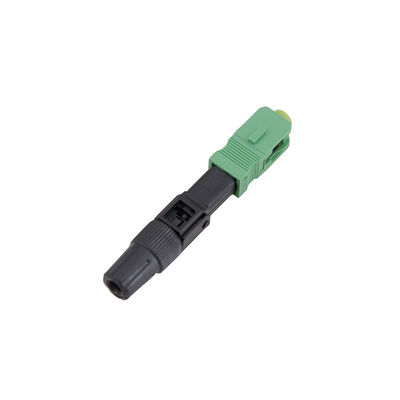

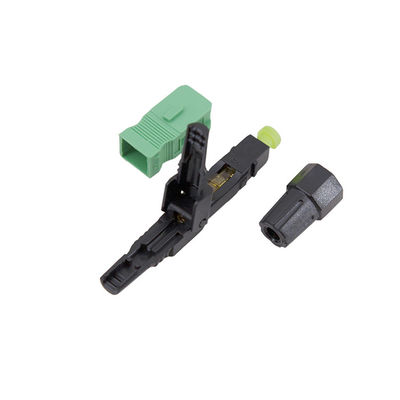

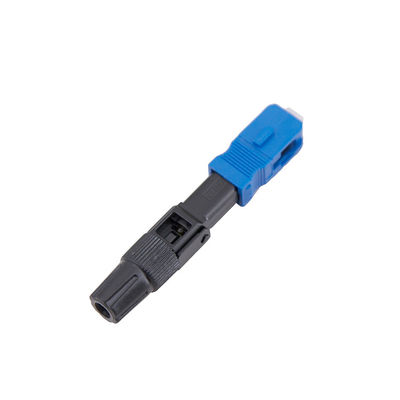

Detailed Images

SC 5504 Fiber Optic Fast Connector Sc Apc Local Area Network 0SC 5504 Fiber Optic Fast Connector Sc Apc Local Area Network 1SC 5504 Fiber Optic Fast Connector Sc Apc Local Area Network 2SC 5504 Fiber Optic Fast Connector Sc Apc Local Area Network 3







FAQ

Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than



Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available


Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.



Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.



Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
