Product Details:
|
| Product Name: | Xpon Onu | Brand: | UT-King |
|---|---|---|---|
| Function: | 1ge+3fe+1pots+catv+wifi | Wavelength: | Tx 1310nm, Rx1490nm |
| Name: | WIFI XPON ONU | MOQ: | 1 PCS |
| OEM: | YES | Applications Distance: | 20km |
| Chipset: | Realtek RTL9603C+RTL8192 | External Power Supply: | DC 12V/1.5A |
| Dimension: | 180mm×110mm×40mm | Weight: | 0.3kg/pcs |
| Packing: | 30pcs/carton | Gross Weight: | 15kg |
| High Light: | CATV ftth gpon epon onu modem,3FE ftth gpon epon onu modem,dc rx1490nm 3FE 1ge gpon onu |
||

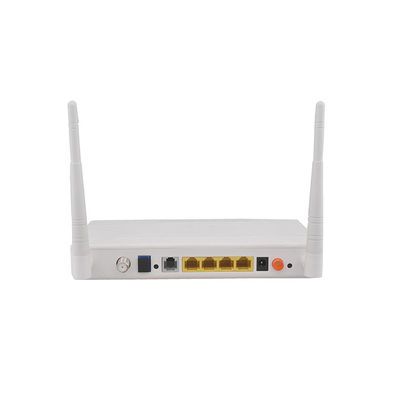

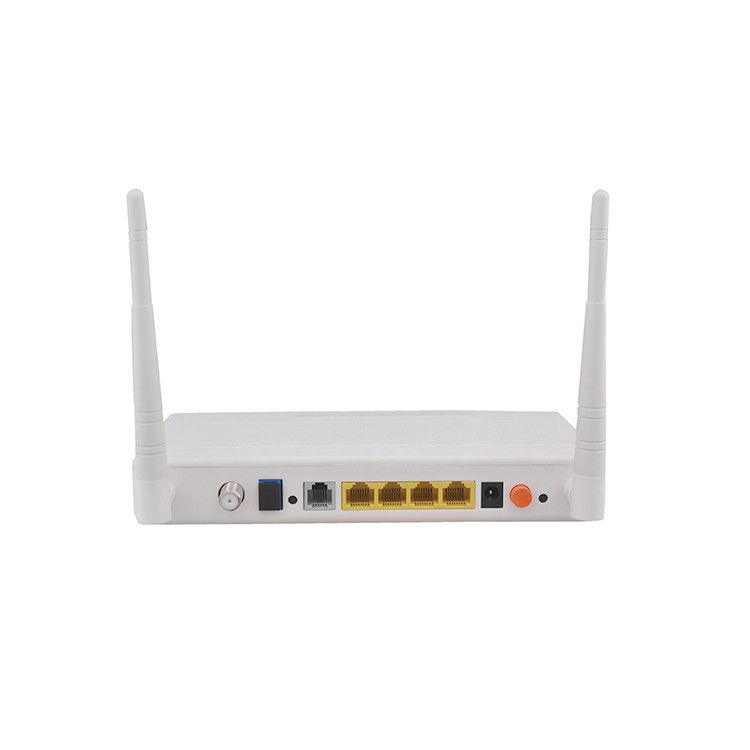

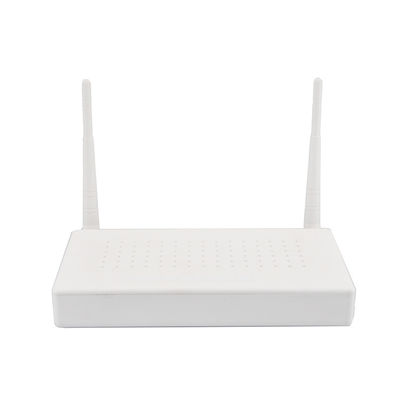

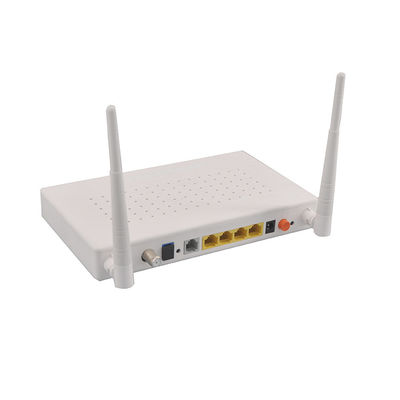

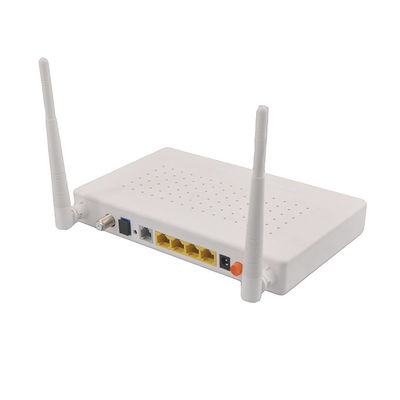

UT-King XPON ONU/HGU(XP6431) devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. These boxes are based on the mature Gigabit GPON and EPON technology, which have high ratio of performance to price, and the technology of 802.11n WiFi (2T2R), Layer 2/3 and high quality as well. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as ITU-TG.984.x and IEEE802.3x.
|
Item |
Description |
| Chipsets |
Realtek RTL9603C+RTL8192 |
| Optical interface |
1 XPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
| Optical Wavelength |
Tx 1310nm, Rx 1490nm |
| Optical interface |
SC/APC |
| RX sensitivity |
< -27dBm @ 1490nm |
| Wireless |
Compliant with IEEE802.11b/g/n, |
| Operating frequency: 2.400-2.4835GHz |
|
| support MIMO, rate up to 300Mbps, |
|
| 2T2R,two external antenna 5dBi, |
|
| Support: Multiple SSID |
|
| Channel: Auto |
|
| Modulation type: DSSS, CCK and OFDM |
|
| Encoding scheme: BPSK, QPSK, 16QAM and 64QAM |
|
| WLAN throughput |
100Mbps @ 40users, 1518bytes, no-encryption 107Mbps @ 40users, 512bytes, encryption |
| LAN interface |
1*10/100/1000Mbps 3*10/100Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
| POTS interface |
1 FXS, RJ11 connectors |
| CATV interface |
RF, WDM ,optical power : +2~-18dBm |
| Optical reflection loss: ≥45dB |
|
| Optical receiving wavelength: 1550±10nm |
|
| RF frequency range: 47~1000MHz, RF output impedance: 75Ω |
|
| RF output level: 78dBuV |
|
| AGC range: 0~-15dBm |
|
| MER: ≥32dB@-15dBm |
|
| DC power supply |
DC 12V/1A, external AC-DC power adaptor |
| Button |
RST, Power, WiFi, WPS, Pair |
| Power consumption |
≤ 10W |
| Operating condition |
Operating temp: 0 ~ +55℃ Operating humidity: 10~90% (non-condensed) |
| Storing condition |
Storing temp: -30 ~ +60℃ Storing humidity:10~90%(non-condensed) |
| Dimension |
180mm×110mm×40mm(L×W×H) |
| Net Weight |
0.24Kg |
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.
Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
