G652D Single Mode Fiber Cable Multimode GCYFY 72 Core Air Blown Micro

G652D Single Mode Fiber Cable Multimode GCYFY 72 Core Air Blown Micro
G652D Single Mode Fiber Cable Multimode GCYFY 72 Core Air Blown Micro G652D Single Mode Fiber Cable Multimode GCYFY 72 Core Air Blown Micro

Large Image :  G652D Single Mode Fiber Cable Multimode GCYFY 72 Core Air Blown Micro

Product Details:
Place of Origin: china
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: GCYFY
Payment & Shipping Terms:
Minimum Order Quantity: 1km
Packaging Details: 1km/drum,2km/drum
Delivery Time: 3-7days
Payment Terms: T/T, Western Union
Supply Ability: 1000km /week

G652D Single Mode Fiber Cable Multimode GCYFY 72 Core Air Blown Micro

Description
Application: FTTH FTTB FTTX Network Product Name: Fiber Optic Cable GCYFY
Fiber Brand: Corning/Yofc/LS Fiber Type: Single Mode
Fiber Count: 2-72 Cores Length: 1km Or 2km
Package: Wooden Drum Keywords: Air-Blown Micro Fiber Cable
High Light:

G652D single mode fiber cable

,

GCYFY single mode fiber cable

,

GCYFY single mode multimode fiber

UT-King 4 6 8 12 24 36 48 72Core Single Mode Air-Blown Micro Fiber Optical Cable G652D GCYFY Low Loss



Description

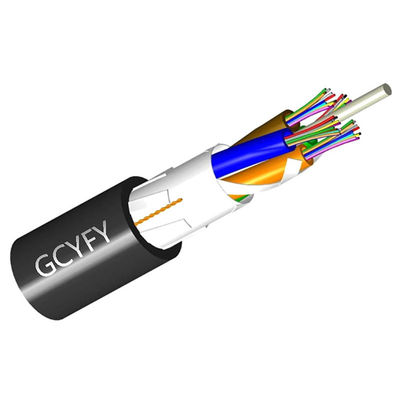

UT-King’s Micro air blown fiber optic cable(GCYFY) is mainly used in access network and metropolitan area network. By air blowing installation technology, without excavation surface in tiny pipe installation, also can be installed in the existing cable pipe, save pipeline resources, meet the real time capacity of the network. We GL provides the micro optical cable technology can reduce the early stages of the fiber optic cable construction cost, increase investment according to the demand of the network, to speed up the return on investment, is a good solution of FTTH.



Features

  • Using center tube design less than 24f to get more compact structure
  • Small outer diameter, light weight, low friction sheath material
  • Accurate excess fiber length control to get stable cable performance
  • Stable temperature cycling performance by special process control
  • High speed, long distance air-blowing, efficient installation
  • Optional LSZH outer sheathing, applicable for access to indoor
  • Optional 200μm mini optical fiber to get smaller outer diameter



Specification


Application Air Blown Micro Duct
Jacket Material PE/LSZH
Outer Diameter 5.6---8.0 mm
Fiber type Single Mode/Multimode
Wavelength 1310nm/1550nm
Cores Number 2~288
Strength Member Steel Wires Stranded
Armored Corrugated Steel Tape
Product Keywords air blown fiber optical cable, air blown fiber duct, air blown fiber cable



Detailed Images

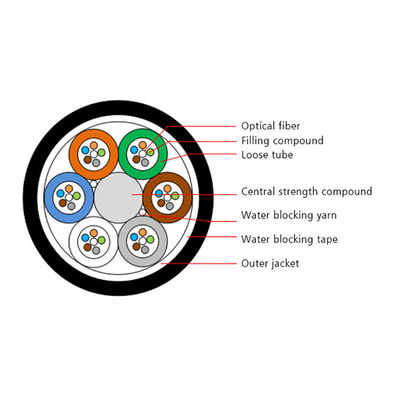

G652D Single Mode Fiber Cable Multimode GCYFY 72 Core Air Blown Micro 0G652D Single Mode Fiber Cable Multimode GCYFY 72 Core Air Blown Micro 1

FAQ

Q: Are you a manufacturer or a trading company?

A: We are a professional cable manufacturer with 30 years of production experience



Q: What are our payment terms?

A: Our payment terms are usually T / T 30% of the prepayment, ie the balance before pickup or the sight letter of credit.



Q. What is the delivery time?

A: The delivery time is usually 5-30 days. If the order quantity is large, the delivery time needs to be negotiated again.



Q: Can we provide customers with free samples?

Of course, we provide free samples for customers to check.



Q: Does your price include customs clearance at the destination, import tax, installation services?

A: Sorry, we currently only provide cables and provide transportation services in China. Both parties should re-quote and negotiate other services.



Q: What is your quality guarantee and deadline?

A: Each product will be inspected by professional testing equipment, and the product will be out of the warehouse after it is qualified. Usually, the warranty period is 18 months after delivery and 12 months after installation (whichever is earlier).
