1.2mm Single Mode Optical Fiber G652d Standard PE Sheath

Certification
China Shenzhen UT-King Technology Co., Ltd. certification
China Shenzhen UT-King Technology Co., Ltd. certification
I'm Online Chat Now

1.2mm Single Mode Optical Fiber G652d Standard PE Sheath

1.2mm Single Mode Optical Fiber G652d Standard PE Sheath
1.2mm Single Mode Optical Fiber G652d Standard PE Sheath 1.2mm Single Mode Optical Fiber G652d Standard PE Sheath

Large Image :  1.2mm Single Mode Optical Fiber G652d Standard PE Sheath

Product Details:
Place of Origin: china
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: GYXTW
Payment & Shipping Terms:
Minimum Order Quantity: 1km
Packaging Details: 1km/drum,2km/drum
Delivery Time: 3-7days
Payment Terms: T/T, Western Union
Supply Ability: 1000km /week

1.2mm Single Mode Optical Fiber G652d Standard PE Sheath

Description
Application: FTTH FTTB FTTX Network Product Name: Fiber Optic Cable GYXTW
Fiber Brand: Corning/Yofc/LS Fiber Options: ITU G652D ,G657A,OM1,OM2,OM3,OM4
Strength Member: 1.2mm Two Parallel Steel Wire Length: 1km/roll/2km/roll
Diameter: 8.0mm Keywords: GYXTW
Fiber Count: 2 4 6 8 12 Cores Jacket: HDPE
High Light:

g652d single mode optical fiber

,

1.2mm single mode optical fiber

,

g652d fiber standard

Outdoor Optical Fiber Cable GYXTW 2 4 6 812 24 core Single Mode Fiber Optic Cable G652D



Description

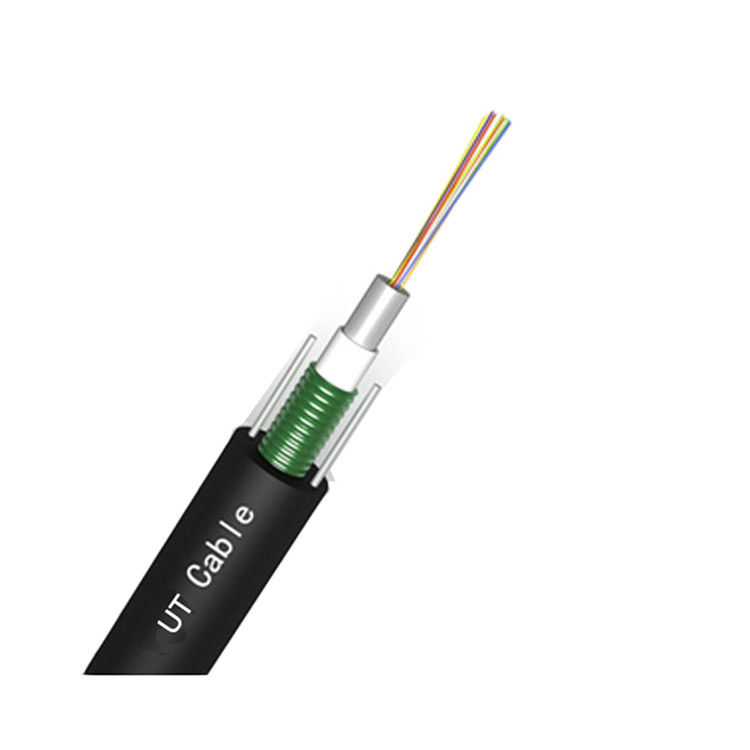

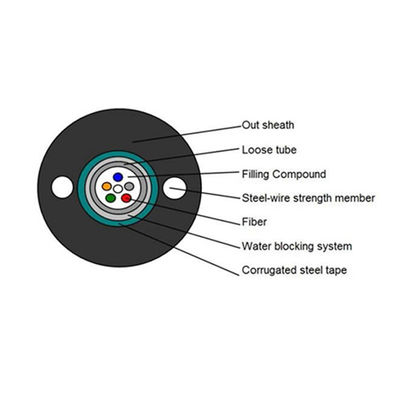

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene PE sheath.







Features

  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • PE sheath enhancing moisture-proof
  • Small diameter, light weight and easy to lay.
  • Long delivery length and low price





Specification

Fiber Type G.652 G.655 50/125μm 62.5/125μm

Attenuation

(+20℃)



@850nm     ≤3.0 dB/km ≤3.0 dB/km
@1300nm     ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm     ≥500MHz·km ≥200MHz·km
@1300nm     ≥1000MHz·km ≥600MHz·km
Numerical Aperture     0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λ cc ≤1260nm ≤1480nm



Detailed Images

1.2mm Single Mode Optical Fiber G652d Standard PE Sheath 01.2mm Single Mode Optical Fiber G652d Standard PE Sheath 1

FAQ

Q: Are you a manufacturer or a trading company?

A: We are a professional cable manufacturer with 30 years of production experience



Q: What are our payment terms?

A: Our payment terms are usually T / T 30% of the prepayment, ie the balance before pickup or the sight letter of credit.



Q. What is the delivery time?

A: The delivery time is usually 5-30 days. If the order quantity is large, the delivery time needs to be negotiated again.



Q: Can we provide customers with free samples?

Of course, we provide free samples for customers to check.



Q: Does your price include customs clearance at the destination, import tax, installation services?

A: Sorry, we currently only provide cables and provide transportation services in China. Both parties should re-quote and negotiate other services.



Q: What is your quality guarantee and deadline?

A: Each product will be inspected by professional testing equipment, and the product will be out of the warehouse after it is qualified. Usually, the warranty period is 18 months after delivery and 12 months after installation (whichever is earlier).
