12 Core Armoured Fiber Optic Cable FTTH Drop LSZH G657A1

12 Core Armoured Fiber Optic Cable FTTH Drop LSZH G657A1
12 Core Armoured Fiber Optic Cable FTTH Drop LSZH G657A1 12 Core Armoured Fiber Optic Cable FTTH Drop LSZH G657A1 12 Core Armoured Fiber Optic Cable FTTH Drop LSZH G657A1

Large Image :  12 Core Armoured Fiber Optic Cable FTTH Drop LSZH G657A1

Product Details:
Place of Origin: china
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: GJXFH
Payment & Shipping Terms:
Minimum Order Quantity: 1km
Packaging Details: 1km/drum,2km/drum
Delivery Time: 3-7days
Payment Terms: T/T, Western Union
Supply Ability: 1000km /week

12 Core Armoured Fiber Optic Cable FTTH Drop LSZH G657A1

Description
Application: FTTH FTTB FTTX Network Product Name: FTTH Indoor Drop Cable
Color: Black Or Customized Number Of Conductors: 1 Or 2 Or 4 Or 6 Or 8 Or 12
Fiber Type: G657A1 Fiber Count: 1-12
Jacket: LSZH Strength Member: Steel Wire/FRP
Type: FTTH Drop Wire Outdoor Cable Length: 1km Or 2km
OEM: Available
High Light:

FTTX G657A1 Fiber Optic Cable

,

LSZH ftth drop fiber optic cable

,

FTTX LSZH FTTH Drop Cable

1 2 4 Cores Single Mode Indoor Flat Drop Fiber Optical Cable FTTH Drop Cable Anatel Certificate



Description

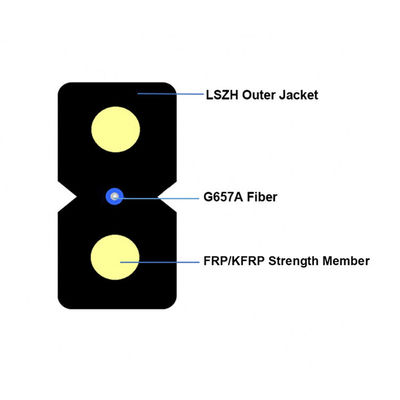

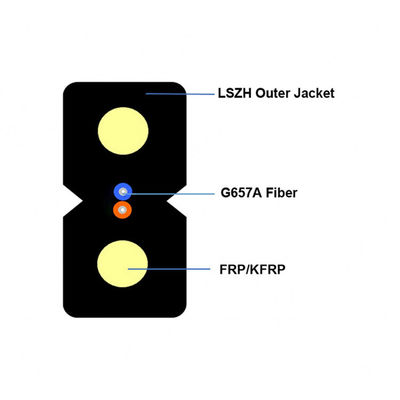

UT-King’s Indoor ftth drop cable used as connection part in last 1 kilometer between optical distribution point and users’ premise. Its compact structure provide the advantages of light weight and small size. In the middle of cable, it’s fiber, which can be 1-4 cores. On both sides, there’re two parallel steel wire(FRP) to strengthen tensile of cable; then, adding a self-supporting messenger. At last, sheathed with LSZH/PE/PVC material.





Features

  • Special low-ben-sensitivity fiber provides high bandwidth and excellent communication transmission property.
  • Two parallel FRP strength members ensure good performance of crush resistance to protect the fiber.
  • Single steel wire as the additional strength member ensures good performance of tensile strength.
  • Simple structure, light weight and high practicability.
  • Novel flute design easily strip and splice, simplify the installation and maintenance.
  • Low smoke, zero halogen and flame retardant sheath.



Application

  • Used in access network or as access cable from outdoor to indoor in customer premises .
  • Used as access building cable in premises distribution system,
  • Especially used in indoor or outdoor aerial access cabling.





Specification

Item 1fiber 2fibers 4fibers
Strength Member Material FRP/Wire FRP/Wire FRP/Wire
Strength Member Diameter(mm) 0.4 0.4 0.4
Sheath Thickness(mm) ≥0.40 ≥0.40 ≥0.40
Cable Diameter(mm) 2.0*3.0 2.0*3.0 2.0*3.0
Cable Weight(kg/km) 9.5 10 10.5
Operating Temperature Range(℃) -50~+70 -50~+70 -50~+70
Tensile Strength Short/Long term(N/100mm) 80/40 80/40 80/40
Crush Resistance Short/Long term(N/100mm) 1000/500 1000/500 1000/500
Min bending radius(mm) 10/25 30/60
Outer sheath PVC /LSZH/LLDPE More
Fiber count 1/2/4/8/12
Fiber Type G657A1/G657A2/G652D
Attenuation 1310nm 1550nm
Typical Max Typical Max
0.36/0.5 dB/km 0.22/0.4 dB/km





Detailed Images

12 Core Armoured Fiber Optic Cable FTTH Drop LSZH G657A1 012 Core Armoured Fiber Optic Cable FTTH Drop LSZH G657A1 112 Core Armoured Fiber Optic Cable FTTH Drop LSZH G657A1 2

FAQ

Q: Where is your factory located How can I visit there?
A: Our factory is located in Shenzhen City, Guangdong Province, China.All our clients, from home or abroad, are warmly welcome to visit us.

Q: How many years experience in producing?
A: More than 10 years,and our engineers have more than 10 years product experience.

Q: Can provide sample to us?
A: Yes,sample below 30m can be provided freely,but you need pay freight cost.

Q: How is quality for your fiber optic cable?
A: Firstly,we use top quality raw material(best fiber and friendly sheath material etc),Then surveyor will do the test,such as raw material quality test,fiber optic attenuation test and high or low temperature test etc.

Q: How to do if don't need your company brand name?
A: We have own factory,OEM is available;If need other brand name,it is okay.please give us letter of authorization.
