Product Details:
|
| Application: | FTTH FTTB FTTX Network | Product Name: | Fiber Optic Cable GYTY53 |
|---|---|---|---|
| Fiber Brand: | Corning/Yofc/LS | Central Strength: | 1.4mm Steel Wirest |
| Fiber Count: | 2-288 | Length: | 1km/roll/2km/roll |
| Package: | Wooden / Plywood Reel | Keywords: | GYTY53 |
| Loose Tube Material: | PBT | Jacket: | HDPE |
| Highlight: | PBT fiber optic Armored Cable,HDPE fiber optic Armored Cable,HDPE PBT Outdoor Underground Cable |
||

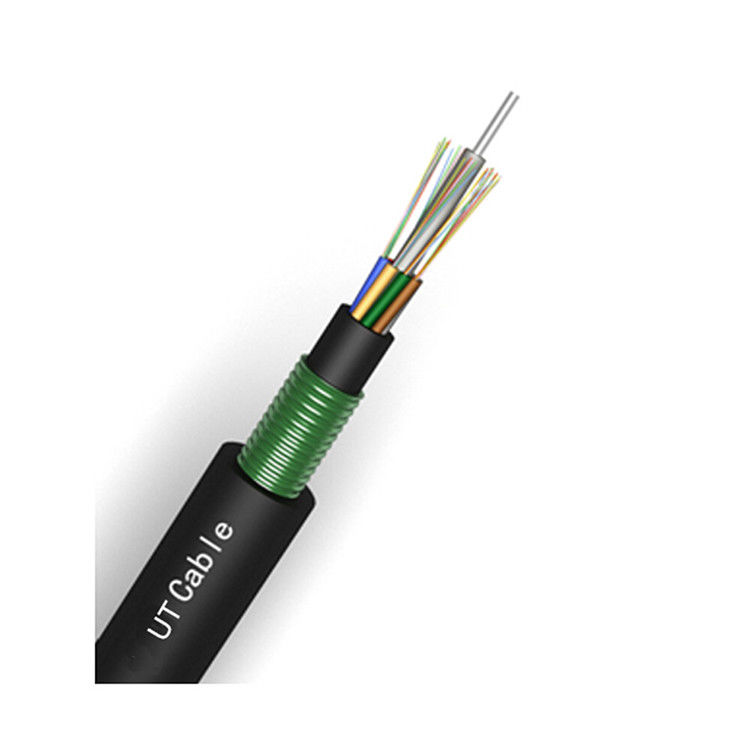

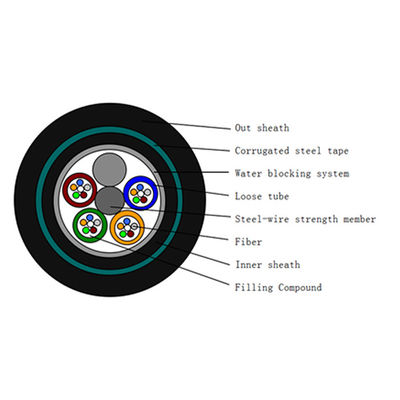

Fiber optic cable GYTY53, 2~288 fibers, central strength member (steel), jelly-filled, fiber contained loose tube and PP filler (if necessary) stranded, water blocking tape, PE inner sheath, longitudinally covered by copolymer coated steel tape, PE outer sheath. It is found in two different types: single-mode GYTY53 cable and multimode GYTY53 cables.GYTY53 fiber cable is stranded loose tube structure with steel tape double sheaths, the loose tube stranding technology makes the fibers have good secondary excess length and allow the fibers free movement in the tube, which keeps the fiber stress-free while the cable is subjected to longitudinal stress. GYTY53 cable is steel tape armored and double PE sheath providing excellent crush resistance and rodent resistance. Metal strength member provides excellent strain performance.
| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm | |
|
Attenuation (+20℃)
|
@850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ≤0.0.4dB/km | |||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200MHz·km | ||
| @1300nm | ≥1000MHz·km | ≥500MHz·km | |||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||
| Cable Cut-off Wavelength λ cc | ≤1260nm | ≤1480nm |
|
||
| 2-96 fibers | 98-288fibers | ||
| Max. Tension (N) | Short-term | 1500 | 3000 |
| Max. Tension (N) | Long-term | 600 | 1000 |
| Max. Crushing Resistance (N/100mm2) | 1000 | ||
| Temperature range(°C) | -40°C-- +70°C | ||
| Min. Bending Radius(mm) | Install | 20D | |
| Min. Bending Radius(mm) | Static | 10D | |
Q: Are you a manufacturer or a trading company?
A: We are a professional cable manufacturer with 30 years of production experience
Q: What are our payment terms?
A: Our payment terms are usually T / T 30% of the prepayment, ie the balance before pickup or the sight letter of credit.
Q. What is the delivery time?
A: The delivery time is usually 5-30 days. If the order quantity is large, the delivery time needs to be negotiated again.
Q: Can we provide customers with free samples?
Of course, we provide free samples for customers to check.
Q: Does your price include customs clearance at the destination, import tax, installation services?
A: Sorry, we currently only provide cables and provide transportation services in China. Both parties should re-quote and negotiate other services.
Q: What is your quality guarantee and deadline?
A: Each product will be inspected by professional testing equipment, and the product will be out of the warehouse after it is qualified. Usually, the warranty period is 18 months after delivery and 12 months after installation (whichever is earlier).
