FTTX Drop Core Fiber Optic Cable GYXTC8S 12 Core Figure 8 Central Loose Tube

Certification
China Shenzhen UT-King Technology Co., Ltd. certification
China Shenzhen UT-King Technology Co., Ltd. certification
I'm Online Chat Now

FTTX Drop Core Fiber Optic Cable GYXTC8S 12 Core Figure 8 Central Loose Tube

FTTX  Drop Core Fiber Optic Cable GYXTC8S 12 Core Figure 8 Central Loose Tube
FTTX  Drop Core Fiber Optic Cable GYXTC8S 12 Core Figure 8 Central Loose Tube FTTX  Drop Core Fiber Optic Cable GYXTC8S 12 Core Figure 8 Central Loose Tube

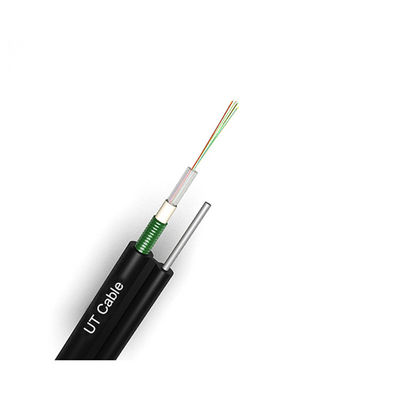

Large Image :  FTTX Drop Core Fiber Optic Cable GYXTC8S 12 Core Figure 8 Central Loose Tube

Product Details:
Place of Origin: china
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: GYXTC8S
Payment & Shipping Terms:
Minimum Order Quantity: 1km
Packaging Details: 1km/drum,2km/drum
Delivery Time: 3-7days
Payment Terms: T/T, Western Union
Supply Ability: 1000km /week

FTTX Drop Core Fiber Optic Cable GYXTC8S 12 Core Figure 8 Central Loose Tube

Description
Application: FTTH FTTB FTTX Network Product Name: Fiber Optic Cable GYTY53
Fiber Brand: Corning/Yofc/LS Fiber Options: ITU G652D ,G657A,OM1,OM2,OM3,OM4
Fiber Count: 12 Length: 1km/roll/2km/roll
Package: Wooden / Plywood Reel Keywords: GYTY53
Loose Tube Material: PBT Jacket: HDPE
High Light:

GYXTC8S FTTX Fiber Optic Cable

,

PBT HDPE Fiber Optic Cable

,

PBT HDPE drop core fiber optic

Outdoor FTTX 12 Core Single Mode Fiber Optic Cable GYXTC8S Cable Figure 8 Central Loose Tube Cable



Description

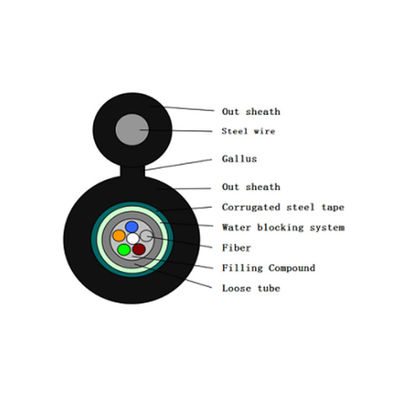

The GYXTC8S cable is constructed by inserting a 250μm fiber into a loose tube made of a high-modulus material filled with a water-repellent compound. The loose tube is coated with a double-sided plastic coat steel strip (PSP) longitudinally, and a water-blocking material is added between the steel strip and the loose tube to ensure compact and longitudinal water blocking of the cable, and the steel strand is integrated into an 8-shaped type. Inside the polyethylene sheath.



Features

  • The steel wire strand has a very high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs.
  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • PSP enhancing moisture-proof
  • Small diameter, light weight and easy to lay.
  • Long delivery length and low price





Specification

No. of cable 12
Fiber Model G.652D
Loose Tube Material PBT
Diameter (±0.06) mm 2.0
Thickness (±0.03) mm 0.32
The Max. Core NO./Tube 12
Strength Member (Material) Aramid Yarn
Ripcord (Material) Nylon
Outer Sheath Material MDPE
Thickness (±0.1) mm 1.2
Web Material MDPE
Size (±0.1) mm 2.0*1.5
Messenger Wire Material Galvanized steel wire
Size (±0.1) mm 2.77
Cable Diameter (±0.2) mm(W×H) 5.3x12.5
Cable Weight (±10) kg/km 82
Attenuation 1310 nm £0.35
1550 nm £0.21

Min. bending radius

Without Tension

Min. bending radius Min. bending radius
Without Tension Without Tension




Detailed Images

FTTX  Drop Core Fiber Optic Cable GYXTC8S 12 Core Figure 8 Central Loose Tube 0FTTX  Drop Core Fiber Optic Cable GYXTC8S 12 Core Figure 8 Central Loose Tube 1

FAQ

Q: Are you a manufacturer or a trading company?

A: We are a professional cable manufacturer with 30 years of production experience



Q: What are our payment terms?

A: Our payment terms are usually T / T 30% of the prepayment, ie the balance before pickup or the sight letter of credit.



Q. What is the delivery time?

A: The delivery time is usually 5-30 days. If the order quantity is large, the delivery time needs to be negotiated again.



Q: Can we provide customers with free samples?

Of course, we provide free samples for customers to check.



Q: Does your price include customs clearance at the destination, import tax, installation services?

A: Sorry, we currently only provide cables and provide transportation services in China. Both parties should re-quote and negotiate other services.



Q: What is your quality guarantee and deadline?

A: Each product will be inspected by professional testing equipment, and the product will be out of the warehouse after it is qualified. Usually, the warranty period is 18 months after delivery and 12 months after installation (whichever is earlier).
