Product Details:
|
| Application: | Direct Buried | Product Name: | Fiber Optic Cable GYTA53 |
|---|---|---|---|
| Fiber Brand: | Corning/Yofc/LS | Fiber Type: | Single Mode |
| Fiber Count: | 2-96cores | Length: | 1km Or 2km |
| Package: | Wooden Drum | Keywords: | GYTA53 |
| Jacket Material: | LSZH HDPE | ||
| High Light: | GYTA53 Armored loose tube fiber,LSZH loose tube fiber,LSZH loose tube fiber cable |
||

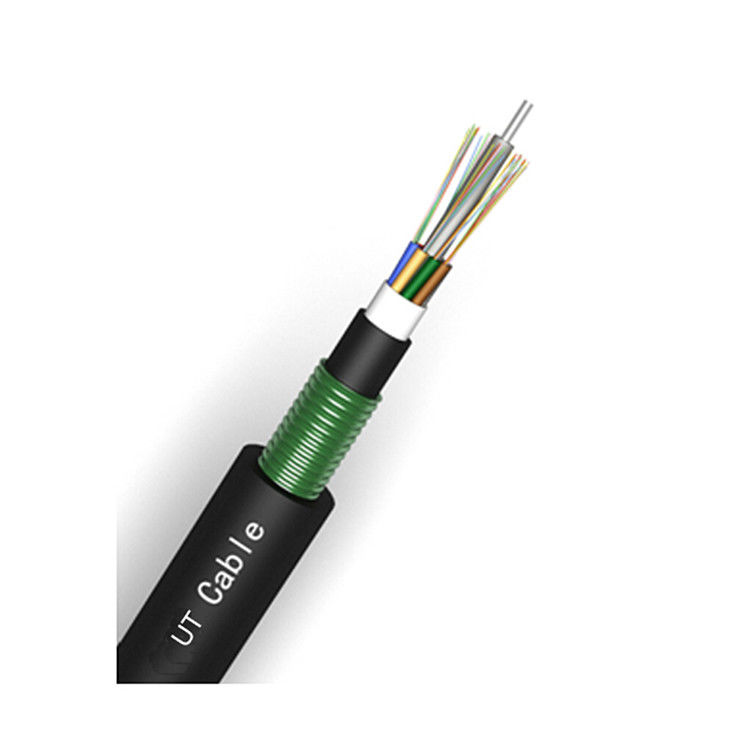

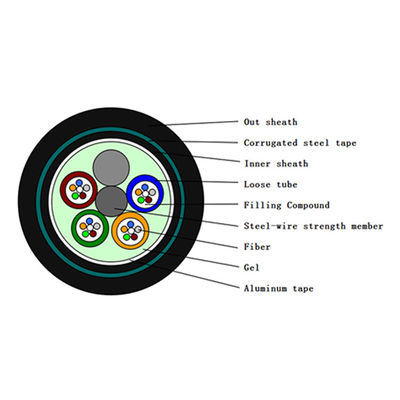

In the GYTA53 cable, single-mode/multimode fiber are positioned in the loose tubes, which are made of high modulus plastic materials, while the loose tubes strand together around metallic central strength member into a compact and circular cable core. For certain high fiber count cables, the strength member would be covered with polyethylene (PE). The water-blocking materials are distributed into interstices of the cable core, and the Aluminum Polyethylene Laminate (APL) is longitudinally applied around the cable core before a PE sheath is extruded over it, then corrugated steel tape and outer sheath are applied finally.
| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm | |
|
Attenuation (+20℃)
|
@850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||
| @1310nm | ≤0.36 dB/km | ||||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||
| @1300nm | ≥1000MHz·km | ≥500 MHz·km | |||
| Item | Contents | Value | ||||
| Fiber Count | 4~12 | 24 | 48 | 72 | 96 | |
| Loose Tube | No of tubes*fibers per tube | 1 | 2*12 | 4*12 | 6*12 | 8*12 |
| Outer Diameter(mm) | 1.9 | 2 | ||||
| Central Strength Member | Material | STEEL WIRE | ||||
| Diameter(mm) | 0.8~1.2 | |||||
| Moisture-proof | Material | Cable filling compound | ||||
| Armor | Material | Laminated aluminum tape | ||||
| Sheath | Thickness(mm) | Nominal:1.8 | ||||
| Cable Diameter(mm) Approx | 10.0~13.5 | |||||
| Cable Weight (KG/KM) Approx | 80~160 | |||||
| Operating Temperature Range(°C) | —40~+70 | |||||
| Tensile Strength Short/Long Term(N) | 2000/600 | |||||
| Crush Resistance Short/Long Term(N/100mm) | 1000/300 | |||||
Q: Are you a manufacturer or a trading company?
A: We are a professional cable manufacturer with 30 years of production experience
Q: What are our payment terms?
A: Our payment terms are usually T / T 30% of the prepayment, ie the balance before pickup or the sight letter of credit.
Q. What is the delivery time?
A: The delivery time is usually 5-30 days. If the order quantity is large, the delivery time needs to be negotiated again.
Q: Can we provide customers with free samples?
Of course, we provide free samples for customers to check.
Q: Does your price include customs clearance at the destination, import tax, installation services?
A: Sorry, we currently only provide cables and provide transportation services in China. Both parties should re-quote and negotiate other services.
Q: What is your quality guarantee and deadline?
A: Each product will be inspected by professional testing equipment, and the product will be out of the warehouse after it is qualified. Usually, the warranty period is 18 months after delivery and 12 months after installation (whichever is earlier).
