Product Details:
|
| Application: | FTTH | Color: | Black |
|---|---|---|---|
| Connector: | E2000 UPC E2000 APC | Product Name: | E2000 Patch Cord |
| Length: | 1m/3m/5m/10m Customized | Cable Diameter: | 0.9mm/2.0mm/3.0mm |
| Cable Jacket: | LSZH | Insertion Loss (dB): | ≤0.2 (max≤0.3) |
| High Light: | fc E2000 Fiber Optic Patch Cord,3m UPC Fiber Optic Patch Cord,fc 3m UPC sc lc patch cord |
||

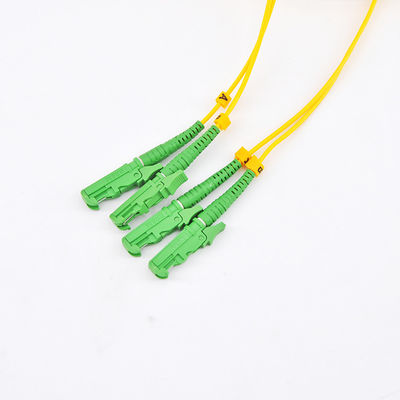

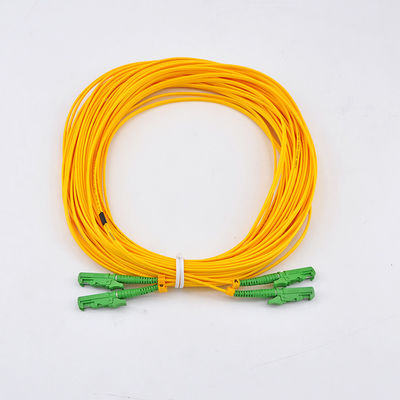

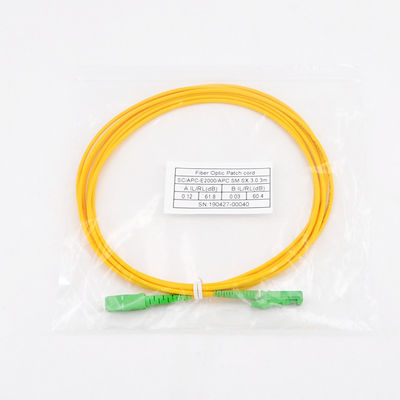

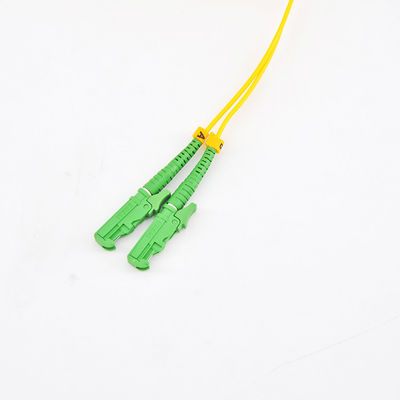

UT-King’s E2000/ Optical Fiber Patch Cord, also called E2000/UPC Multimode Optical Fiber Jumper. It refers to the e2000 connector plug at both ends of the optical fiber cable, with UPC polishing type. E2000/UPC Multimode Optical Fiber Patch Cord is widely use in optical path connection, suitable OM1, OM2,OM3,OM4 etc. E2000 fiber jumper has low insertion loss (≤0.25dB) and high return loss (≥45dB). The product adopts imported ceramic ferrule, repeatability is more than 1000 times, and the stability is good. E2000/UPC Multimode Optical Fiber Patch Cord is easy to operate, when the connector is inserted into the locking device is completely locked, pull out the spring valve can be automatically closed. The feature of this connector is to protect pins from contamination and wear. All our fiber optic patch cords are 100% tested before package. Each patch cord is packed individually in a inner bag. In Teleweaver, we are professional in supplying customers over the globe with customized high quality fiber patch cables at low cost. SC/ FC/ LC/ MU/ ST/ MPO …more connectors can be customize, UPC/ APC/ PC polishing type. The connections at both ends of optical fiber cable can be the same or different. Free sample can be provided for testing.
|
|
SM- PDLC-LC/UPC | SM- PDLC-LC/APC | MM- PDLC-LC/PC | |||||||
| Typical | MAX | Typical | MAX | Typical | MAX | |||||
| Insertion loss | ≤0.1dB | ≤0.3dB | ≤0.15dB | ≤0.3dB | ≤0.05dB | ≤0.3dB | ||||
| Return loss | ≥50dB | ≥60dB | ≥35dB | |||||||
| Durability | 500 mating cycles | |||||||||
| StorageTemp(℃) | +40 to + 85℃ | |||||||||
| Fiber type | Single mode | G652D | G655 | 9/125-G657A,G657A2 | 9/125-G657B3 | |||||
| Multimode | 50/125 | 62.5/125 | 50/125-OM3 | 50/125-OM4 | 50/125-OM5 | |||||
| Fiber Brand | YOFC, Corning, Sumitomo, Fujikura | |||||||||
| Cord type | 2 Cores | |||||||||
| Cable diameter | 5.0mm ,7.0mm | |||||||||
| Cable jacket | PVC, OFNR, LSZH, Armored | |||||||||
| length(M) | 0.5m,1m,2m,5m,10m,25m,50m,100m…Customized | |||||||||
Q. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
