Simplex Multimode Patch Cord Single LX.5 OM2 Black 0.2 DB

Simplex Multimode Patch Cord Single LX.5 OM2 Black 0.2 DB
Simplex Multimode Patch Cord Single LX.5 OM2 Black 0.2 DB Simplex Multimode Patch Cord Single LX.5 OM2 Black 0.2 DB Simplex Multimode Patch Cord Single LX.5 OM2 Black 0.2 DB Simplex Multimode Patch Cord Single LX.5 OM2 Black 0.2 DB

Large Image :  Simplex Multimode Patch Cord Single LX.5 OM2 Black 0.2 DB

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: LX.5 Patch Cord
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/box
Delivery Time: 3-5days
Supply Ability: 1000PCS/Week

Simplex Multimode Patch Cord Single LX.5 OM2 Black 0.2 DB

Description
Application: FTTH Color: Black
Connector: LX.5 Product Name: LX.5 Patch Cord
Length: 1m/3m/5m/10m Customized No. Of Fiber: 1
Multi Mode Type: OM1/OM2/OM3/OM4 Single Mode Type: G657A1/G657A2
Cable Diameter: 2.0mm Cable Jacket: LSZH
High Light:

Simplex multimode patch cord

,

OM2 multimode patch cord

,

OM2 single mode patch cord

2.0mm LX.5 Patch Cord Simplex Single Mode Multimode Optic Fiber Patch Cord Fiber Optic LX.5 Connector




Description

UT-King’s LX.5 fiber optic patch cables use the 1.25mm ferrule technologies, in this way the LX.5 fiber connector is compact and as small size as the LC connectors. The LX5 fiber connector has a shutter over the end of optical fiber, the specification of LX-5 fiber cables and connectors are defined as per TIA connector intermate ability standard FOCIS-13 (TIA-604-13). the huihongfiber LX.5 units maintain single circuit access and integrate special shutters on both the connector and coupler body to protect them from dust, dirt, and ferrule end-face handling damage.

LX.5 fiber optic patch cables are generally used in CATV, Ethernet and other telecom networks, huihongfiber has the single mode and multimode LX.5 fiber patch cords, with UPC or APC polished connectors, fully compatible with the LX5 connection standards but save you much of the cost.

Features

  • Compliant with TIA/EIA 568-A & RoHS standards
  • Plug type, keying coupling structure
  • Strong interchangeability
  • Dust cap since closed
  • Squared has good mechanical and thermal properties to meet Telcordia GR – 326 – CORE.



Specification

Item
SM
MM
Polishing Type
PC
UPC
APC
/
Insertion Loss
≤0.3dB
≤0.3dB
Customize
Return Loss
/
≤-50dB
≤-60dB
/
Customize
Durability
0.2 dB Max. Increase
Operating Temperature
-20℃~+70℃
Storage Temperature
-20℃~+70℃

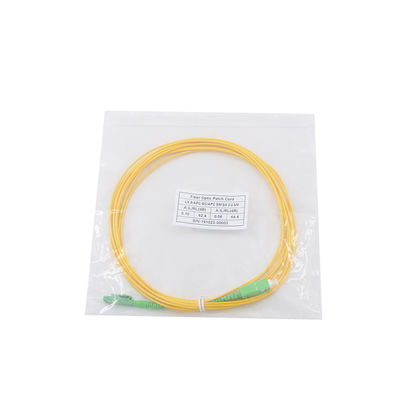

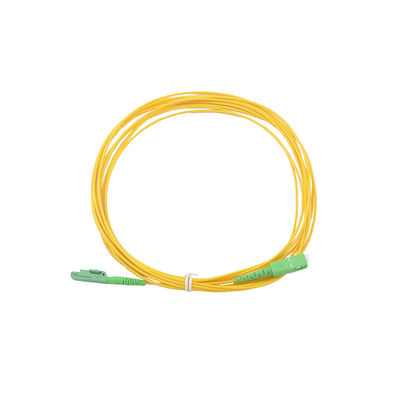

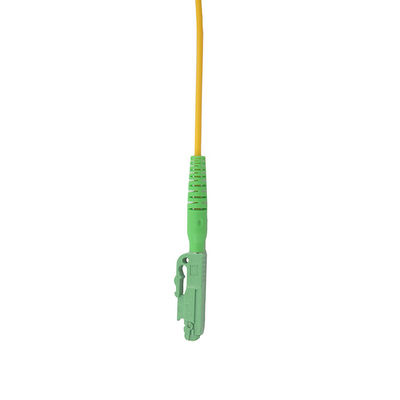

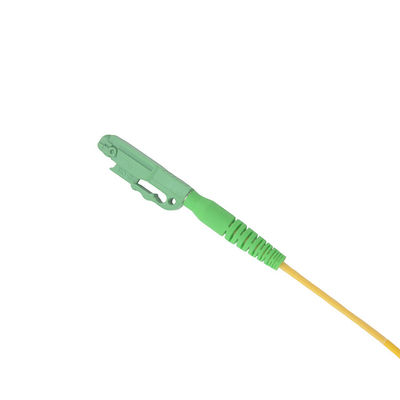

Detailed Images

Simplex Multimode Patch Cord Single LX.5 OM2 Black 0.2 DB 0Simplex Multimode Patch Cord Single LX.5 OM2 Black 0.2 DB 1Simplex Multimode Patch Cord Single LX.5 OM2 Black 0.2 DB 2Simplex Multimode Patch Cord Single LX.5 OM2 Black 0.2 DB 3

FAQ

Q. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.


Q. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available


Q. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.


Q. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
