Product Details:
|
| Application: | FTTH | Connector: | MTRJ |
|---|---|---|---|

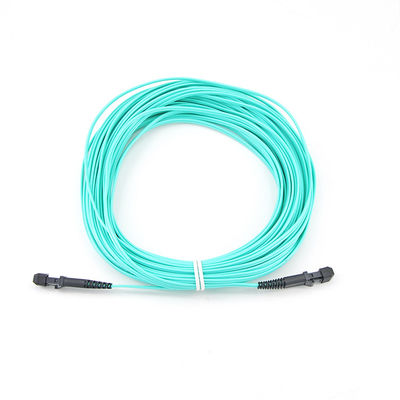

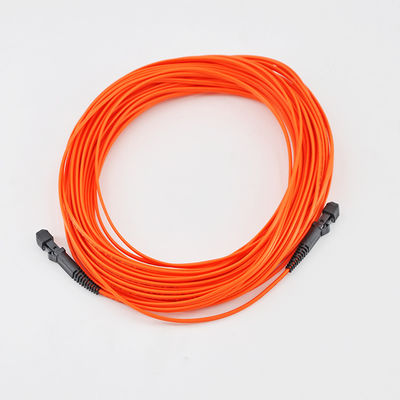

| Product Name: | MTRJ To MTRJ Fiber Optic Cable | Length: | 1m/3m/5m/10m Customized |
| No. Of Fiber: | 1 | Multi Mode Type: | OM1/OM2/OM3/OM4 |
| Cable Diameter: | 2.0mm | Cable Jacket: | LSZH |
| High Light: | 62.5 lc fiber patch cable,2.0mm lc fiber patch cable,2.0mm sc fiber patch cord |
||
UT-King’s Precision crafted MTRJ connectors for compact, high cable density environments. A 50/125um multimode optical patch cord for your fiber optic ethernet network. Wrapped in a durable, orange colored 2.0mm outer diameter, OFNR riser rated PVC jacket. Typically used for vertical pathways, shafts, and spaces between building floors.
Each fiber optic cable ordered from FiberCablesDirect is individually tested and bagged with test results inside. We also provide a Lifetime warranty on all our products. Orders for Om2 mtrj mtrj 50/125 multimode duplex cables above 35 meters may require an additional 1 to 2 days to ship depending on the quantity ordered. However, most orders ship within 24 hours or less.
| Product Type | Fiber Optic Patch Cord |
| Cable Type | Male to Male Pre-terminated Fiber Optic Jumpers / Fibre Network Patch Cables |
| Termination | MTRJ to MTRJ Fiber Optic Cable |

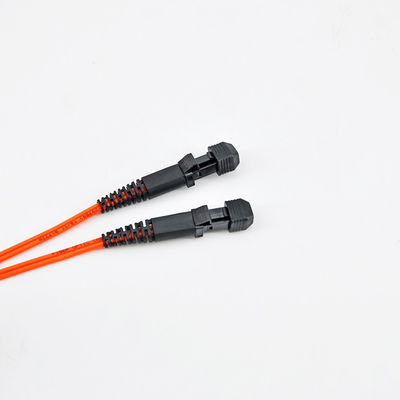

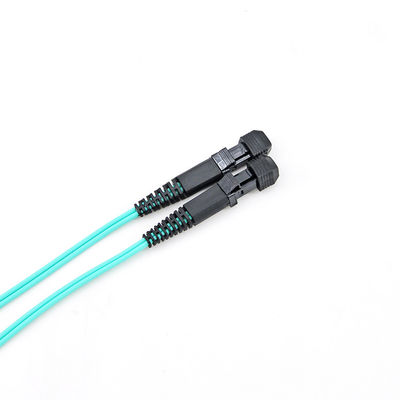

| Connector 1 | MTRJ Duplex, a duplex connector with both fibers in a single polymer ferrule. |
| Polish Connector 1 | UPC (Ultra Physical Contact) |
| Connector 2 | MTRJ Duplex, a duplex connector with both fibers in a single polymer ferrule. |
| Polish Connector 2 | UPC (Ultra Physical Contact) |
| Max Connector Loss | 0.50 dB |
| Typical Connector Loss | 0.30 dB |
| Typical Return Loss | -25 dB |
| Core Material | Corning Optical Fiber - Corning invented low-loss, high bandwidth, optical fiber and continues to deliver innovative glass solutions for fiber optic cables. |
| Mode Type | Multimode - Used for high speed fiber optic networking applications in buildings, datacenters, telecommunications, etc, also referred to as MM, MMode |
| 1Gb Ethernet Dist | OM2 Distance is 600 Meters at 850 nm / 600 Meters at 1310 nm |
| 10Gb Ethernet Dist | OM2 Distance is 82 Meters at 850 nm / 300 Meters at 1310 nm |
| Bandwidth | OM2 GbE LAN Fiber - 500MHz-km @850nm, 500MHz-km @1300nm. |
| Strand Count | 2 Fiber Strands |
| Jacket Color | Orange - This is the standard jacket color for OM1/OM2 multimode fiber jumper cords / fiber patch cables. |
| Jacket Material | PVC (polyvinyl chloride) - Fire-retardant and very flexible for easy installation |
| Jacket OD | 2.0mm Outer Diameter Jacket |
| UL Rating: | OFNR (Optical fiber, nonconductive, riser) - Certified for use in riser, backbone, fiber only applications, riser rated for vertical runs |
| Compliance | ROHS Compliant |
Q. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available.
Q. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
