Product Details:
|
| Application: | FTTH | Color: | Black |
|---|---|---|---|
| Connector: | ODVA | Product Name: | ODVA Patch Cord |
| Length: | 1m/3m/5m/10m Customized | No. Of Fiber: | 2 |
| Multi Mode Type: | OM1/OM2/OM3/OM4 | Single Mode Type: | G657A1/G657A2 |
| Cable Diameter: | 5.0/7.0mm | Cable Jacket: | LSZH |
| High Light: | fc ODVA Fiber Optic Patch Cord,Duplex IP67 Fiber Optic Patch Cord,Duplex IP67 mpo fiber patch cord |
||

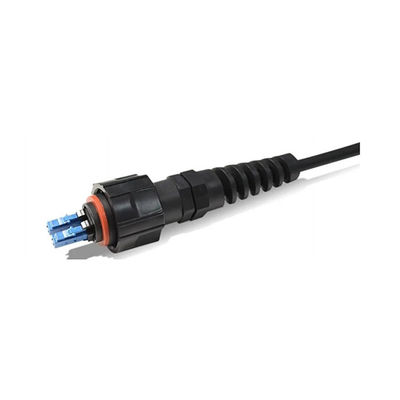

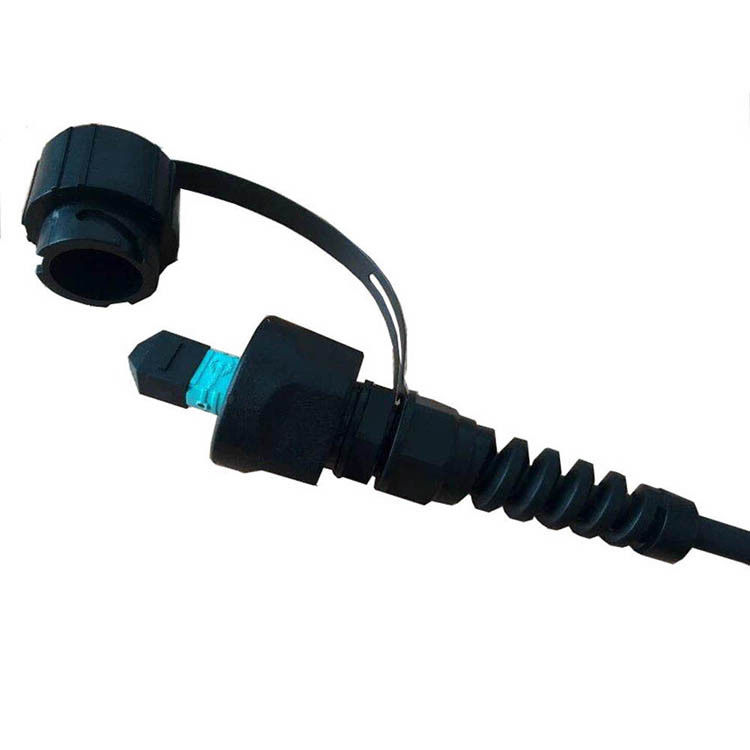

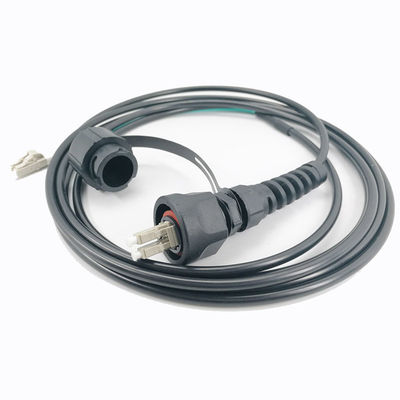

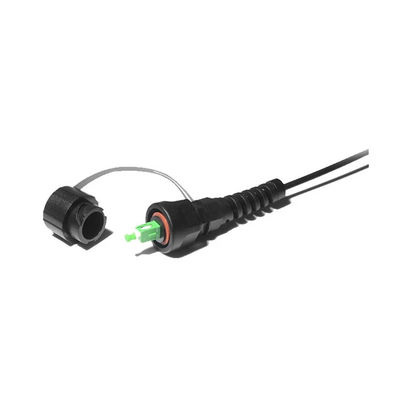

UT-King’s ODVA waterproof long time service life patch cables are ideal solution for the FTTA and FTTH with its rugged design IP67 Grade. More than that, it also widely been used in Automation, industry cabling, CCTV, naval and Broadcasting due to with features such corrosion resistance, waterproof, anti-shock, anti-vibration to meet the challenge environment.
Our ODVA Patch Cable is for CPRI application , that widely used in 3G,4G and WIMAX base station, Long term Evolution(LTE),and Remote Radio Units to the FTTA connectivity.ODVA Patch cables, together with IP-67 rated compact RRH/RRU Helix cover connectors that have fast coupling these patch cables are always sealed with rugged fiber terminal junction boxes tat meet the requirements of more antennas on a wireless tower. With the development of distributed antenna ODVA systems(DAS), connectors has become a standard interface for the new generation wireless base station linked to the FTTA equipment that set up outdoor environment.
| Parameters | LC | SC | MPO | ||||||||
| PC | UPC | APC | APC | UPC | PC | APC | PC | ||||
| Mode | SM | MM | SM | MM | SM | SM | SM | MM | SM | SM | MM |
| Insertion loss (dB) | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 |
| Return loss (dB) | ≥55 | ≥35 | ≥55 | ≥35 | ≥60 | ≥60 | ≥55 | ≥35 | ≥50 | ≥60 | ≥35 |
| Repeatability (dB) | ≤0.1 | ||||||||||
| Interchangeability(dB) | ≤0.2 | ||||||||||
| Service life | >500times | ||||||||||
| Tensile strength | >10kg | ||||||||||
| Operating Temp(℃) | -30℃ ～+70℃ | -10℃ ～+70℃ | |||||||||
| Storage Temp(℃) | -40℃ to +80℃ | ||||||||||
| Fiber type | Single mode | G652D | G655 | G657A,G657A2 | G657B3 | |
| Multimode | 50/125-OM2 | 62.5/125-OM1 | 50/125-OM3 | 50/125-OM4 | 50/125-OM5 | |
| Fiber Brand | YOFC, Corning, Sumitomo, Fujikura | |||||
| Connector | Duplex LC, SC ,MPO,MTP | |||||
| Cord type | 2 Cores | |||||
| Cable diameter | 5.0mm 7.0mm | |||||
| Cable jacket | PVC, OFNR, LSZH, Armorde | |||||
| length | 0.5m,1m,2m,5m,10m,25m,50m,100m…Customized | |||||
Q. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available.
Q. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
