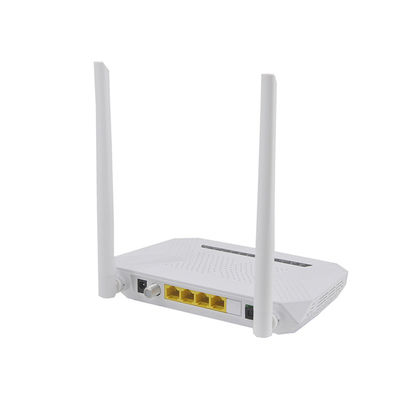

Product Details:
|
| Product Name: | XPON ONU | Brand: | UT-King |
|---|---|---|---|
| Function: | 1ge+3fe+1tel+CATV+wifi | Wavelength: | Tx 1310nm, Rx1490nm |
| Name: | XPON ONU | Applications Distance: | 20km |
| Chipset: | RTL9603C+RTL8192FR+LE9643 BOB(i7525BN) | External Power Supply: | DC 12V/1A |
| Optical Interface: | SC APC | Chip Spec: | CPU 950MHz,DDR2 128MB |
| Flash: | SPI NAND Flash 128MB | ||
| High Light: | dc 3FE fiber optic network router,12v 1POTS fiber optic network router,12v 1POTS gpon optical network terminal |
||
| Technical item | Details |
|
PON Interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) |

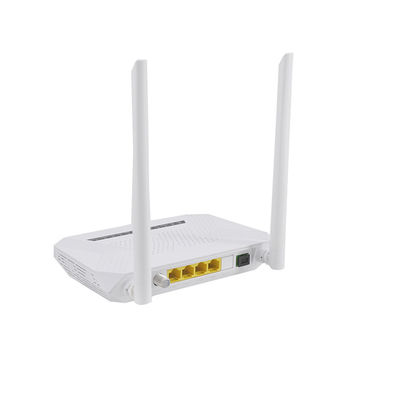

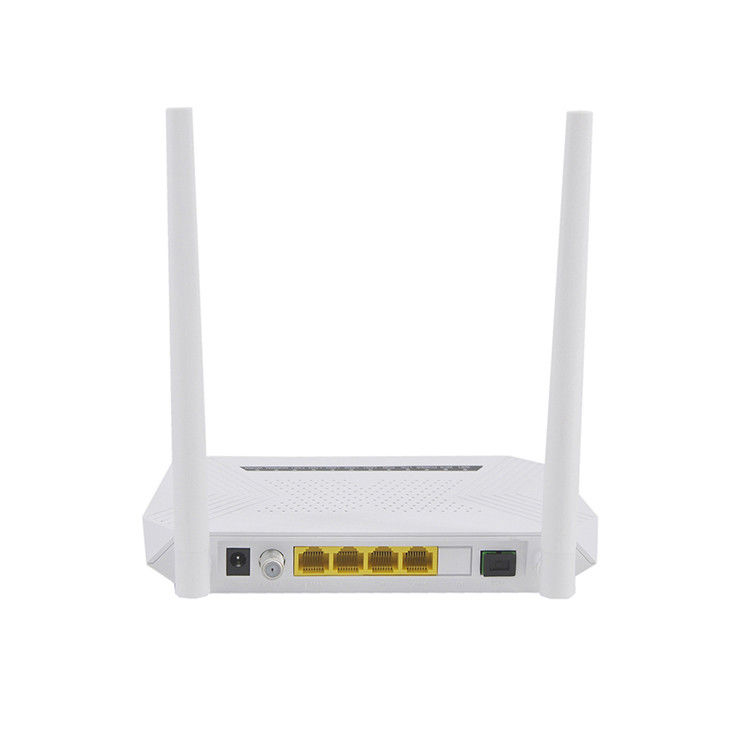

| Receiving sensitivity: ≤-27dBm | |
| Transmitting optical power: 0~+4dBm | |
| Transmission distance: 20KM | |
| Wavelength | Tx: 1310nm, Rx: 1490nm |
| Optical Interface | SC/APC Connector |
| LAN Interface | 1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
|

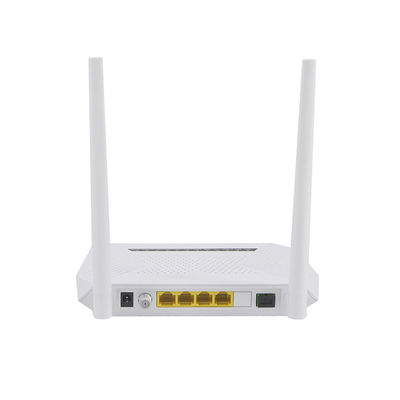

CATV Interface |
RF, optical power : +2~-18dBm |
| Optical reflection loss: ≥45dB | |
| Optical receiving wavelength: 1550±10nm | |
| RF frequency range: 47~1000MHz, RF output impedance: 75Ω | |
| RF output level: 78dBuV | |
| AGC range: 0~-15dBm | |
| MER: ≥32dB@-15dBm | |
|
Wireless |
Compliant with IEEE802.11b/g/n, |
| Operating frequency: 2.400-2.4835GHz | |
| support MIMO, rate up to 300Mbps, | |
| 2T2R,2 external antenna 5dBi, | |
| Support: Multiple SSID | |
| Channel: Auto | |
| Modulation type: DSSS, CCK and OFDM | |
| Encoding scheme: BPSK, QPSK, 16QAM and 64QAM | |
| LED |
13, For Status of POWER, LOS, PON, SYS, LAN1~LAN4 ,WIFI, WPS, Internet, Worn, Normal(CATV) |

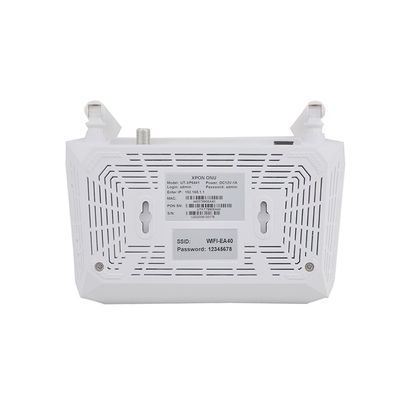

| Push-Button | 3,For Function of Reset, WLAN, WPS |
| Operating Condition | Temperature: 0℃~+50℃ |
| Humidity: 10%～90%(non-condensing) | |
| Storing Condition | Temperature: -30℃~+60℃ |
| Humidity: 10%~90%(non-condensing) | |
| Power Supply | DC 12V/1A |
| Power Consumption | ≤6W |
| Dimension | 155mm×92mm×34mm(L×W×H) |
| Net Weight | 0.24Kg |
| Pilot Lamp | Status | Description |
|
|
On | The device is powered up. |
| Off | The device is powered down. | |
|
|
On | The device has registered to the PON system. |
| Blink | The device is registering the PON system. | |
| Off | The device registration is incorrect. | |
|
|
Blink | The device doses not receive optical signals. |
| Off | The device has received optical signal. | |
|
|
On | The device system runs normally. |
| Off | The device system runs abnormally. | |
|
|
Blink | The device network connection is normal. |
| Off | The device network connection is abnormal. | |
|
|
On | The WIFI interface is up. |
| Blink | The WIFI interface is sending or/and receiving data (ACT). | |
| Off | The WIFI interface is down. | |
|
WPS |
Blink | The WIFI interface is securely establishing a connection. |
| Off | The WIFI interface does not establish a secure connection. | |
|
|
On | Port (LANx) is connected properly (LINK). |
| Blink | Port (LANx) is sending or/and receiving data (ACT). | |
| Off | Port (LANx) connection exception or not connected. | |
| Worn (CATV) | On | Input optical power is higher than 3dbm or lower than -13dbm |
| Off | Input optical power is between -13dbm and 3dbm | |
| Normal (CATV) | On | Input optical power is between -13dbm and 3dbm |
| Off | Input optical power is higher than 3dbm or lower than -13dbm |
