Product Details:
|
| Insertion Loss: | ≤0.2db | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Connector Type: | SC | Return Loss: | ≤55db |
| Color: | Green/Blue | Product Name: | SC Fast Connector |
| Fiber Type: | SM | Operating Temperature: | -40 To +85 Degree |
| Durability: | ≤ 0.25db Typical Change | Certification: | ISO9001,RoHS,CE,SGS |
| Name: | Fast Connector | Connector: | Fast Connector SC |
| Fiber Cable Type: | 3x2mm Flat Cable | Length: | 60mm |
| High Light: | Mountable fiber patch cord connector types,Anatel fiber patch cord connector types,Anatel sc type connector |
||

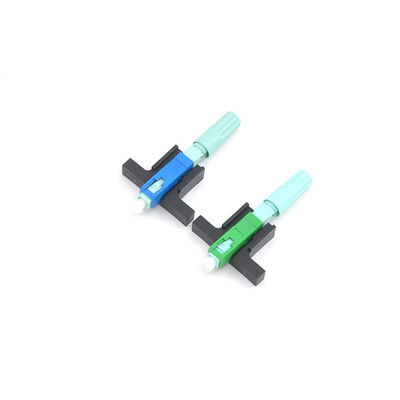

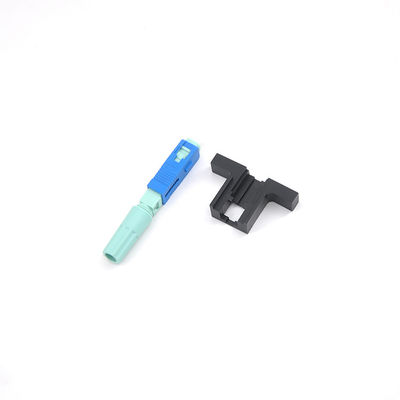

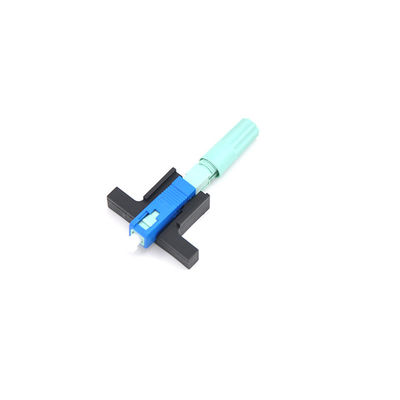

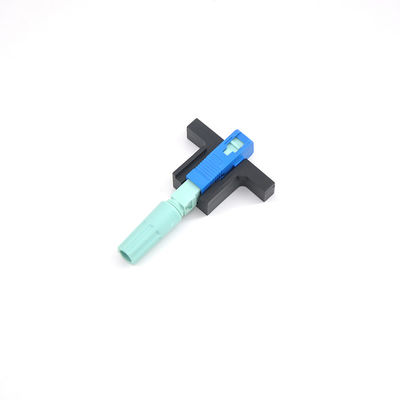

The SC fast connector SC01 is the most popular type of fast connector in the market, which features a pre-polished ferrule that couples to the fiber being terminated by precision mechanical alignment, insuring low loss with a proprietary gel.This SC Fast Connector offers convenience in assembling and strong stability. It allows simple optical core connection without any additional practices, or adhesives. It does not require a working space by connecting itself in the challenging environments such as a telephone pole and a manhole. It reconnects the cables and reduces the connection defect rate by an installer error in the field.
It is widely used in FTTH project,as well as fiber optic transmission lines, fiber optic distribution frames and fiber optic testing instruments
We are here to supply the most exclusive product at reasonable prices. Also, our FC field assembly connector is famous by the first-class features especially efficiency and user-friendliness.
A pre-polished ferrule in our fast connector is suitable for the couple the fiber and ensure low loss because of the proprietary gel. As a result, our clients feel convenient while assembling this fast connector. They feel satisfied with the strong stability of this product.
| Model No. | UT-SC6003 |
| Connector Type | UPC/APC |
| Length | 60mm |
| Applicable for | Drop cable.Indoor cable |
| Fiber mode | Single mode or Multi mode |
| Operation time | About 50s(no fiber cut) |
| Insertion Loss | ≤0.2dB |
| Insertion Loss Typical value | 0.2dB |
| Return Loss | ≥50dB UPC ≥55dB APC |
| Fastening strength of naked fiber | ≥5N |
| Tensile strength | ≥50N |
| Reusable | ≥10 times |
| Operating Temperature | -40～+85℃ |
