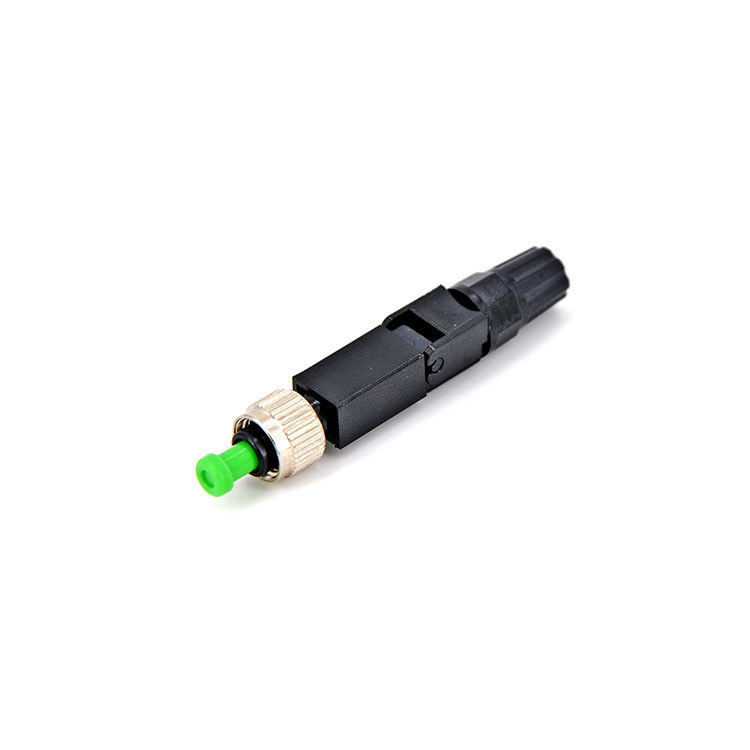

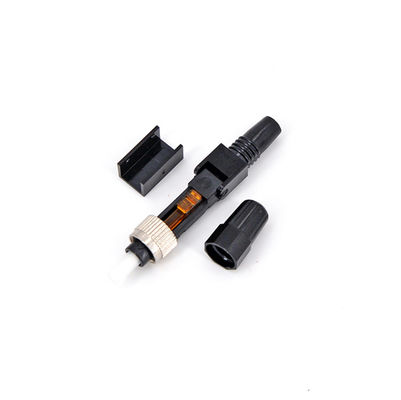

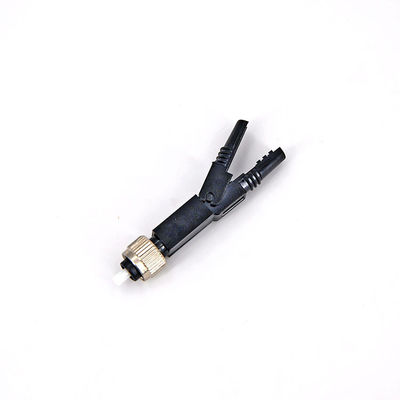

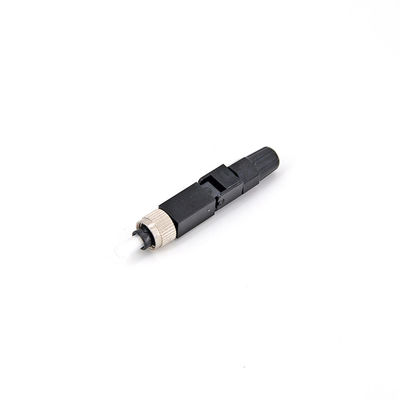

FC 6001 Fiber Optic Fast Connector Cable Pre Polished Ferrule Field Assembly

FC 6001 Fiber Optic Fast Connector Cable Pre Polished Ferrule Field Assembly
FC 6001 Fiber Optic Fast Connector Cable Pre Polished Ferrule Field Assembly FC 6001 Fiber Optic Fast Connector Cable Pre Polished Ferrule Field Assembly FC 6001 Fiber Optic Fast Connector Cable Pre Polished Ferrule Field Assembly FC 6001 Fiber Optic Fast Connector Cable Pre Polished Ferrule Field Assembly

Large Image :  FC 6001 Fiber Optic Fast Connector Cable Pre Polished Ferrule Field Assembly

Product Details:
Place of Origin: china
Brand Name: UT-King
Certification: CE,ROSH,iso9001
Model Number: FC6001
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Packaging Details: 1pcs 1 bag,100pcs/1 box.1000 pcs/carton
Delivery Time: 3-5days
Payment Terms: T/T, Western Union,credit card
Supply Ability: 10000pcs/week

FC 6001 Fiber Optic Fast Connector Cable Pre Polished Ferrule Field Assembly

Description
Insertion Loss: ≤0.2db Application: FTTH FTTB FTTX Network
Connector Type: FC Return Loss: Upc≤45db,Apc≤55db
Color: Green/Blue Product Name: FC Fast Connector
Fiber Type: SM Operating Temperature: -40 To +85 Degree
Durability: ≤ 0.25db Typical Change Certification: ISO9001,RoHS,CE,SGS
Name: Fast Connector Connector: Fast Connector FC
Fiber Cable Type: 3x2mm Flat Cable Length: 60mm
High Light:

FC 6001 Fiber Optic Fast Connector

,

0.2db Fiber Optic Fast Connector

,

0.2db Fiber Optic Cable Connector

Pre-Polished Ferrule Field Assembly Connector FC Fast Connector Fiber Optic Cable Connector

Description

The FC fast connector feature a pre-polished ferrule that couples to the fiber being terminated by precision mechanical alignment, insuring low loss with a proprietary gel.This Fast Connector offers convenience in assembling and strong stability. It allows simple optical core connection without any additional practices, or adhesives. It does not require a working space by connecting itself in the challenging environments such as a telephone pole and a manhole. It reconnects the cables and reduces the connection defect rate by an installer error in the field.

The UT-King Pre-Polished Ferrule Field Assembly Connector FC Fast Connector Fiber Optic Cable Connectorseries are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself to be the connector of choice by incumbents, municipalities, utilities & alternative carriers. Our Field Assembly Connector series are now available in SC,and FC variants, catering for 250um to 900um, and 2.0mm, 3.0mm diameter single mode and multimode fiber types. The single-mode versions are available with UPC or APC ferrules.

Features

  • Simple design for easy Operation.
  • Applied to 3.1 x 2.0 mm Drop Cable and 2.0/3.0mm indoor cable FC UPC and APC type.
  • Fiber Pre-Embedded Tech with superior ceramic ferrule and V-groove.
  • Average Insertion loss: <0.3dB (Typical 0.2dB ), Return loss: >50dB, Repeatability: >5 times

Specification

Model No. UT-FC6001
Connector Type UPC/APC
Length 55mm/60mm
Applicable for Drop cable.Indoor cable
Fiber mode Single mode
Operation time About 50s(no fiber cut)
Insertion Loss ≤0.3dB
Insertion Loss Typical value 0.2dB
Return Loss ≥50dB UPC ≥55dB APC
Fastening strength of naked fiber ≥5N
Tensile strength ≥40N
Reusable ≥10 times
Operating Temperature -40~+85℃



FC 6001 Fiber Optic Fast Connector Cable Pre Polished Ferrule Field Assembly 0FC 6001 Fiber Optic Fast Connector Cable Pre Polished Ferrule Field Assembly 1FC 6001 Fiber Optic Fast Connector Cable Pre Polished Ferrule Field Assembly 2FC 6001 Fiber Optic Fast Connector Cable Pre Polished Ferrule Field Assembly 3
