Product Details:
|
| Insertion Loss: | ≤0.2db | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Connector Type: | SC | Return Loss: | Upc≤45db,Apc≤55db |
| Color: | Green/Blue | Product Name: | SC Fast Connector |
| Fiber Type: | SM | Operating Temperature: | -40 To +85 Degree |
| Durability: | ≤ 0.25db Typical Change | Certification: | ISO9001,RoHS,CE,SGS |
| Name: | Fast Connector | Connector: | Fast Connector SC |
| Fiber Cable Type: | 3x2mm Flat Cable | Length: | 50mm |
| High Light: | SC 5008 Fiber Optic Fast Connector,20N Fiber Optic Fast Connector,20N fiber optical adapter |
||

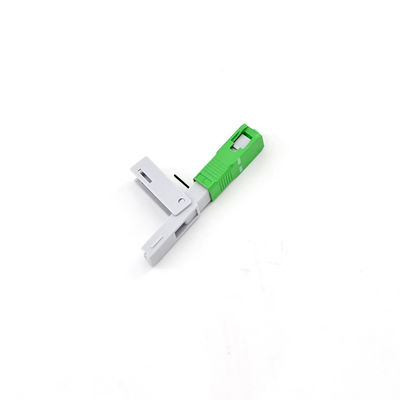

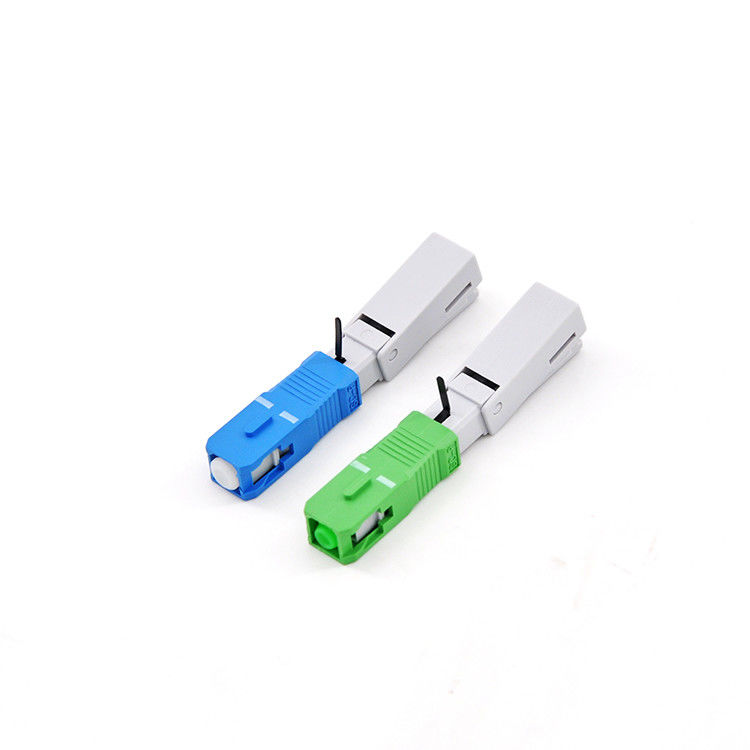

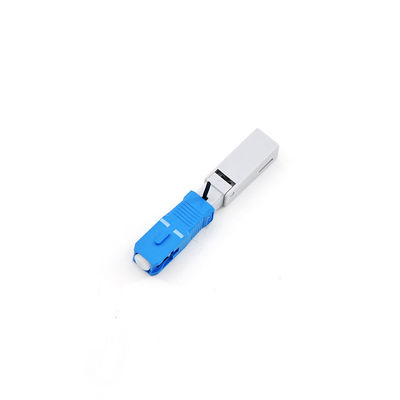

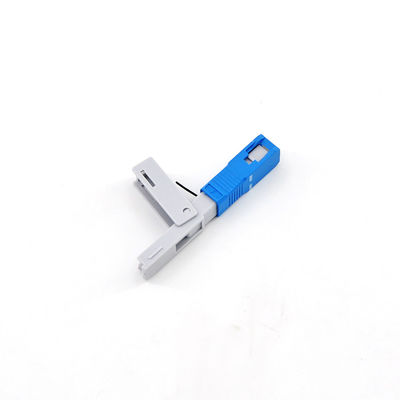

UT-King Fiber Optic fast Connector field-installable connectors are factory pre-polished connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers.
UT-King's fast Connector connectors are compatible with 250 µm and 900 µm optical fibers, as well as 900 µm, 2 mm and 3 mm cordage. All primary fiber types are supported, and each connector is color coded per industry-standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination. Incorporated into this device is an innovative, translucent wedge enabling the use of a common VFI to provide a “pass/fail” signal once physical contact is achieved.
Applications
| er Optic Cable | 2.0mmx3.0mm |
| Plug Type | SC/PC |
| Fiber diameter | 0.125mm |
| Fiber Mode | Singlemode |
| Insertion Loss | <0.5dB (typical 0.2dB) |
| Return Loss | <50dB |
| Tensile strength | <20N |
| Temperature | -40℃—+70℃ |
| Temperature cycling | IL<0.3dB,RL<5dB |
