Product Details:
|
| Insertion Loss: | ≤0.3db Average | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Connector Type: | SC/UPC SC/APC | Return Loss: | Upc≤45db,Apc≤55db |
| Color: | Green/Blue | Product Name: | SC Fast Connector |
| Fiber Type: | SM/MM | Connector Structure: | Pre -embeded Type |
| Durability: | ≤ 0.25db Typical Change | Certification: | ISO9001,RoHS,CE,SGS |
| Name: | Fast Connector | Connector: | Fast Connector SC |
| Fiber Cable Type: | 3x2mm Flat Cable | Length: | 55mm |
| High Light: | 0.25db Optical Cable Connector,SM lc RoHS Optical Cable Connector,0.25db lc fast connector |
||

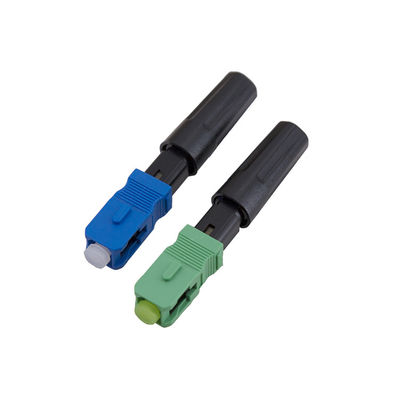

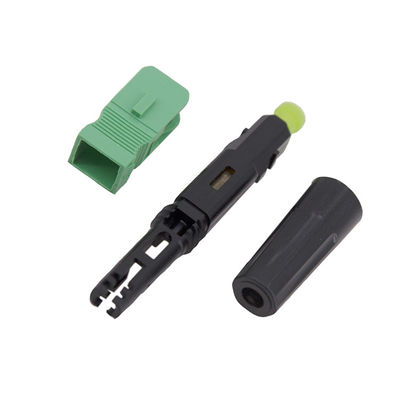

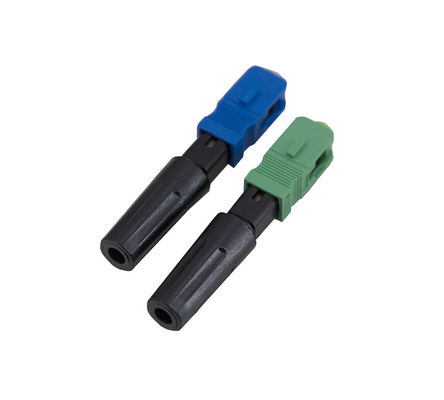

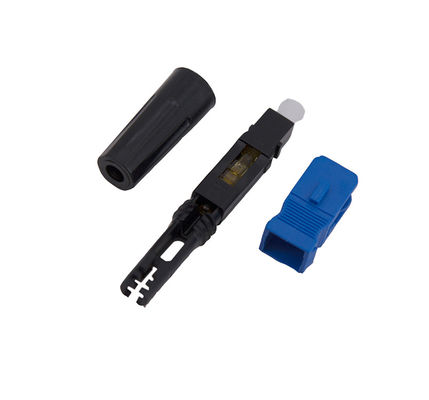

UT-King Fiber Optic fast Connector field-installable connectors are factory pre-polished connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers.
UT-King's Fast connectors make fiber terminations fast, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. Assembly of the quickly assembly fiber connector requires only normal fiber preparation tools, no electrical power supply is needed
Applications
| Model No. | UT-SC5507 |
| Connector Type | UPC/APC |
| Length | 55mm |
| Applicable for | Drop cable.Indoor cable |
| Fiber mode | Single mode |
| Operation time | About 50s(no fiber cut) |
| Insertion Loss | ≤0.4dB |
| Insertion Loss Typical value | 0.2dB |
| Return Loss | ≥50dB UPC ≥55dB APC |
| Fastening strength of naked fiber | ≥5N |
| Tensile strength | ≥40N |
| Reusable | ≥10 times |
| Operating Temperature | -40～+85℃ |
FAQ
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.
Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
