Product Details:
|
| Insertion Loss: | ≤0.3db Average | Application: | FTTH |
|---|---|---|---|
| Connector Type: | SC/UPC SC/APC | Return Loss: | Upc≤45db,Apc≤55db |
| Color: | Green/Blue | Product Name: | SC Fast Connector |
| Fiber Type: | SM/MM | Connector Structure: | Pre -embeded Type |
| Name: | Fast Connector | Connector: | Fast Connector SC |
| Fiber Cable Type: | 3x2mm Flat Cable | Length: | 50mm |
| High Light: | 50mm CATV single mode lc connector,SC 5004 single mode lc connector,SC 5004 upc fiber connector |
||

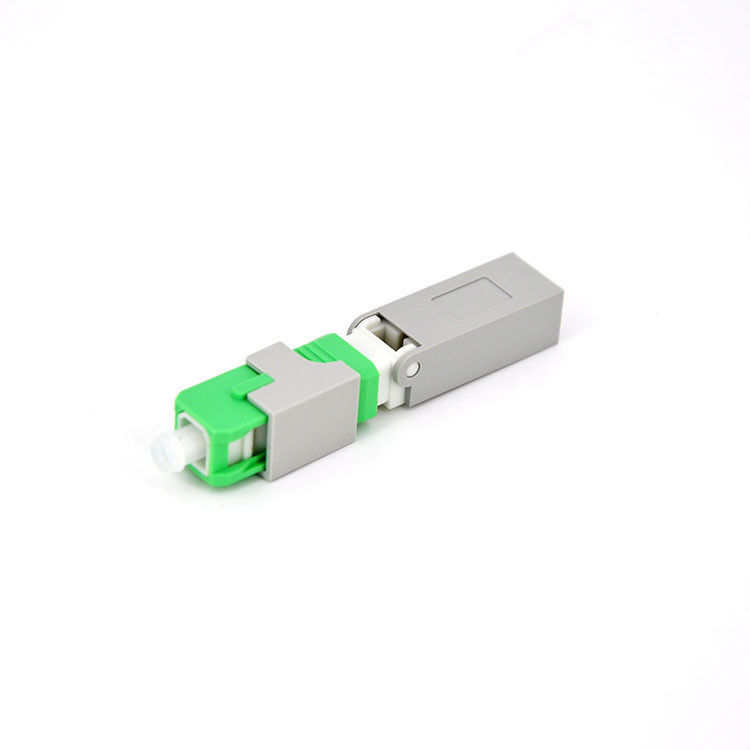

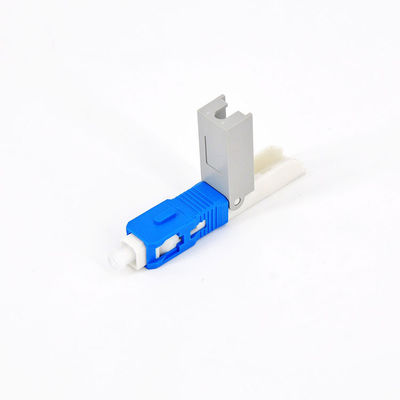

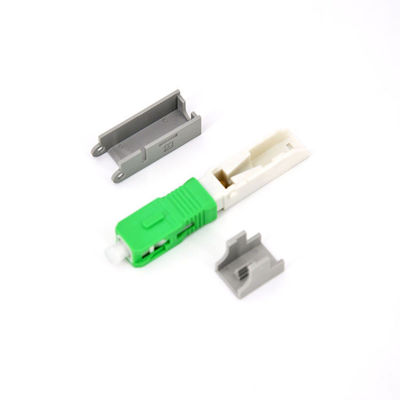

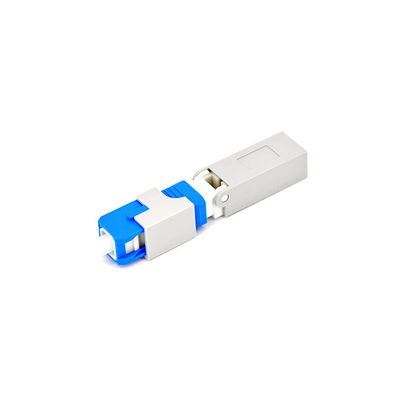

UT-King's Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing, this connector during the installation process does not require any adhesive and curing process. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule, They are widely used in FTTx, Connecting up Renovation of Computer/controlling Room applications.
Fast connectors have a potential fiber connector station time of less than 30 seconds, including preparation. Apart from the standard fiber preparation tools, no other specialized tools are required in conjunction with the PC range of connectors; however APC variants require some additional tooling.
Our Fast Connector series connectors are now available in FC, SC variants, catering for 250um to 900um diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. We provide field installable high reliability SC/PC, SC/APC, LC/PC, LC/APC, FC/PC Fast connectors, using our top quality Ceramic Ferrules with reliable and superior optical performance, their cable tensile test complied with Telcordia GR-326-CORE standard.
Applications
| Model No. | UT-SC5004 |
| Connector Type | UPC/APC |
| Length | 50mm |
| Applicable for | Drop cable.Indoor cable |
| Fiber mode | Single mode |
| Operation time | About 50s(no fiber cut) |
| Insertion Loss | ≤0.4dB |
| Insertion Loss Typical value | 0.2dB |
| Return Loss | ≥50dB UPC ≥55dB APC |
| Fastening strength of naked fiber | ≥5N |
| Tensile strength | ≥40N |
| Reusable | ≥10 times |
| Operating Temperature | -40～+85℃ |
FAQ
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.
Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
