Product Details:
|
| Fiber Type: | SM OM3,OM4 OM5 | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Cable Diameter: | 3.0mm,0.9mm | Cable Length: | Customized |
| Cable Jacket: | LSZH | Connector Type: | UPC/APC |
| Connector: | MPO MTP | Cable Type: | Duplex,OM3,LSZH |
| Fiber: | Corning | No. Of Fiber: | 12 |
| High Light: | OM3 Fanout MPO Patch Cord,OM3 fc FTTB MPO Patch Cord,fc FTTB optic fiber patch cord |
||

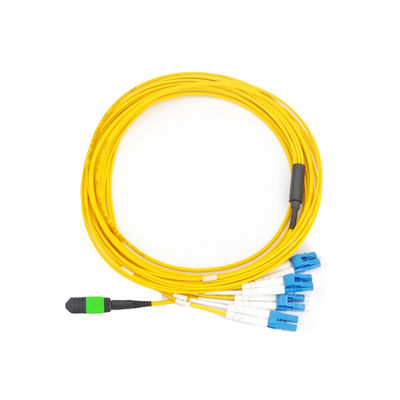

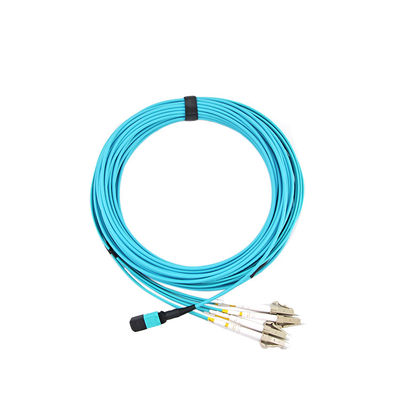

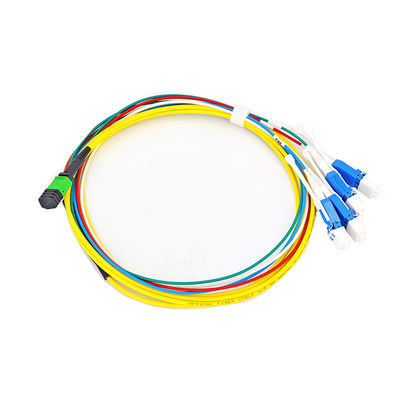

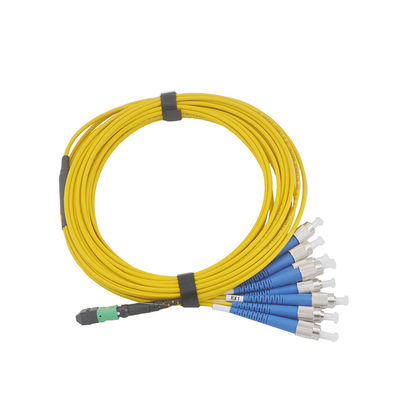

UT-King’s Fan-out cables are designed to use fan-out kit convert to standard optical connectors,harness cables are designed to fanout standard optical connectors directly with 0.9mm loose tube. Input use MTP/MPO high density multifibers connectors and output usually with LC,SC,FC,E2000 and so on. It fit for different installation environment and easy to install between different transmission equipment or different racks and cassette modules. Our connectors are 100% factory tested and can meet your special requirements.All the MTP/MPO connector compliance with Telcordia GR-1435-Core Compliant.
| Performance Level | Standard Loss | Low Loss | ||||
| Connector | Mode | Endface | IL(max) (dB) | RL(min) (dB) | IL(max) (dB) | RL(min) (dB) |
| MPO/MTP | SM | 12F/APC | ≤0.70 | ≥60 | ≤0.35 | ≥60 |
| 24F/APC | ≤0.75 | ≥60 | ≤0.35 | ≥60 | ||
| 48F/APC | ≤0.75 | ≥60 | ||||
| MM | 12F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | |
| 24F/PC | ≤0.50 | ≥20 | ≤0.35 | ≥20 | ||
| 48F/PC | ≤0.50 | ≥20 | ||||
| SC/LC/FC/ST | SM | APC | ≤0.30 | ≥60 | ≤0.10 | ≥60 |
| UPC | ≤0.20 | ≥50 | ≤0.10 | ≥50 | ||
| MM | PC | ≤0.20 | ≥30 | ≤0.10 | ≥30 | |
Q: Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q: Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q: What’s your best price?
A: Based on the quality of our products and the quantity of your order.we would quote the best matching price all the time.
Q: Can you provide OEM/ODM service?
A: Yes,we can.Please let us know your deatil requirements.
Q: How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
