Product Details:
|
| Application: | FTTH FTTB FTTX Network | Product Name: | Optic Fiber Cable |
|---|---|---|---|
| Fiber Brand: | Corning/Yofc/LS | Fiber Type: | SM MM G652D OM3 OM4 |
| Fiber Count: | 2-228 | Jacket: | LSZH |
| Armored Or Not: | Corrugated Steel Tape Armoured | Length: | 1km Or 2km |
| Ackage: | Wooden Drum | Laying Method: | Indoor Distribution |
| High Light: | GJFV multicore optical fiber,FTTB OM3 multicore optical fiber,FTTB OM3 Indoor Fiber Cable |
||

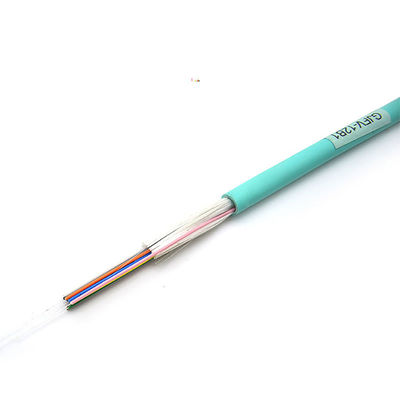

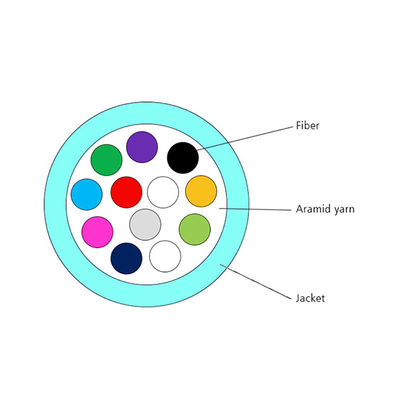

UT-King’s High speed low attenuation fiber optic cable GJFV use multi-color fiber as light transmission medium, then wrapped with a layer of aramid yarn to strengthen its tensile,with 250um fibre, the cable is suitable for industry standard connectors and can be easily made into assemblies for MTP/MPO patch cords.they can also be supplied in PVC (OFNR & OFNP) or LSZH jackets.
| G.652D | 50/125μm | 62.5/125μm | ||
| Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | |||
| @1550nm | ≤0.22 dB/km | |||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | |
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc | ≤1260nm | |||
Q: Are you a manufacturer or a trading company?
A: We are a professional cable manufacturer with 30 years of production experience
Q: What are our payment terms?
A: Our payment terms are usually T / T 30% of the prepayment, ie the balance before pickup or the sight letter of credit.
Q. What is the delivery time?
A: The delivery time is usually 5-30 days. If the order quantity is large, the delivery time needs to be negotiated again.
Q: Can we provide customers with free samples?
Of course, we provide free samples for customers to check.
Q: Does your price include customs clearance at the destination, import tax, installation services?
A: Sorry, we currently only provide cables and provide transportation services in China. Both parties should re-quote and negotiate other services.
Q: What is your quality guarantee and deadline?
A: Each product will be inspected by professional testing equipment, and the product will be out of the warehouse after it is qualified. Usually, the warranty period is 18 months after delivery and 12 months after installation (whichever is earlier).
