Product Details:
|
| Application: | FTTH FTTB FTTX Network | Product Name: | Fiber Optic Cable GYTA |
|---|---|---|---|
| Fiber Brand: | Corning/Yofc/LS | Fiber Type: | Single Mode |
| Fiber Count: | 2-144 Cores | Length: | 1km Or 2km |
| Package: | Wooden Drum | Keywords: | GYTA |
| Jacket Material: | PE PVC LSZH HDPE | Cable Diameter: | 8.8 - 14.6mm / Customized |
| High Light: | 2km GYTA Fiber Optic Cable,FTTB Sheath Metallic Fiber Optic Cable,fttb drop wire fiber optic 2 core |
||

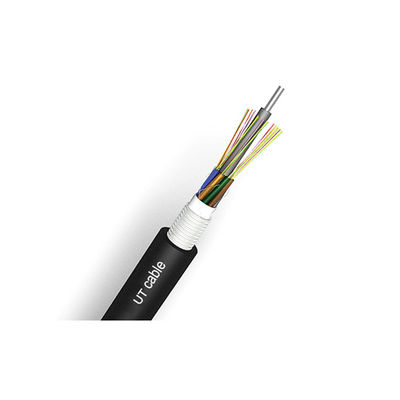

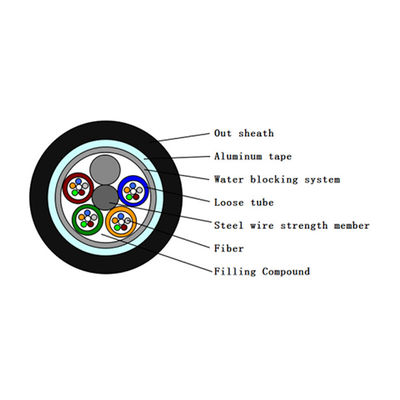

UT-King’s GYTA fiber optic cable feature stranded loose tube filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then, the cable is completed with a PE sheath. It's suitable for installation for long haul communication and LANs, especially suitable for the situation of high requirements of moisture resistance.
| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm | |||||||||
|
Attenuation (+20℃)
|
@850nm | ≤3.0 dB/km | ≤3.0 dB/km | ||||||||||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||||||||||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||||||||||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||||||||||
| Bandwidth (Class A) | @850nm | ≥500 MHz·km | ≥200 MHz·km | ||||||||||
| @1300nm | ≥500 MHz·km | ≥500 MHz·km | |||||||||||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||||||||||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1450nm | |||||||||||
|
Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Max Fiber Per Tube | Max No. of (Tubes+fillers) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) | |||||||
| Short Term | Long Term | Short Term | Long Term | ||||||||||
| 2~30 | 9.7 | 76 | 6 | 5 | 1500 | 600 | 1000 | 300 | |||||
| 32~48 | 10.7 | 90 | 8 | 6 | 1500 | 600 | 1000 | 300 | |||||
| 50~72 | 11.6 | 110 | 12 | 6 | 2000 | 600 | 1000 | 300 | |||||
| 74~96 | 13.0 | 135 | 12 | 8 | 2000 | 600 | 1000 | 300 | |||||
| 98~144 | 15.1 | 190 | 12 | 12 | 2000 | 600 | 1000 | 300 | |||||
Q: Are you a manufacturer or a trading company?
A: We are a professional cable manufacturer with 30 years of production experience
Q: What are our payment terms?
A: Our payment terms are usually T / T 30% of the prepayment, ie the balance before pickup or the sight letter of credit.
Q. What is the delivery time?
A: The delivery time is usually 5-30 days. If the order quantity is large, the delivery time needs to be negotiated again.
Q: Can we provide customers with free samples?
Of course, we provide free samples for customers to check.
Q: Does your price include customs clearance at the destination, import tax, installation services?
A: Sorry, we currently only provide cables and provide transportation services in China. Both parties should re-quote and negotiate other services.
Q: What is your quality guarantee and deadline?
A: Each product will be inspected by professional testing equipment, and the product will be out of the warehouse after it is qualified. Usually, the warranty period is 18 months after delivery and 12 months after installation (whichever is earlier).
