Product Details:
|
| Application: | FTTH | Color: | Black |
|---|---|---|---|
| Connector: | SC/LC/FC | Product Name: | Fullaxs-LC Patch Cord |
| Polishing: | PC / APC | Length: | 1m/3m/5m/10m Customized |
| Tensile Data: | Tensile Between Junction And Fiber Cable≥100N | Multi Mode Type: | OM1/OM2/OM3/OM4 |
| Single Mode Type: | G657A1/G657A2 | Cable Diameter: | 4.0mm |
| Cable Jacket: | LSZH | Insertion Loss: | ≤0.3db |
| Max Capacity: | 1 2 4 8 | Used For: | 4G 5G Base Station BBU, RRU, RRH, LTE |
| High Light: | duplex FTTA Fiber Optic Patch Cord,LC Fullaxs Fiber Optic Patch Cord,lc fc FTTA duplex patch cord |
||

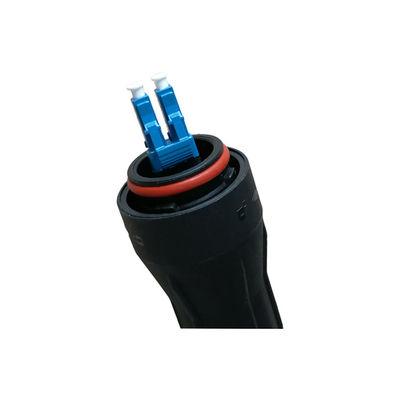

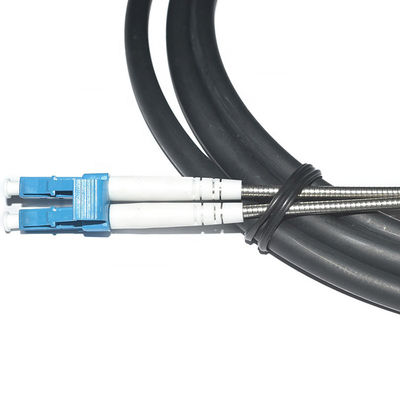

UT-King’s FullAXS-LC patch cord are commonly used in some Ericsson Remote Radio Heads, the shell encloses duplex LC connectors. Plugs directly into SFP at panel of RRH.FullAXS is a sealing system for optical and electrical interfaces which mates directly into the SFP modules through a bulkhead construction.

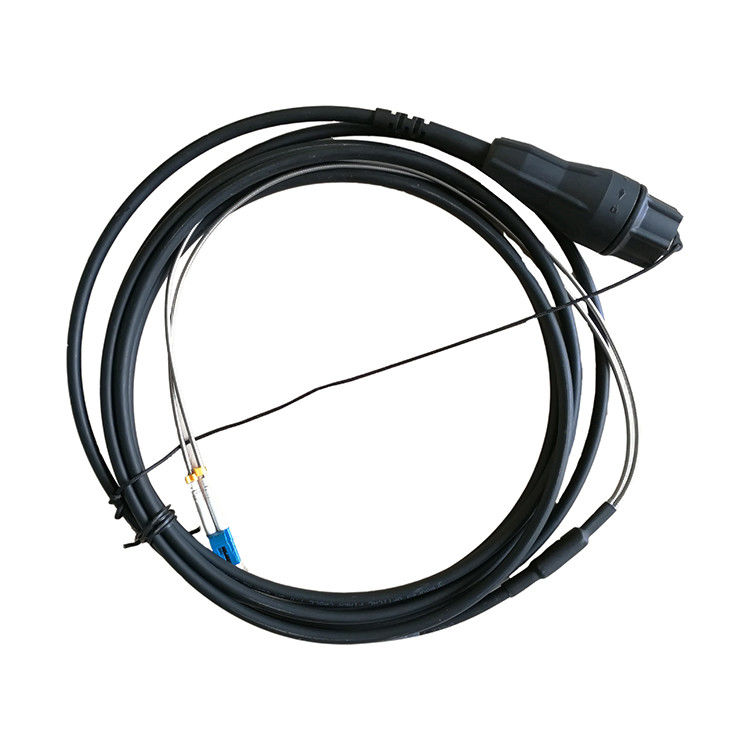

To meet the requirements of the next generation of WiMAX and long-term evolution (lte) fiber-to-antenna (ftta) technology, te connectivity (te) has introduced a fullaxs connector system that provides sfp links between remote radio and telecommunications application base stations. The fullaxs fiber optic patch cable is made with the fullaxs connector and outdoor rated optical cable.
Fullaxs fiber optic cable is compatible with a wide range of sfp transceivers on the market, allowing end users to select transceivers that meet their specific system requirements. The water-resistant cable assemblies for WiMAX and lte ftta applications are plugged directly into the fiber transceiver through a plug-in connection to establish a connection. This connection requires a larger capacity of the connector in the z-axis direction.
| Item | Data |
| Insertion Loss | ≤0.3dB |
| Return Loss | SM/UPC≥50dB,SM/APC≥60dB,MM≥35dB |
| Mechanical life | 500cycles |
| Working temperature | -40°C~+70°C |
| Storage temperature | -40°C~+70°C |
| Operating temperature | -10°C~+50°C |
| Protection Level | IP65 |
| Tensile Data | Tensile between junction and fiber cable≥100N |
| Authentication | Meet with RoHS |
| Fiber Count | 2core |
| Out diameter | 4.8±0.2mm |
| fiber | OS2,OM1,OM2,OM3,OM4 |
| Tension member | Aramid Kevlar,Armoured Tube |
| Max. attenuation |
SM:≤0.4dB/km at 1310nm,≤0.25dB/km at 1550nm MM:≤0.60dB/km at 1300nm,≤2.3dB/km at 850nm |
| Tensile resistance(short term) | 500N(no breakage) |
| Crush resistance(short term/long term) | 1000N/100mm |
| inflaming retarding | IEC 60332-3-4 |
| Temperature | -40~+70°C |
| Authentication | Meet with RoHS &UL |

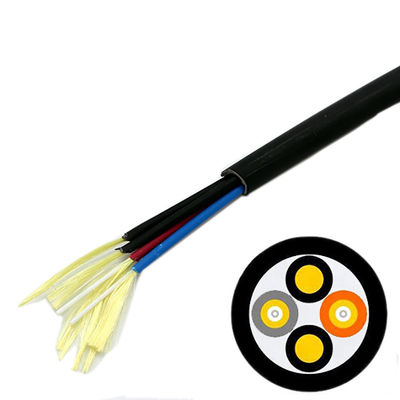

Cable Structure:
Type1: 2×Tight Buffer(0.9mm)+Kevlar+Jacket OD=4.8mm;
Type2: 2×Tight Buffer(0.9mm)+Kevlar+Spiral +Jacket OD=4.8mm
Type3: 0.9mm tight buffer*2 +2.0mm Jacket*2 +2×2.0mm Tube+Jacket OD=7.0mm;
Type4: 0.9mm tight buffer*2 +2.0mm Jacket*2 +2×2.0mm Tube+power cable 0.75M2 *2 Jacket OD=8.5.0mm;
Q. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available
Q. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
