5m MOVA Fiber Optic Patch Cord Om3 Attenuators Manual G657A1

5m MOVA Fiber Optic Patch Cord Om3 Attenuators Manual G657A1
5m MOVA Fiber Optic Patch Cord Om3 Attenuators Manual G657A1 5m MOVA Fiber Optic Patch Cord Om3 Attenuators Manual G657A1 5m MOVA Fiber Optic Patch Cord Om3 Attenuators Manual G657A1 5m MOVA Fiber Optic Patch Cord Om3 Attenuators Manual G657A1

Large Image :  5m MOVA Fiber Optic Patch Cord Om3 Attenuators Manual G657A1

Product Details:
Place of Origin: China
Brand Name: UT-King
Certification: CE,ROHS,ISO9001
Model Number: MOVA
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Packaging Details: 1pcs/box
Delivery Time: 3-5days
Supply Ability: 1000PCS/Week

5m MOVA Fiber Optic Patch Cord Om3 Attenuators Manual G657A1

Description
Application: FTTH Color: Black
Connector: FC Product Name: MOVA Patch Cord
Length: 1m/3m/5m/10m Customized No. Of Fiber: 1
Multi Mode Type: OM1/OM2/OM3/OM4 Single Mode Type: G657A1/G657A2
Cable Diameter: 7.0mm Cable Jacket: LSZH
High Light:

5m MOVA Fiber Optic Patch Cord

,

G657A1 OM4 Fiber Optic Patch Cord

,

G657A1 om3 patch cord

MOVA Fiber Optic Manual Variable Optical Attenuators Fiber Optic Cable Patch Cord




Description

UT-King’s MVOA is an useful tool for the optical components and systems test. the Manual Variable Optical Attenuator is designed and manufactured to reduce the output optical power, get the power suitable. It is with low insertion loss, high extinction ration, high return loss and low Adjustment Precision, The Attenuator is widely applied at fiber laser ,fiber CWDM/DWDM/OADM communication system, They can be used for power control and equalization for WDMs, FTTx, CATV and Test & Measurement instruments.





Features

  • Low Insertion Loss & PDL
  • High Return Loss
  • High Stability & Reliability
  • Low Cost
  • Epoxy Free Optical Path
  • PC Board Mountable





Features

  • Optical Power Control and Equalization in Multi-Channel Systems
  • Telecommunication Systems
  • CATV
  • WDM Systems
  • OADM and OXC
  • FTTx
  • Fiber Optic Instruments

Specification



Parameter   value
Grade - P A
Center Wavelength nm 980,1064, 1310, 1550, 2000
Operating Wavelength Range nm ±40
Max. Original loss dB 0.5 0.6
Attenuation range dB 0.5 ~ 60 0.6 ~ 60
Min. Return loss dB 50
Adjustment Precision dB 0.02
Max. PDL dB 0.2
Max. Power Handling mW 500
Max. Tensile Load N 5
Fiber type - SMF fiber
Operating temperature 0 ~ +70
Operating temperature -40 ~ +85
Dimensions mm 26×18×8





1. Above specifications are for device without connector.

2. For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower. The default connector key is aligned to slow axis. Power transmit through the connector less than 2W.



5m MOVA Fiber Optic Patch Cord Om3 Attenuators Manual G657A1 0
Order information P/N: VOA-①-②-③-④-⑤-⑥

When you inquire, please provide the correct P/N number according to our ordering information, and attach the appropriate description would be better. If need any connector, we do not recommend choosing a 250μm bare fiber pigtail.



wavelength Grade Fiber Type Pigtails Diameter Fiber Length Connector

98: 980nm

64:1064nm

13:1310nm

15:1550nm

XX: Others

P:P Grade

A:A Grade

1: SMF-28 fiber

2: HI1060 fiber

X:Others

90:900μm

20:2.0mm

30:3.0mm

XX: Others

08:0.8m

10:1.0m

XX: Others

00:None

FP: FC/PC

FA: FC/APC

SP: SC/PC

SA: SC/APC

XX: Others

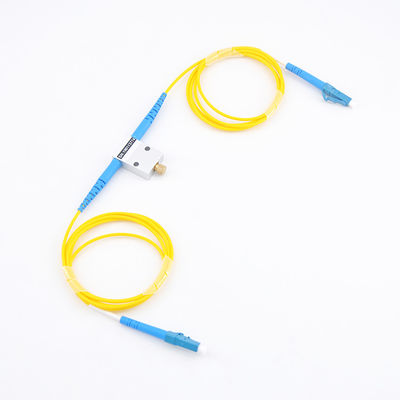

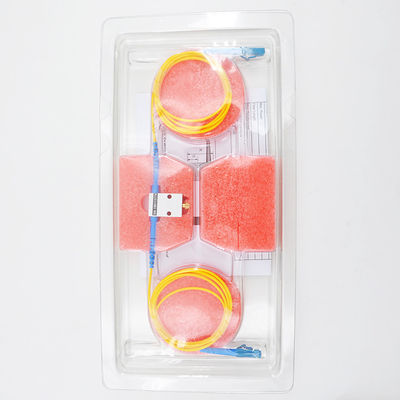

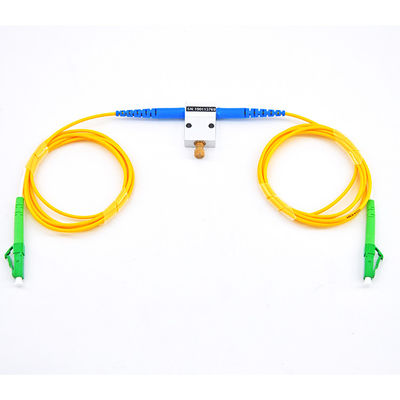

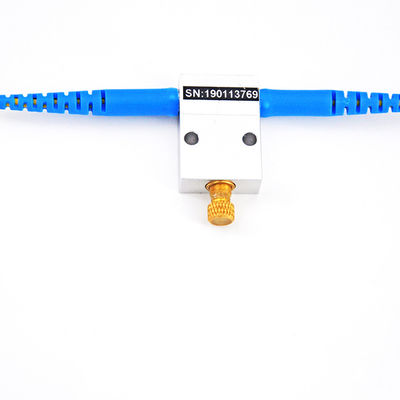

Detailed Images

5m MOVA Fiber Optic Patch Cord Om3 Attenuators Manual G657A1 15m MOVA Fiber Optic Patch Cord Om3 Attenuators Manual G657A1 25m MOVA Fiber Optic Patch Cord Om3 Attenuators Manual G657A1 35m MOVA Fiber Optic Patch Cord Om3 Attenuators Manual G657A1 4

FAQ

Q. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.


Q. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.


Q. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available.


Q. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.


Q. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.
