Realtek Chipset 1GE 1FE WiFi ONU XPON For FTTH Network

Realtek Chipset 1GE 1FE WiFi ONU XPON For FTTH Network
Realtek Chipset 1GE 1FE WiFi ONU XPON For FTTH Network Realtek Chipset 1GE 1FE WiFi ONU XPON For FTTH Network Realtek Chipset 1GE 1FE WiFi ONU XPON For FTTH Network Realtek Chipset 1GE 1FE WiFi ONU XPON For FTTH Network Realtek Chipset 1GE 1FE WiFi ONU XPON For FTTH Network

Large Image :  Realtek Chipset 1GE 1FE WiFi ONU XPON For FTTH Network

Product Details:
Place of Origin: Guangdong
Brand Name: UT-King
Certification: RoHS, CE, ISO9001
Model Number: XP6105
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: 1set/box
Delivery Time: 5-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs per week
Contact Now

Realtek Chipset 1GE 1FE WiFi ONU XPON For FTTH Network

Description
Product Name: Onu Xpon Type: FTTH Solutions
PON Port: 1GE+1FE+WIFI Wavelength: Tx1310nm Rx1490nm
Applications Distance: 20km Chipset: Realtek Chipset
Color: White Software: English Firmware
Application: FTTH FTTB FTTX Network Keywords: Xpon Onu
High Light:

1GE 1FE WiFi ONU XPON

,

Realtek Chipset ONU XPON

,

FTTH Network XPON ONU

Ftth ONT Wifi Supporting XPON XP6105 ONT 1ge+1fe With Wifi ONU XPON Modem


Product Features:

* Conform to IEEE802.3ah standard
* Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services
* Support frame filtering and suppression
* Support standard 802.1Q Vlan function, support VLAN conversion
* Support 4094 VLANs (802.1Q)
* Support Dynamic Bandwidth Allocation (DBA) function
* Support QoS, including traffic flow classification, priority marking, queue and dispatch, traffic shaping and traffic control,etc
* Single ONU supports up to 1LLID.
* Support IGMP Snooping
* Support Ethernet port ratelimit loop detection
* Support power failure alarm
* Support lightning protection for power supply and lightning protection for service port


Specification :
Model
F670L
GPON Port
1x, SC/APC, 2,448 Gbit/s downstream 1,244 Gbit/s upstream
Subscriber interface
4GE+1pots+1USB+WIFI 2.4G &5G
Modes
Bridge, Router, AP
Wavelength downstream
1490nm
Upstream Wavelength
1310nm
Sensitivity
-28 dBm
Consumption
9 W
Dimensions
205 x 120 x 28 mm
Working temperature and humidity
0°C – 40°C, 5% – 95%
Power
12 IN DC
GPON properties
8x T-CONT, 32 GEM ports
Support
VLAN (802.1Q, 802.1P, 802.1ad), Multicast, QoS, DHCP Server/Client, NAT, IPv6 Dual Stack
Management
Local (WEB), OMCI, TR069

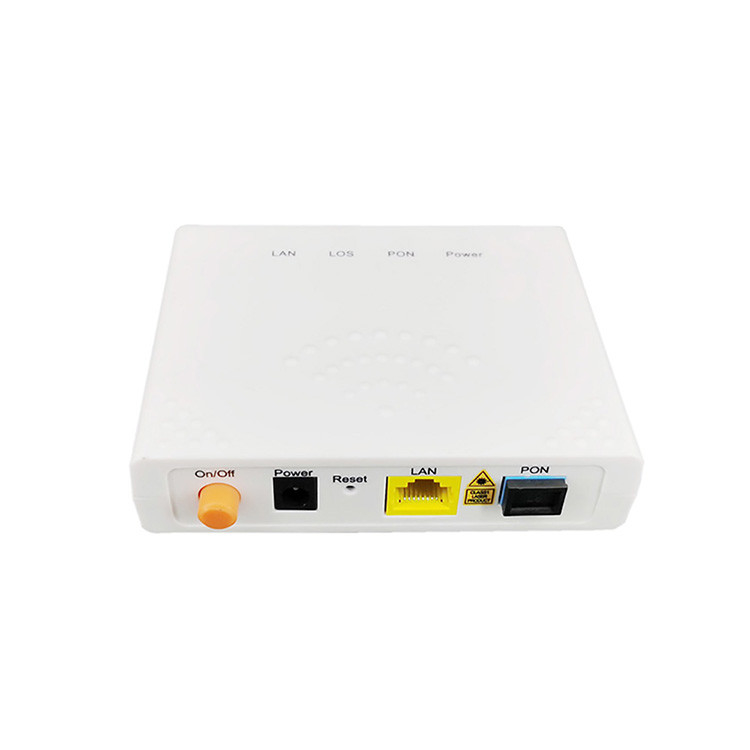

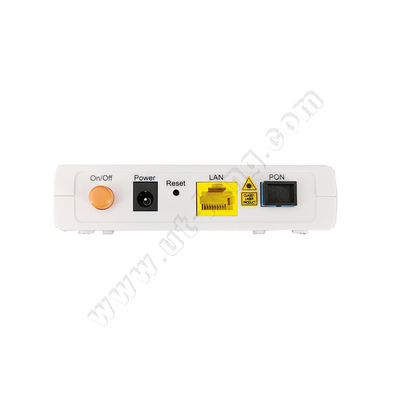

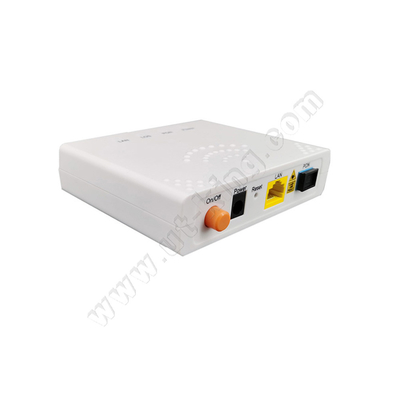

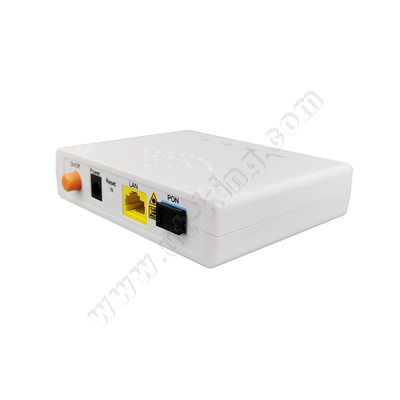

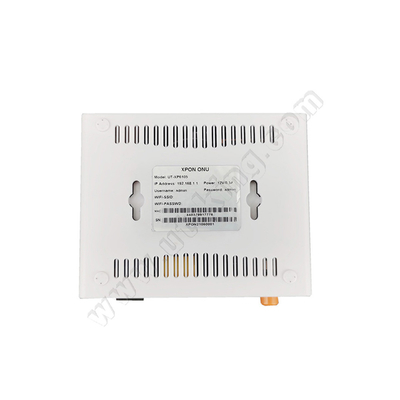

Details of Pictures:



Realtek Chipset 1GE 1FE WiFi ONU XPON For FTTH Network 0Realtek Chipset 1GE 1FE WiFi ONU XPON For FTTH Network 1



Realtek Chipset 1GE 1FE WiFi ONU XPON For FTTH Network 2



Realtek Chipset 1GE 1FE WiFi ONU XPON For FTTH Network 3
