Product Details:
|
| Type: | XPON ONU | Use: | FTTH |
|---|---|---|---|
| Product Name: | CATV ONU | Ports: | 1GE+1FE+WIFI+CATV |
| Down Link LAN Interface: | EPON/GPON/XPON | Applications Distance: | 20km |
| Wavelength: | Tx 1310nm, Rx1490nm | Application: | FTTH FTTB FTTX Network |
| Color: | White | MOQ: | 1PCS |
| High Light: | XPON ONU ONT Modem,FTTH Network ONU ONT Modem,1GE 1FE WiFi CATV XPON Modem |
||

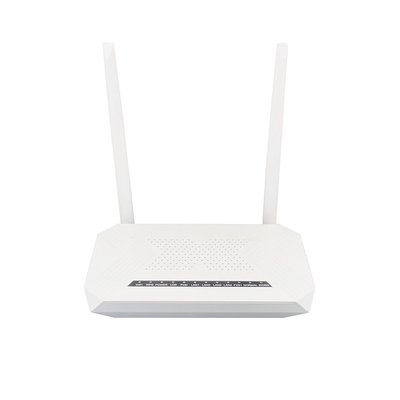

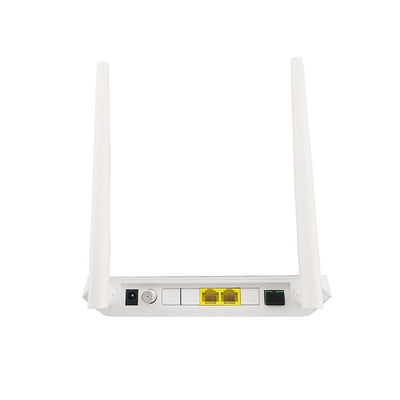

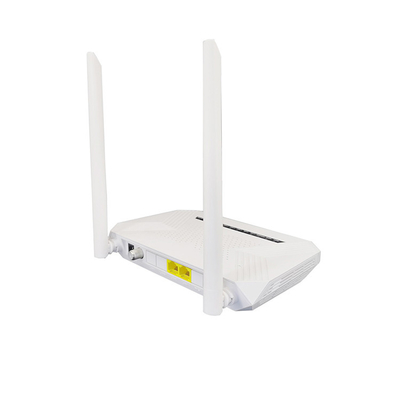

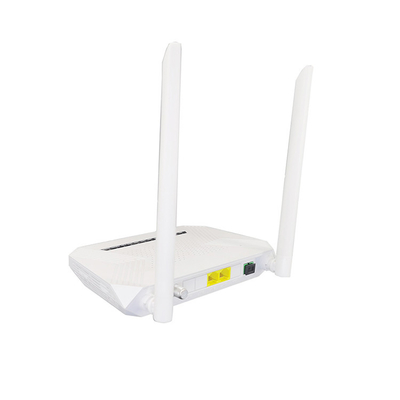

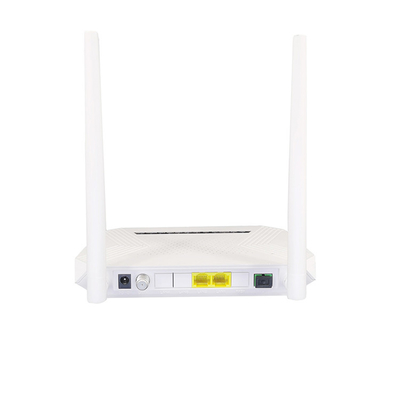

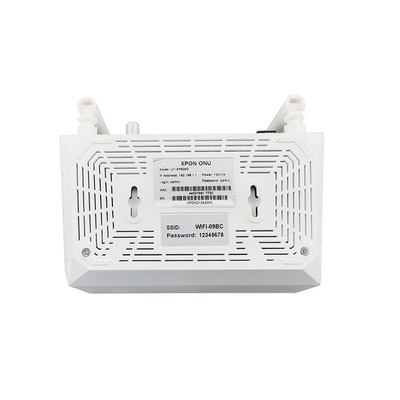

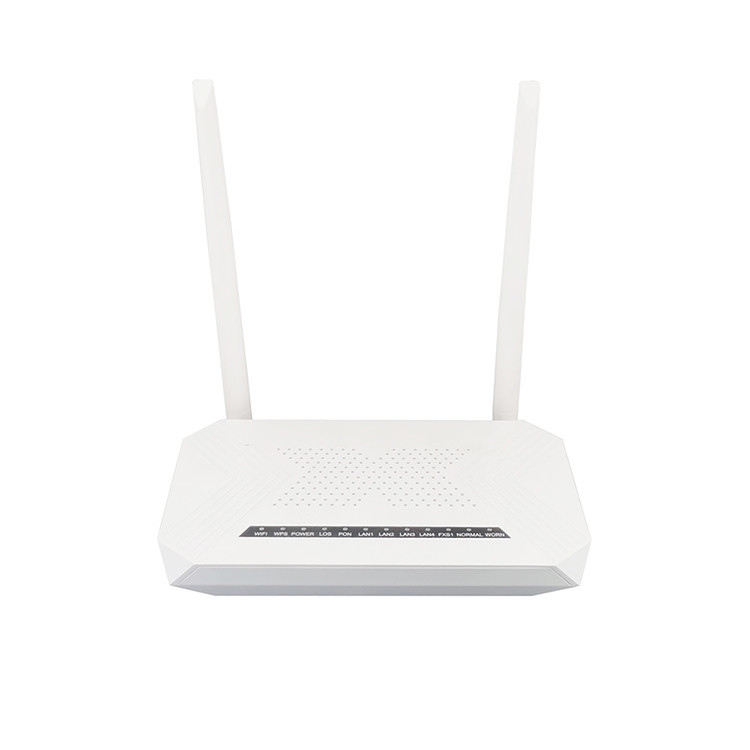

XPON ONU ONT XP6242 Modem with 1GE+1FE+WIFI+CATV Function FTTH Network Equipment ONU
UT-XP6242 seriess the device terminal for ONT in the XPON system, cooperating with OLT. ONT can provide various broadband services to the connected users, such as Internet, VoIP, IPTV, Video Conference and other businesses.It provides a PON interface, 2 10/100/1000m adaptive Ethernet ports, and a USB interface based on mature, stable, cost-effective GPON technology.Single fiber WDM technology (down 1490nm, up 1310nm) is adopted to connect only one fiber to OLT, and the maximum transmission distance is up to 20km. It supports the power down and report function and supports the local WEB management function.
* Support EPON and GPON, and switch mode automatically
* Support ONU auto-discovery/Link detection/remote upgrade of software
* WAN connections support Route and Bridge mode
* Route mode supports PPPoE/DHCP/ static IP
* Support WIFI Interface and multiple SSID
* Support QoS and DBA
* Support port Isolation and port vlan configuration
* Support Firewall function and IGMP snooping multicastfeature
* Support LAN IP and DHCP Server configuration;
* Support Port Forwarding and Loop-Detect
* Support TR069 remote configuration and maintenance
* Support CATV interface for Video Service
* Specialized design for system breakdown prevention to maintain stable system
Specification
Details of Picture
