Product Details:
Place of Origin: Guangdong
Brand Name: UT-King
Certification: RoHS, CE, ISO9001
Model Number: XP6243
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: 1set/box
Delivery Time: 5-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs per week

TX 1310nm RX 1490nm 1GE 1FE WiFi CATV XPON ONU

Description
Application: FTTH FTTB FTTX Network Product Name: XPON ONU
Function: 1GE+1FE+WIFI+CATV Wavelength: Tx 1310nm, Rx1490nm
LAN Interface: 4x10/100/1000Mbps RJ45 Ports Applications Distance: 20km
Connector Type: SC/UPC SC/APC Chipset: ZTE/RTL/MTK
Keywords: ONU XPON
High Light:

1GE 1FE WiFi CATV XPON ONU

,

RX 1490nm XPON ONU

,

TX 1310nm XPON ONU Router



Advantage Price XPON ONU 1GE+1FE+CATV+WIFI for TX 1310nm, RX 1490nm Wavelength ONU Xpon Catv





          UT-XP6243 is designed and manufactured by Shenzhen UT-King Technology Co.,Ltd, designed for fulfilling FTTH (Fiber To The Home) and triple play service demand of fixed network operators. The box is based on the mature Gigabit GPON technology, which has high ratio of performance to price, and the technology of 802.11n WiFi (2T2R), Layer 2&3 and high quality VoIP as well. It is adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of IT



Features :



 Support EPON/GPON mode and switch mode automatically
 Support Route mode for PPPoE/DHCP/Static IP and Bridge mode
 Support IPv4 and IPv6 dual mode
 Support 2.4G WIFI and Multiple SSID
 Support CATV interface for Video Service and remote control by Major OLT
 Support LAN IP and DHCP Server configuration
 Support Port Mapping and Loop-Detect
 Support Firewall function and ACL function
 Support IGMP Snooping/Proxy multicast feature
 Support TR069 remote configuration and maintenance
 Specialized design for system breakdown prevention to maintain stable system


Specification:

PON Interface 1 GPON BOB (Bosa on Board)
Receiving sensitivity: ≤-28dBm
Transmitting optical power: +1~+4dBm
Transmission distance: 20KM
Wavelength TX: 1310nm, RX: 1490nm
Optical Interface SC/APC Connector
Design Scheme RTL9602C+RTL8192FR BOB(RTL8290B)
Flash SPI Nor Flash 16MB
LAN Interface 1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE) auto adaptive Ethernet
interfaces. Full/Half, RJ45 connector
Wireless Compliant with IEEE802.11b/g/n,
Operating frequency: 2.400-2.4835GHz
support MIMO, rate up to 300Mbps,
2T2R,2 external antenna 5dBi,
Support: Multiple SSID
Channel: Auto
Modulation type: DSSS, CCK and OFDM
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
CATV Interface RF, WDM, optical power : +2~-15dBm
Optical reflection loss: ≥45dB
Optical receiving wavelength: 1550±10nm
RF frequency range: 47~1000MHz, RF output impedance: 75Ω
RF output level: 78dBuV
AGC range: -13~+1dBm
MER: ≥32dB@-15dBm
Operating Condition Temperature: 0℃~+50℃
Humidity: 10%~90%(non-condensing)
Storing Condition Temperature: -30℃~+60℃
Humidity: 10%~90%(non-condensing)
Power Supply DC 12V/1A
Power Consumption ≤6W
Dimension 155mm×92mm×34mm(L×W×H)
Net Weight 0.24Kg

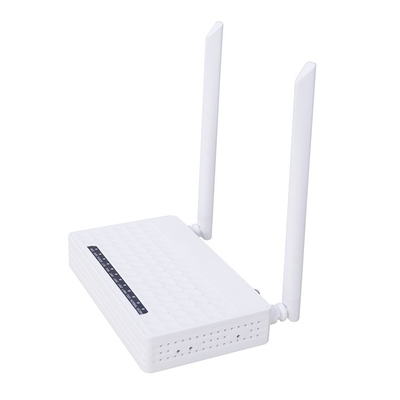

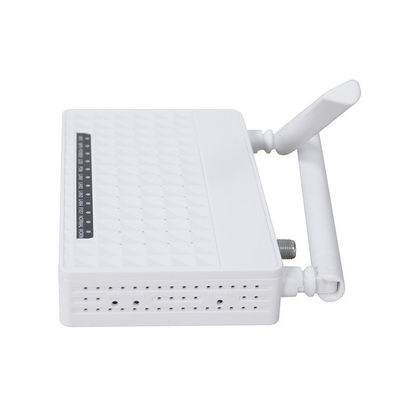

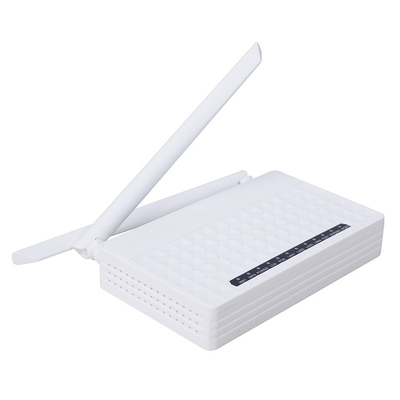

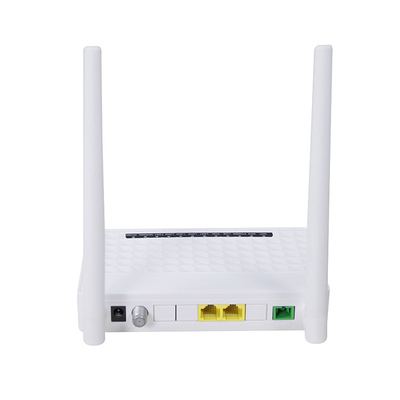

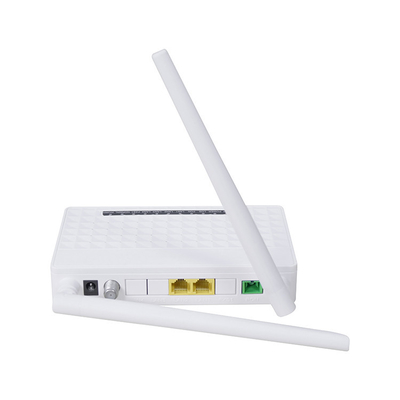

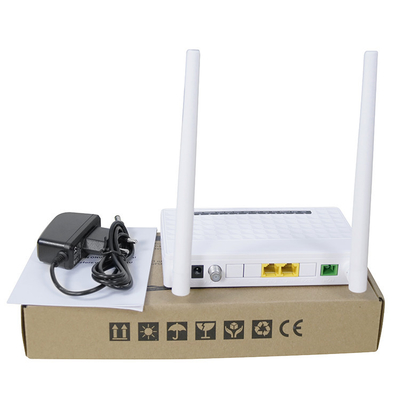

Details of Picture :



TX 1310nm RX 1490nm 1GE 1FE WiFi CATV XPON ONU 0TX 1310nm RX 1490nm 1GE 1FE WiFi CATV XPON ONU 1TX 1310nm RX 1490nm 1GE 1FE WiFi CATV XPON ONU 2TX 1310nm RX 1490nm 1GE 1FE WiFi CATV XPON ONU 3
