2.4G 5.8G WiFi Dual Band ONT XPON XP6484 For FTTH Network

Certification
China Shenzhen UT-King Technology Co., Ltd. certification
China Shenzhen UT-King Technology Co., Ltd. certification
I'm Online Chat Now

2.4G 5.8G WiFi Dual Band ONT XPON XP6484 For FTTH Network

2.4G 5.8G WiFi Dual Band ONT XPON XP6484 For FTTH Network
2.4G 5.8G WiFi Dual Band ONT XPON XP6484 For FTTH Network 2.4G 5.8G WiFi Dual Band ONT XPON XP6484 For FTTH Network 2.4G 5.8G WiFi Dual Band ONT XPON XP6484 For FTTH Network 2.4G 5.8G WiFi Dual Band ONT XPON XP6484 For FTTH Network 2.4G 5.8G WiFi Dual Band ONT XPON XP6484 For FTTH Network 2.4G 5.8G WiFi Dual Band ONT XPON XP6484 For FTTH Network

Large Image :  2.4G 5.8G WiFi Dual Band ONT XPON XP6484 For FTTH Network

Product Details:
Place of Origin: Guangdong
Brand Name: UT-King
Certification: RoHS, CE, ISO9001
Model Number: XP6484
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: 1set/box
Delivery Time: 5-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs per week

2.4G 5.8G WiFi Dual Band ONT XPON XP6484 For FTTH Network

Description
Application: FTTH FTTB FTTX Network Product Name: XPON ONU
Function: 1GE+3FE+1POTS+WIFI2.4G&5.8G Wavelength: Tx 1310nm, Rx1490nm
LAN Interface: 4x10/100/1000Mbps RJ45 Ports Applications Distance: 20km
Connector Type: SC/UPC SC/APC Chipset: ZTE/RTL/MTK
Keywords: Wifi ONU XPON
High Light:

FTTH ONT XPON

,

Dual Band ONT XPON

,

2.4G 5.8G WiFi ONT XPON Router



Fiber Optic Equipment Ftth Ont Xpon XP6484 Catv With 2.4G&5.8G Wifi Dual Band Onu





        UT-XP6484 series is designed as HGU(Home Gateway Unit) in deferent FTTH solutions by UT-King, Thecarrier-class FTTH application provides data service access, based on mature and stable, cost-effective XPON technology. It can switchautomatically with EPON and GPON when it access to the EPON OLT or GPON OLT.XPON series adopts high reliability, easy management, configuration flexibility and good quality ofservice (QoS) guarantees to meet the technical performance of the module of China Telecom EPONCTC3,0 and GPON Standard of ITU-TG.984.X. UT-XP6484 is designed by Realtek chipset 9607C.





Features :



 Support EPON and GPON Mode, and switch mode automatically
 Support ONU auto-discovery/Link detection/remote upgrade of software
 WAN connections support Route and Bridge mode
 Route mode supports PPPoE/DHCP/ static IP
 Support WIFI Interface and multiple SSID
 Support QoS and DBA
 Support port Isolation and port vlan configuration
 Support Firewall function and IGMP snooping multicast feature
 Support LAN IP and DHCP Server configuration;
 Support Port Forwarding and Loop-Detect
 Support TR069 remote configuration and maintenance
 Support CATV interface for Video Service
 Support POTS interface for Voip Service
 Specialized design for system breakdown prevention to maintain stable system


Specification:

Item Specification
Main Chipset ZTE, ZAX279128+MT7603+MT7612
PON Interface 1 G/EPON port(EPON PX20+ and GPON ClassB+)
Receiving sensitivity: ≤-27dBm
Transmitting optical power: 0~+4dBm
Transmission distance: 20km
Wavelength TX: 1310nm, RX: 1490nm
Optical Interface 1* SC/UPC Connector
LAN Interface 1*10/100/1000Mbps RJ45 Ports
3*10/100Mbps RJ45 Ports
POTS interface 1* FXS, RJ11 connector
Support: G.711/G.723/G.726/G.729 codec
Support: T.30/T.38/G.711 Fax mode, DTMF Relay Line testing
according to GR-909
Wireless Compliant with IEEE802.11b/g/n,
Operating frequency: 2.4GHz and 5.8GHz
support MIMO, rate up to 1200 Mbps,
2T2R,2 external antenna 5dBi,
Support: multiple SSID

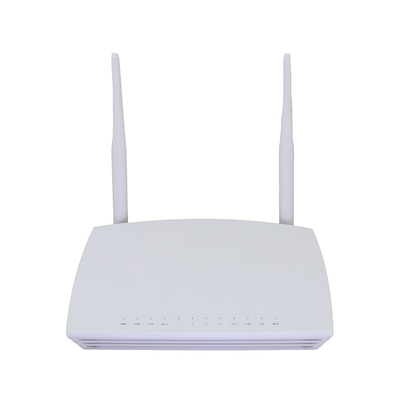

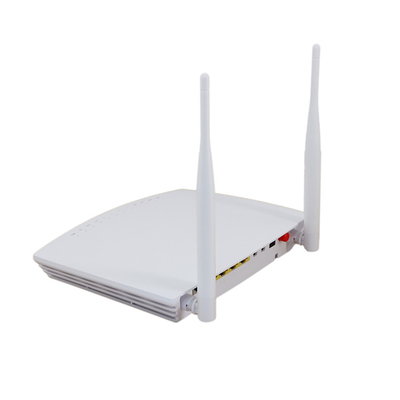

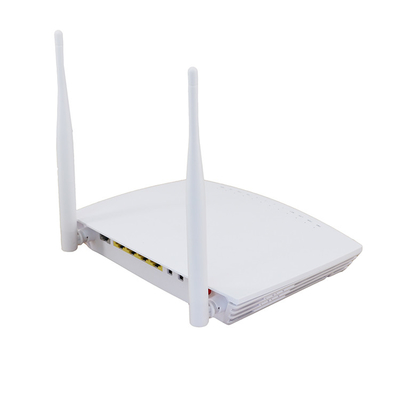

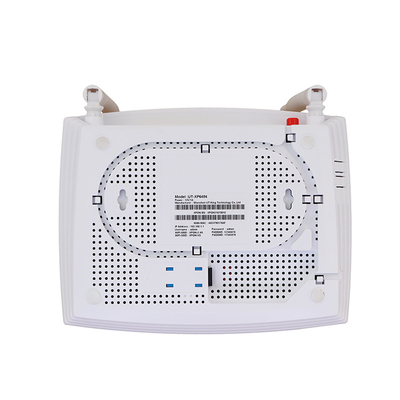

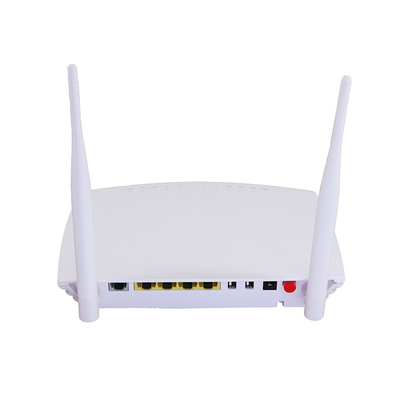

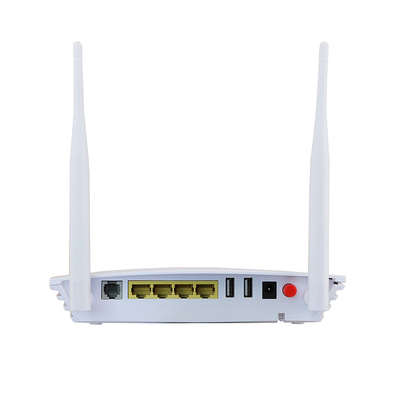

Details of Picture :



2.4G 5.8G WiFi Dual Band ONT XPON XP6484 For FTTH Network 02.4G 5.8G WiFi Dual Band ONT XPON XP6484 For FTTH Network 12.4G 5.8G WiFi Dual Band ONT XPON XP6484 For FTTH Network 2
