Product Details:
|
| Product Name: | XPON ONU | Ports: | 1GE+1FE+WIFI |
|---|---|---|---|
| Application: | FTTH FTTX FTTA | LAN Interface: | 1 X 10/100/1000Mbps |
| Wavelength: | TX: 1310nm, RX: 1490nm | Color: | White |
| Chipset: | ZTE/RTL/MTK | Power Supply: | 12V 0.5A |
| Connector Type: | SC/UPC | ||
| High Light: | FTTX Solution GEPON ONU,Dual Mode GEPON ONU,XPON ONU With 1GE |
||
UT-King Wholesale Price FTTX Solution GEPON ONU with 1GE Dual Mode XPON ONU ONT

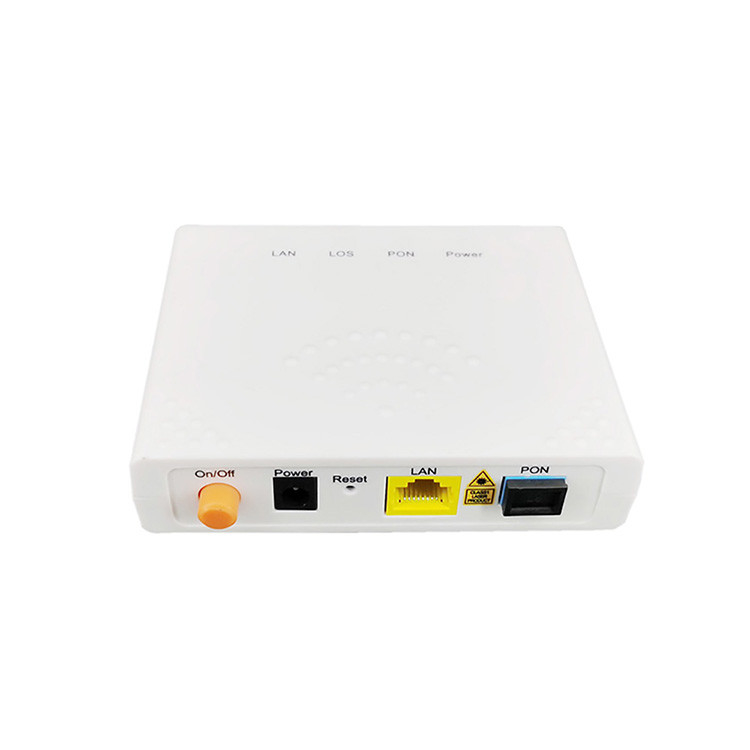

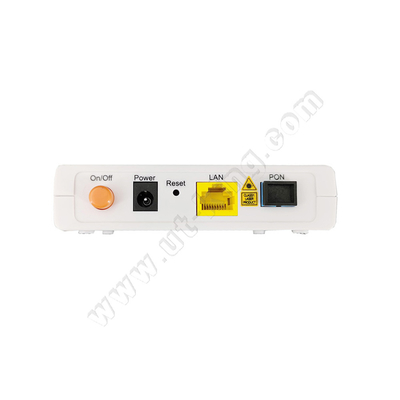

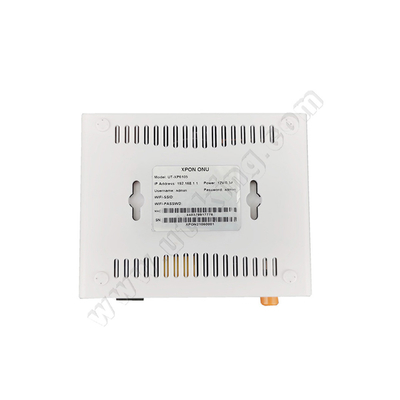

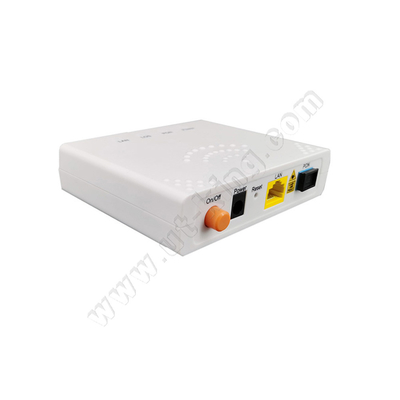

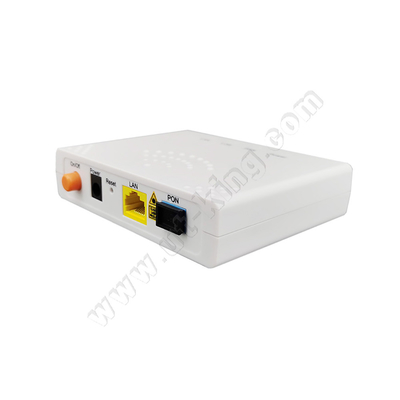

Overview of xpon onu
XPON ONU(UT-XP6105) is designed and manufactured by Shenzhen UT-King Technology Co.,Ltd, a next-generation Gigabit Passive Optical Network terminal, ideal for Fiber to The Home solution. It’s an incredibly robust device allowing users to access high-speed internet connections via its XPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 2.488Gbps, one XPON port and one Gigabit Ethernet port, It provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.
UT-King 1ge xpon onuseries is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON when it access to the EPON OLT or GPON OLT
XPON ONU can work on EPON or GPON mode. It can automatically identify whether the OLT is EPON type or GPON type and switch the operation mode . Therefore, whether the current network of Operators or ISPs is EPON or GPON, xPON ONU can run in it.
| Module | XP6105 |
|
User interface |
1 10/100/1000M RJ45 port. |
|
PON |
Transmission speed :upstream 1.25Gbps /downstream 2.5Gbps Network coverage radius: 20KM Optical receive sensitivity:≥-28dBm Continuous light power: 0.5dBm~+5dBm Security: ONU authentication mechanism |
|
Protocol |
Compliant with IEEE 802.3ah YD/T 1475-2006 IEEE 802.1D, Spanning Tree IEEE 802.1Q, VLAN IEEE 802.1w, RSTP IEEE 802.3ad (LACP) Ethernet–II, Ethernet-SNAP |
|
Route |
Support NAT Support PPPOE Support Server Client Support Route |
|
VLAN |
Port-based VLAN GVRP IEEE 802.1Q VLAN |
|
QOS |
Backpressure flow control(half-duplex) IEEE 802.3x flow control(full-duplex) Prevent Head Of Line IEEE 802.1p, CoS WR,SP and FIFO queue scheduling algorithm Port rate limit |
|
Safety |
IEEE 802.1x, access control based upon Port; support local and remote RADIUS. CHAP,EAP certification; Storm control, port protection, |
|
Management |
Various management modes such as Web, TELNET Debug function. |
| Size | 105mm(L) ×85mm(W) ×25mm(H) |
|
Environment |
Operating temperature:0℃~60℃; Operating humidity:10%~85% non-condensing |
|
Storage temperature:-40℃~80℃; Storage humidity:5%~95% non-condensing |
|
|
Power supply |
110~240VAC 12V/0.5A DC power interface size:2.1mm/5.5mm |
|
Power Consumption |
2.5W |
