FTTH FTTB FTTX Network XPON ONU With 1GE 3FE 1POTS WiFi

FTTH FTTB FTTX Network XPON ONU With 1GE 3FE 1POTS WiFi
FTTH FTTB FTTX Network XPON ONU With 1GE 3FE 1POTS WiFi FTTH FTTB FTTX Network XPON ONU With 1GE 3FE 1POTS WiFi FTTH FTTB FTTX Network XPON ONU With 1GE 3FE 1POTS WiFi FTTH FTTB FTTX Network XPON ONU With 1GE 3FE 1POTS WiFi FTTH FTTB FTTX Network XPON ONU With 1GE 3FE 1POTS WiFi

Large Image :  FTTH FTTB FTTX Network XPON ONU With 1GE 3FE 1POTS WiFi

Product Details:
Place of Origin: Guangdong
Brand Name: UT-King
Certification: RoHS, CE, ISO9001
Model Number: XP6422
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: 1set/box
Delivery Time: 5-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs per week

FTTH FTTB FTTX Network XPON ONU With 1GE 3FE 1POTS WiFi

Description
Product Name: XPON ONU Application: FTTH FTTB FTTX Network
Function: 1GE+3FE+1POTS+WIFI Wavelength: Tx 1310nm, Rx1490nm
LAN Interface: 4x10/100/1000Mbps RJ45 Ports Applications Distance: 20km
External Power Supply: DC 12V/1A Chipset: ZAX279127
Keywords: ONU XPON
High Light:

FTTX Network XPON ONU

,

FTTB Network XPON ONU

,

FTTH Network ONU XPON

UT-King Brand Passive Optical Network Terminal XPON ONU With 1GE+3FE+1POTS+WIFI Onu Xpon Model





XP6422 is designed and manufactured for the next-generation Passive Optical Network (XPON) terminal, ideal for Fiber to The Home solution. The box is based on the mature GPON&EPON technology, which has high ratio of performance to price, and the technology of 802.11n WiFi (2T2R), Layer 2&3 and high quality VoIP as well. It is highly reliable and easy to maintain, with guaranteed QOS for different service.





Feature

1, Complies with ITU-T G.984.X and IEEE802.3ah, provides comprehensive GPON and EPON network compatibility
2, Downstream rates of up to 2.488Gbps for GPON mode, 1.244Gbps for EPON mode , and upstream rates up to 1.244Gbps
3, Fiber access and gigabit port provide incredibly fast transfer speeds
4, Supports802.11AC
5, Supports OMCI (ONT Management Control Interface) and OAM remote management


Specification:







Item Description
XPON Standards ITU-T G.984.x and IEEE802.3ah
Chipset ZTE,ZAX279127
Interface

1 SC/UPC Port or 1 SC/APC Port

1 10/100/1000Mbps RJ45 Ports

3 10/100Mbps RJ45 Ports

1 POTS Port

WIFI (2.4G)

Data Rates & Wavelength Upstream:1.244Gbps, 1310nm
Downstream:2.488Gbps for GPON mode and 1.244Gbps for EPON mode, 1490nm
RX sensitivity < -28dBm @ 1490nm
Distance 0~ 20Km Max
LAN interface

1*10/100/1000Mbps

3*10/100Mbps

Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors

WLAN

Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R

two internal antenna,or external antenna(optional)

POTS interface 1FXS, RJ11 connectors
External Power Supply DC 12V/1A
Dimensions (Length * Width * Height) 180mm×130mm×50mm
Weight (Full-Loaded) 0.4kg
Environmental Requirements

Working temperature: 0°C~40°C

Storage temperature: -40°C~70°C

Relative humidity: 10%~90%, non-condensing

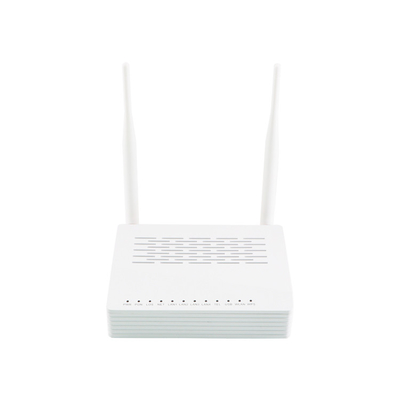

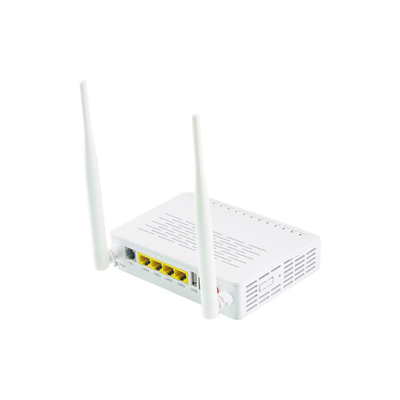

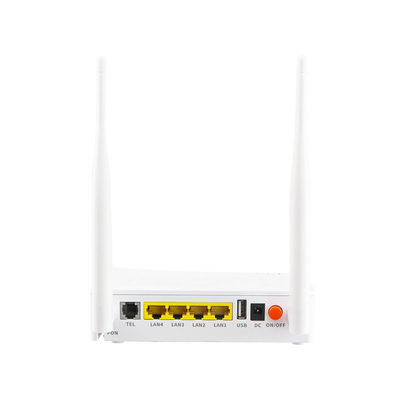

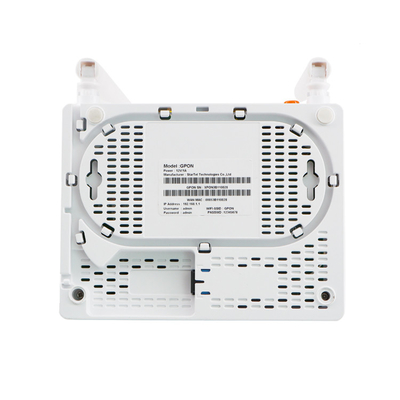

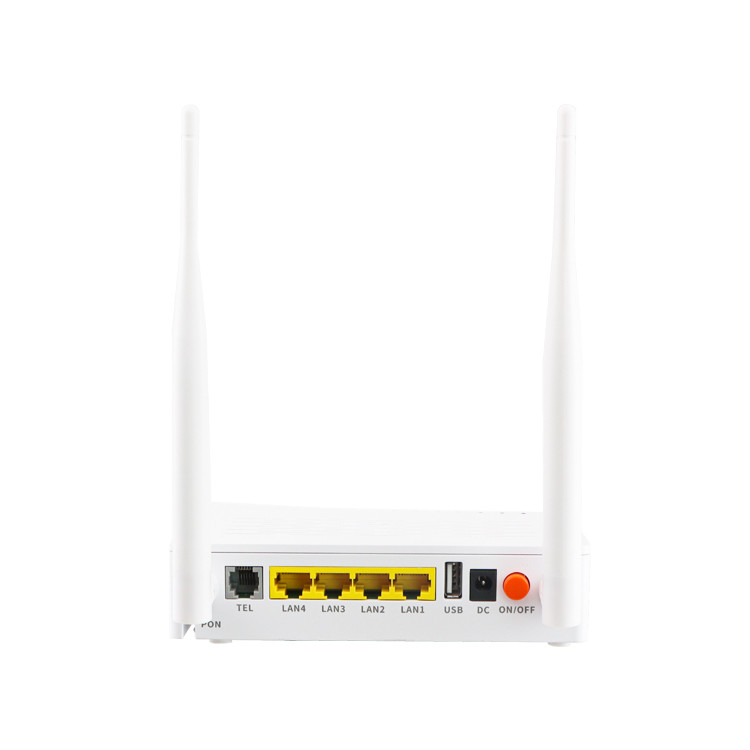

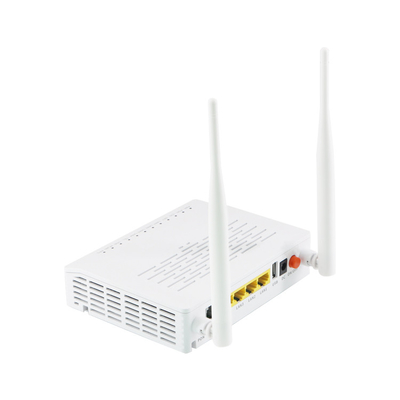

Details of Picture



FTTH FTTB FTTX Network XPON ONU With 1GE 3FE 1POTS WiFi 0FTTH FTTB FTTX Network XPON ONU With 1GE 3FE 1POTS WiFi 1
