1GE Port XPON CATV ONU 12V 0.5A For FTTH Network

1GE Port XPON CATV ONU 12V 0.5A For FTTH Network
1GE Port XPON CATV ONU 12V 0.5A For FTTH Network 1GE Port XPON CATV ONU 12V 0.5A For FTTH Network 1GE Port XPON CATV ONU 12V 0.5A For FTTH Network 1GE Port XPON CATV ONU 12V 0.5A For FTTH Network 1GE Port XPON CATV ONU 12V 0.5A For FTTH Network

Large Image :  1GE Port XPON CATV ONU 12V 0.5A For FTTH Network

Product Details:
Place of Origin: Guangdong
Brand Name: UT-King
Certification: RoHS, CE, ISO9001
Model Number: XP6141
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: 1set/box
Delivery Time: 5-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs per week

1GE Port XPON CATV ONU 12V 0.5A For FTTH Network

Product Name: Onu Xpon Type: FTTH Solutions
PON Port: 1GE+CATV PON Interface: UPC/APC
Input Power Distance: 12V 0.5A Chipset: ZTE/RTL/MTK
Color: White Software: English Firmware
Application: FTTH FTTB FTTX Network Keywords: Xpon Onu
High Light:






Modem De Fibra Optica FTTH XPON CATV ONU 1GE Port Ont Optical Network Terminal Onu Xpon Catv

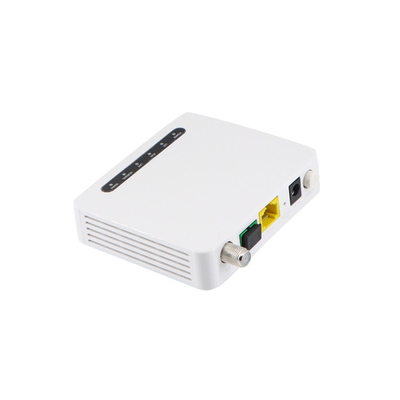

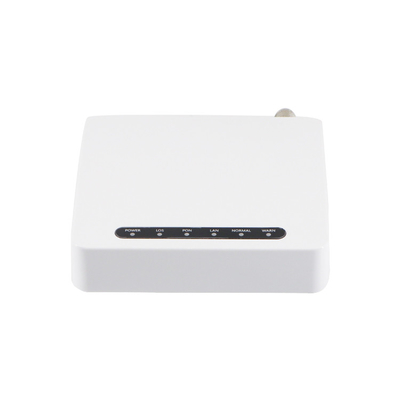

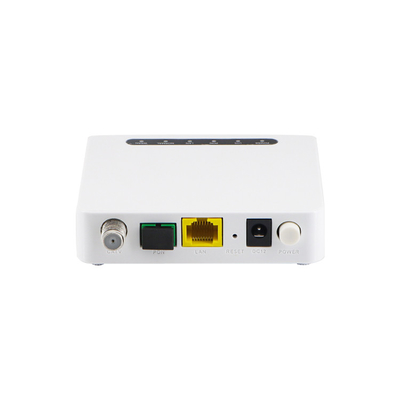

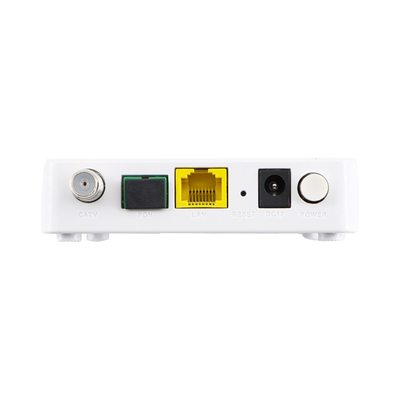

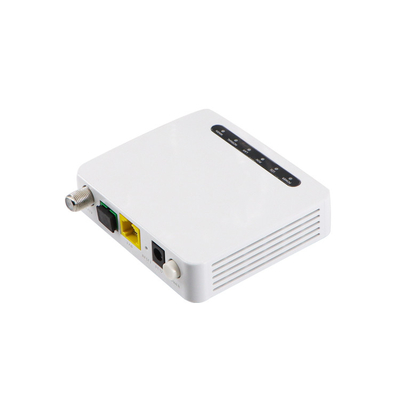

XPON ONU(UT-XP6141) is designed and manufactured by Shenzhen UT-King Technology Co.,Ltd, a next-generation Gigabit Passive Optical Network terminal, ideal for Fiber to The Home solution. It’s an incredibly robust device allowing users to access high-speed internet connections via its XPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 2.488Gbps, one XPON port and one Gigabit Ethernet port, It provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.


UT-King 1ge CATV Xpon onuseries is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON when it access to the EPON OLT or GPON OLT




  • Color is optional
  • Router mode supports PPPoE/DHCP/ static IP
  • Support port-based rate limitation and bandwidth control;
  • In compliant with IEEE802.3ah Standard
  • Up to 20KM transmission Distance
  • Support data encryption, group broadcasting, port Vlan separation, etc.
  • Support Dynamic Bandwidth Allocation (DBA)
  • Support ONU auto-discovery/Link detection/remote upgrade of software;
  • Support VLAN division and user separation to avoid broadcast storm;
  • Support power-off alarm function ,easy for link problem detection
  • Support broadcasting storm resistance function
  • Support ACL and SNMP to configure data packet filter flexibly
  • Specialized design for system breakdown prevention to maintain stable system
  • Support software online upgrading EMS network management based on SNMP ,convenient for maintenance







1 10/100/1000M RJ45 port
VLAN Port-based VLAN

Support NAT
Support PPPOE
Support Server Client
Support Route
Environment Operating temperature:0℃~60℃;
Operating humidity:10%~85% non-condensing
Storage temperature:-40℃~80℃;
Storage humidity:5%~95% non-condensing
Power supply 110~240VAC 12V/0.5A DC
power interface size:2.1mm/5.5mm
Transmission speed :upstream/downstream 1.25Gbps
Network coverage radius: 20KM
Optical receive sensitivity:≥-28dBm
C ontinuous light power: 0.5 dBm~+5dBm
Security: ONU authentication mechanism
