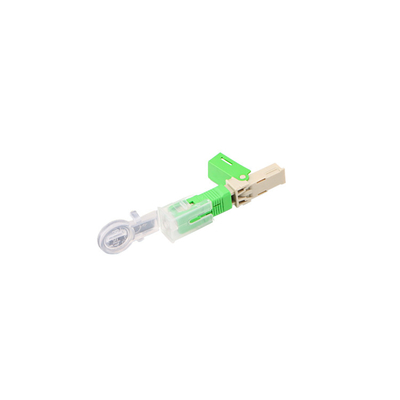

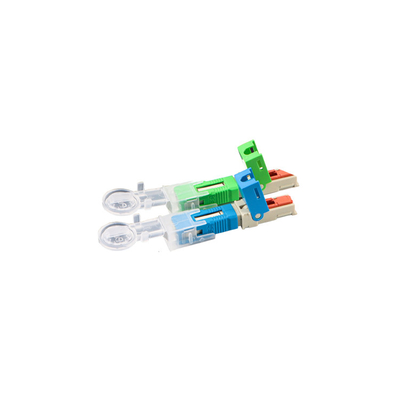

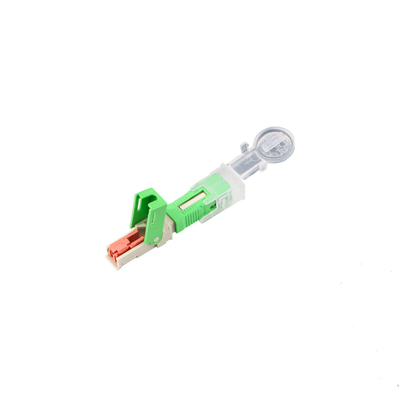

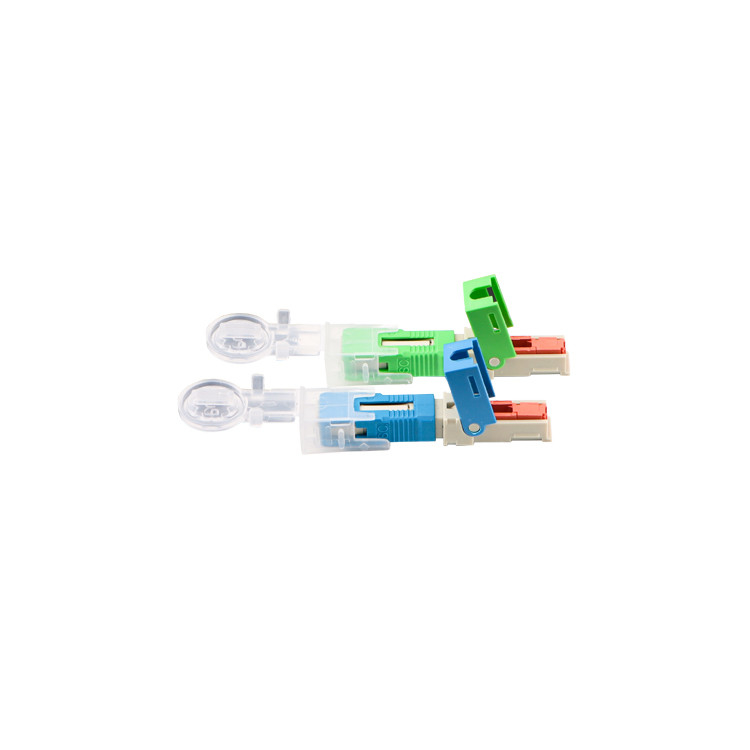

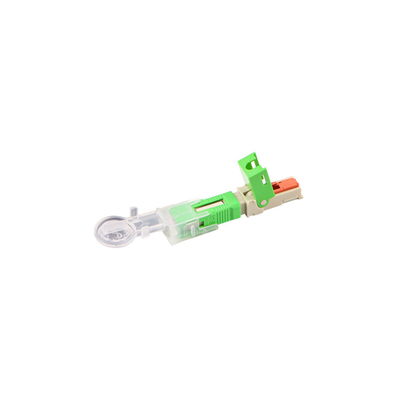

APC SM MM Fiber Optic Fast Connector 50MM Length

Certification
China Shenzhen UT-King Technology Co., Ltd. certification
China Shenzhen UT-King Technology Co., Ltd. certification
I'm Online Chat Now

APC SM MM Fiber Optic Fast Connector 50MM Length

APC SM MM Fiber Optic Fast Connector 50MM Length
APC SM MM Fiber Optic Fast Connector 50MM Length APC SM MM Fiber Optic Fast Connector 50MM Length APC SM MM Fiber Optic Fast Connector 50MM Length APC SM MM Fiber Optic Fast Connector 50MM Length APC SM MM Fiber Optic Fast Connector 50MM Length

Large Image :  APC SM MM Fiber Optic Fast Connector 50MM Length

Product Details:
Place of Origin: Guangdong
Brand Name: UT-King
Certification: RoHS, CE, ISO9001
Model Number: SC5009
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: 10 plates /box
Delivery Time: 5-10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs per week

APC SM MM Fiber Optic Fast Connector 50MM Length

Description
Type: Fiber Optic Fast Connector Connector: Fast Connector SC APC
Fiber Mode: Single Mode Mulit Mode Insertion Loss: ≤0.3dB
Return Loss: ≥50dB Tensile Strength: ≥50N
Length: 50mm Reusable: ≥10 Times
Fiber Cable Type: 3x2mm Flat Cable Keyword: Fiber Optic Fast Connector
High Light:

APC MM Fiber Optic Fast Connector

,

APC SM Fiber Optic Fast Connector

,

APC Quick Connector 50MM Length



Conector Rapido de Fibra Optica Fast Connector 50MM SC5009 APC Conector Fiber Quick Connector







Installed in order to ensure the quality and efficiency of research and development of the high ratio of the fiber optic fast in products. Pressure welding parts adopt new unique structure design, installation no injecting, no grinding, no material . With embedded optical fiber type structure .Installed with high quality and high success rate and fast and other characteristics .It Can be reused and easy to carry





Features



  • 1. ITU-T and IEC and China standards:
  • 2. YDT 2341.1-2011 Field Assembled Optical Fiber Active Connector
  • Part 1: Mechanical Type
  • single-mode optical connectors and jumpers
  • 5. YD/T 1636-2007 Fiber to the Home (FTTH) Architecture and General
  • Requirements Fiber Optic Cable Connector Part 4: Sectional Specification
  • Optical Fiber Optical Cable Mechanical Connector





Specification:





Model No. UT-SC5009
Connector Type UPC/APC
Length 50mm
Applicable for Drop cable.Indoor cable
Fiber mode Single mode or Multi mode
Operation time About 50s(no fiber cut)
Insertion Loss ≤0.2dB
Insertion Loss Typical value 0.2dB
Return Loss ≥50dB UPC ≥55dB APC
Fastening strength of naked fiber ≥5N
Tensile strength ≥50N
Reusable ≥10 times
Operating Temperature -40~+85℃







Details for Image:





4512
