UT-King XP6281 XPON GEPON ONU With 2.4G And 5.8G 2WiFi 2GE CATV

Description
Product Name: CATV Onu Xpon Type: FTTH Solutions
PON Port: 2GE+CATV+2WIFI 2.4G&5.8G Wavelength: Tx1310nm, Rx1490nm
Chipsets: Realtek RTL9607C Optical Receiver: ≥-26dBm
Color: White Software: English Firmware
Power Consumption: ≤ 10W Keywords: Xpon Dual Band Onu
High Light:

UT-King XP6281 GEPON ONU

,

GEPON ONU With 2WiFi

,

XPON ONU With 2GE


UT-King Red de Fibra Optica GEPON ONU XP6281 With 2.4G&5.8G Wifi Dual ONU 2GE CATV XPON ONU




.jpg





XPON ONU/HGU(XP6281) devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. These boxes are based on the mature Gigabit GPON and EPON technology, which have high ratio of performance to price, and the technology of 802.11b/g/n/ac WiFi (2T2R), Layer 2/3 and high quality as well. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as ITU-TG.984.x and IEEE802.3x.

Product Feature:

1, Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.

2, Integrated OMCI or OAM remote configuration and maintenance function.

3, Support rich QinQ VLAN functions and IGMP Snooping multicast features.

4, Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.

5, Support 802.11b/g/n/ac WiFi(2T2R) function. 6,Support NAT, Firewall function. 7,Support IPv4 and IPv6 dual stack.









Specification:



Item
Description
Chipsets
Realtek RTL9607C
Optical interface
1 XPON interface, SC single-mode/single-fiber,
Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Optical Wavelength
Tx 1310nm, Rx 1490nm
Optical interface
SC/APC
RX sensitivity
< -27dBm @ 1490nm





Wireless
Compliant with IEEE802.11b/g/n/ac
Operating frequency: 2.4-5.8GHz
support MIMO, rate up to 1200Mbps,
2T2R,two external antenna 5dBi,
Support: Multiple SSID
Channel: Auto
Modulation type: DSSS, CCK and OFDM
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
WLAN throughput
100Mbps @ 40users, 1518bytes, no-encryption
107Mbps @ 40users, 512bytes, encryption
LAN interface
2*10/100/1000Mbps
Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors





CATV interface
RF, WDM ,optical power : +2~-18dBm
Optical reflection loss: ≥45dB
Optical receiving wavelength: 1550±10nm
RF frequency range: 47~1000MHz, RF output impedance: 75Ω
RF output level: 78dBuV
AGC range: 0~-15dBm
MER: ≥32dB@-15dBm
DC power supply
DC 12V/1A, external AC-DC power adaptor
Button
RST, Power, WiFi, WPS, Pair
Power consumption
≤ 10W
Operating condition
Operating temp: 0 ~ +55℃
Operating humidity: 10~90% (non-condensed)
Storing condition
Storing temp: -30 ~ +60℃
Storing humidity:10~90%(non-condensed)
Dimension
180mm×110mm×40mm(L×W×H)
Net Weight
0.24Kg





.jpg

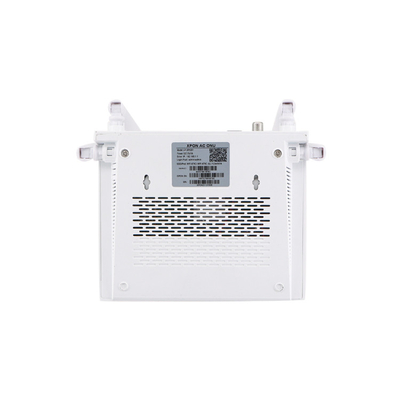

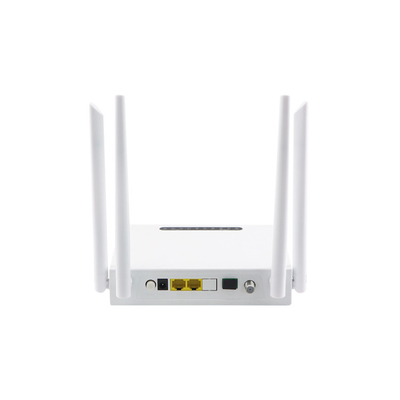

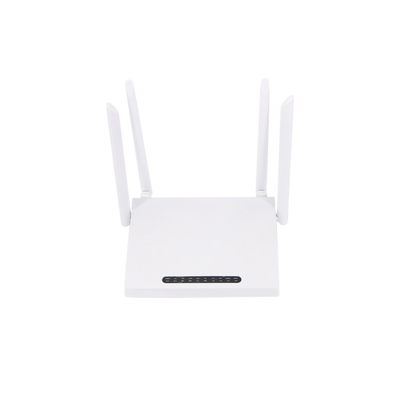

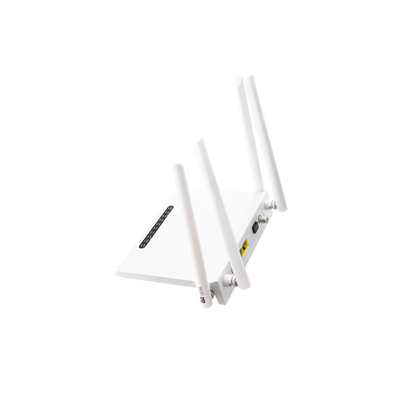

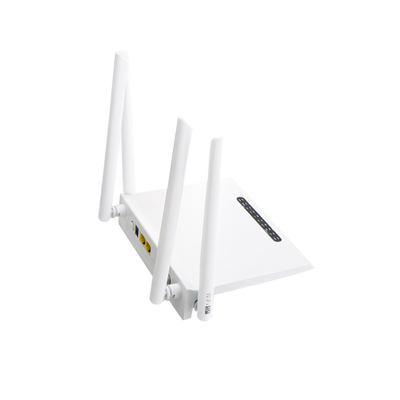

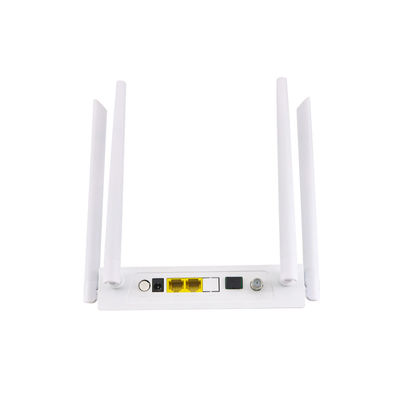

UT-King XP6281 XPON GEPON ONU With 2.4G And 5.8G 2WiFi 2GE CATV 2UT-King XP6281 XPON GEPON ONU With 2.4G And 5.8G 2WiFi 2GE CATV 3UT-King XP6281 XPON GEPON ONU With 2.4G And 5.8G 2WiFi 2GE CATV 4UT-King XP6281 XPON GEPON ONU With 2.4G And 5.8G 2WiFi 2GE CATV 5
