UT-King XP6422 Passive XPON ONT With 1GE 3FE 1POTS 1WIFI

UT-King XP6422 Passive XPON ONT With 1GE 3FE 1POTS 1WIFI
UT-King XP6422 Passive XPON ONT With 1GE 3FE 1POTS 1WIFI
UT-King XP6422 Passive XPON ONT With 1GE 3FE 1POTS 1WIFI UT-King XP6422 Passive XPON ONT With 1GE 3FE 1POTS 1WIFI UT-King XP6422 Passive XPON ONT With 1GE 3FE 1POTS 1WIFI UT-King XP6422 Passive XPON ONT With 1GE 3FE 1POTS 1WIFI UT-King XP6422 Passive XPON ONT With 1GE 3FE 1POTS 1WIFI UT-King XP6422 Passive XPON ONT With 1GE 3FE 1POTS 1WIFI

Large Image :  UT-King XP6422 Passive XPON ONT With 1GE 3FE 1POTS 1WIFI

Product Details:
Place of Origin: Guangdong, China
Brand Name: UT-King
Model Number: XP6422
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD 14-18 per pieces
Packaging Details: 10/20 pcs 1 carton
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000pcs one week
Contact Now

UT-King XP6422 Passive XPON ONT With 1GE 3FE 1POTS 1WIFI

Description
Product Name: XPON ONU/ONT Material: Plastic
Downlink: 1x10/100/1000Mbps Power Adapter: EU,US,UK,AU
WIFI: 2.4G Color: White
Optical Interface: SC APC/UPC Configuration: 1GE+3FE+1TEL+WIFI
Power Supply: DC 12V/1 A
High Light:

Passive XPON ONT

,

UT-King XP6422 XPON ONT

,

XPON ONU With 3FE

2022 UT-King New Model Passive XP6422 ONT with 1GE+3FE+1POTS+1WIFI XPON ONU


XP6422 is designed and manufactured for the next-generation Passive Optical Network (XPON) terminal, ideal for Fiber to The Home solution. The box is based on the mature GPON&EPON technology, which has high ratio of performance to price, and the technology of 802.11n WiFi (2T2R), Layer 2&3 and high quality VoIP as well. It is highly reliable and easy to maintain, with guaranteed QOS for different service.

Feature

► Complies with ITU-T G.984.X and IEEE802.3ah, provides comprehensive GPON and EPON network compatibility
► Downstream rates of up to 2.488Gbps for GPON mode, 1.244Gbps for EPON mode , and upstream rates up to 1.244Gbps
► Fiber access and gigabit port provide incredibly fast transfer speeds
► Supports802.11AC
► Supports OMCI (ONT Management Control Interface) and OAM remote management

Item
Description
XPON Standards
ITU-T G.984.x and IEEE802.3ah
Chipset
ZTE,ZAX279127
Interface
1 SC/UPC Port or 1 SC/APC Port
1 10/100/1000Mbps RJ45 Ports
3 10/100Mbps RJ45 Ports
1 POTS Port
WIFI (2.4G)
Data Rates & Wavelength
Upstream:1.244Gbps, 1310nm
Downstream:2.488Gbps for GPON mode and 1.244Gbps for EPON mode, 1490nm
RX sensitivity
< -28dBm @ 1490nm
Distance
0~ 20Km Max
LAN interface
1*10/100/1000Mbps
3*10/100Mbps
Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors
WLAN
Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R
two internal antenna,or external antenna(optional)
POTS interface
1FXS, RJ11 connectors
External Power Supply
DC 12V/1A
Dimensions (Length * Width * Height)
180mm×130mm×50mm
Weight (Full-Loaded)
≤0.4kg

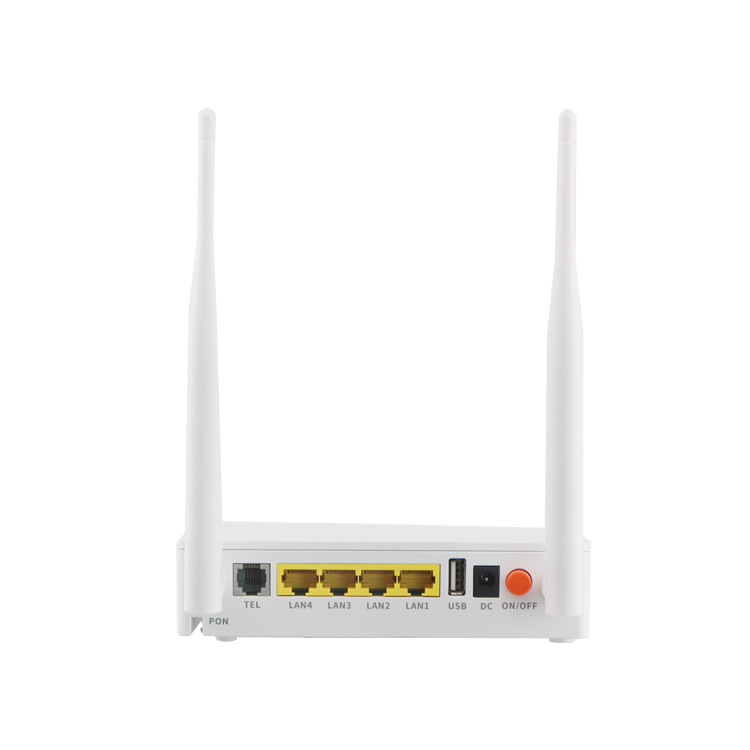

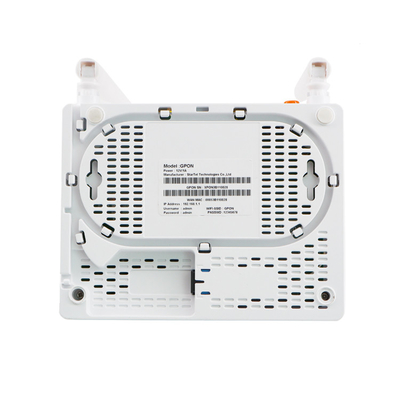

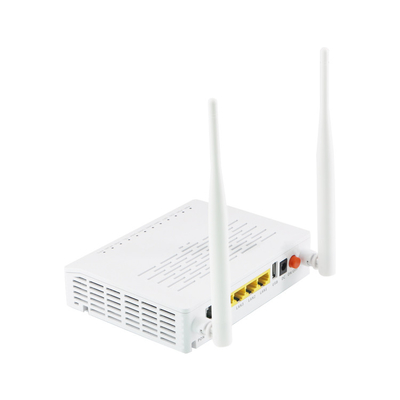

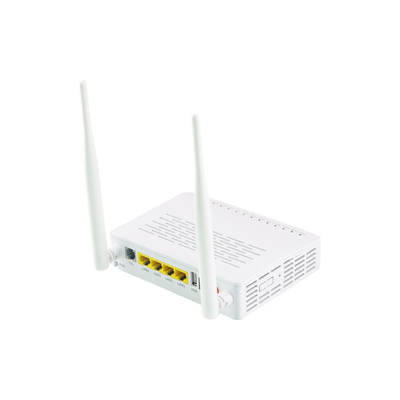

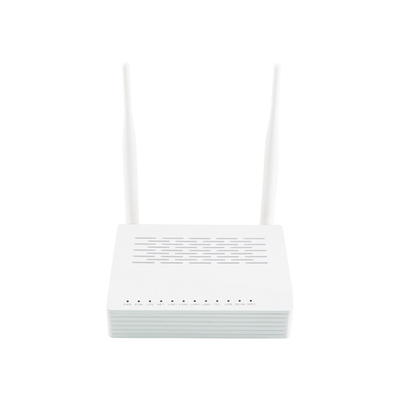

Detail image

UT-King XP6422 Passive XPON ONT With 1GE 3FE 1POTS 1WIFI 0UT-King XP6422 Passive XPON ONT With 1GE 3FE 1POTS 1WIFI 1
UT-King XP6422 Passive XPON ONT With 1GE 3FE 1POTS 1WIFI 2
