Product Details:
|
| Insertion Loss: | ≤0.2db | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Connector Type: | SC/APC | Return Loss: | Upc≤45db,Apc≤55db |
| Color: | Green/Blue | Product Name: | SC Fast Connector |
| Fiber Type: | SM | Operating Temperature: | -40 To +85 Degree |
| Durability: | ≤ 0.25db Typical Change | Certification: | ISO9001,RoHS,CE,SGS |
| Name: | Fast Connector | Connector: | Fast Connector SC |
| Fiber Cable Type: | 3x2mm Flat Cable | Length: | 50mm |
| High Light: | FTTX Network SC Fast Connector,52mm FTTH Fast Connector,FTTH Field SC Fast Connector |
||

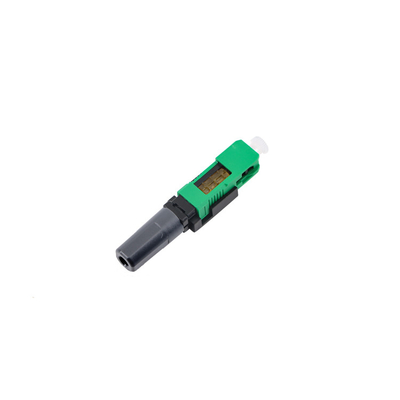

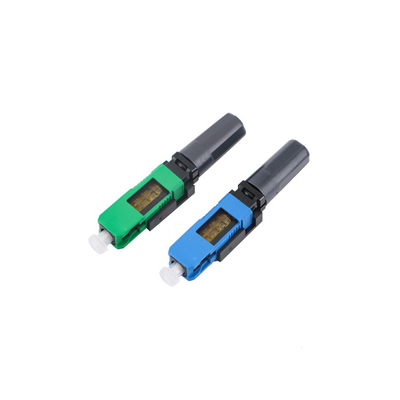

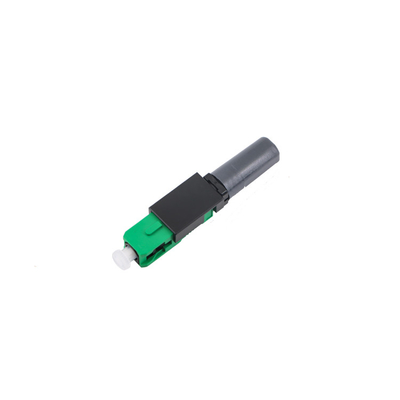

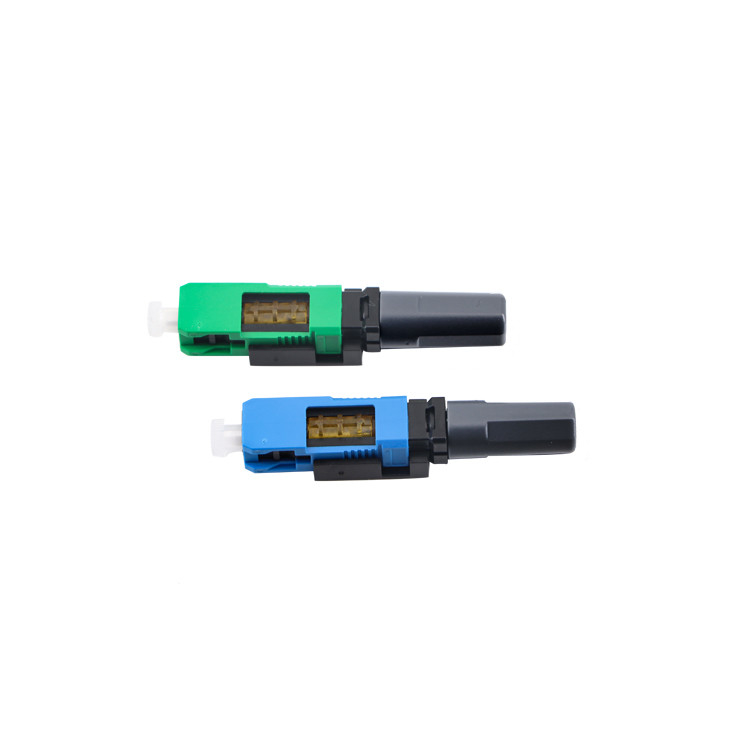

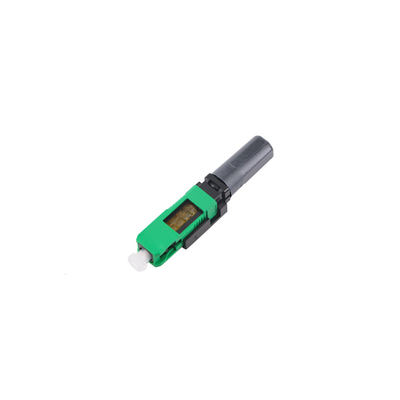

UT-King Fiber Optic fast Connector field-installable connectors are factory pre-polished connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers.

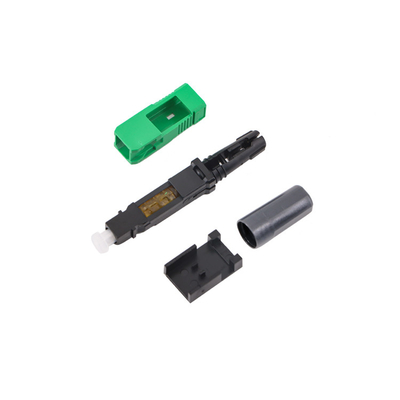

UT-King's fast Connector connectors are compatible with 250 µm and 900 µm optical fibers, as well as 900 µm, 2 mm and 3 mm cordage. All primary fiber types are supported, and each connector is color coded per industry-standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination. Incorporated into this device is an innovative, translucent wedge enabling the use of a common VFI to provide a “pass/fail” signal once physical contact is achieved.
Applications
| er Optic Cable | 2.0mmx3.0mm |
| Plug Type | SC/APC |
| Fiber diameter | 0.125mm |
| Fiber Mode | Singlemode |
| Insertion Loss | <0.5dB (typical 0.2dB) |
| Return Loss | <50dB |
| Tensile strength | <20N |
| Temperature | -40℃—+70℃ |
| Temperature cycling | IL<0.3dB,RL<5dB |
About Us:
Shenzhen UT-King Technology Co., Ltd which was founded in the year 2010 is a professional Hi-tech company in fiber optic communication industry. We specialize in researching, developing, manufacturing and selling a wide range of highly competitive fiber optic products and accessories for telecommunication, broadcast, CATV and network worldwide.
Now, UT-King has more than 200 employees. Our main products are PLC splitters, Fast connectors, Patch cords, MPO/MTP products, adaptors, WDM system, Fiber cables, and Fiber managements. With the development of the business, UT-King has expanded its business to fiber active products in the year 2015. We have our own R&D team for EPON/GPON system. With their excellent technical strength, now we have full range of EPON/GPON/XPON OLT and ONU. What’s more, we also have big advantages on SFP modules, such as 10G SFP+, 40G QSFP28 and 100G CFP and 100G QSFP28.
All of our optical products are RoHS compliant and we also obtained ISO9001, ISO14001 certification. Rich experiences in massive Cproduction of fiber optical products ensure the reliable stabilities of its high quality and excellent performances of its goods. It obtains the good reputations all these years Cfrom customers around the earth for its excellent quality, fast delivery, and timely after-services. We wish to create better future of optical communication industry jointly with both new and existing customers.
