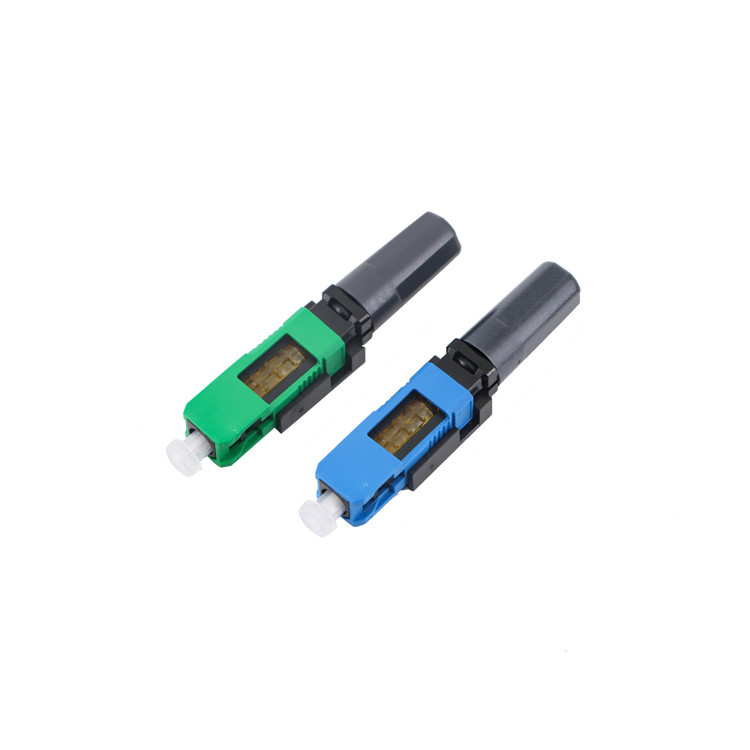

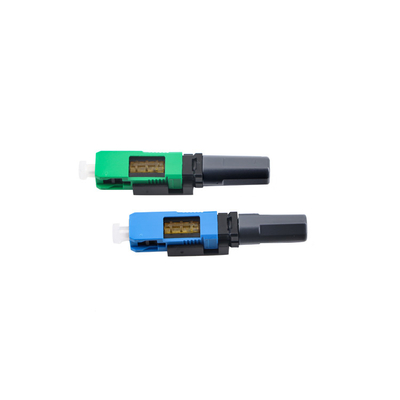

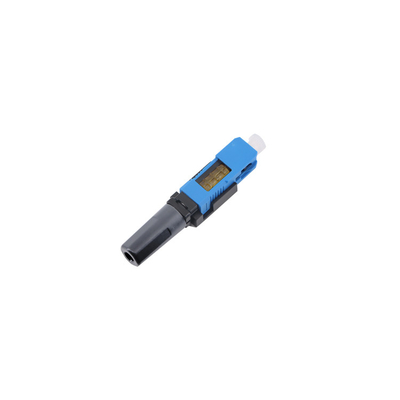

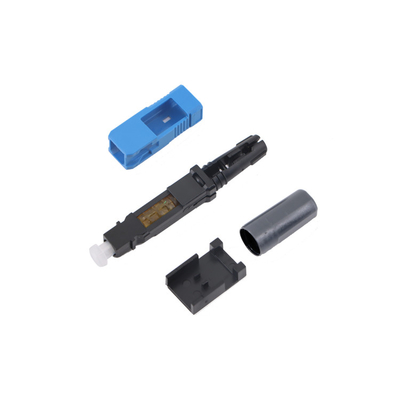

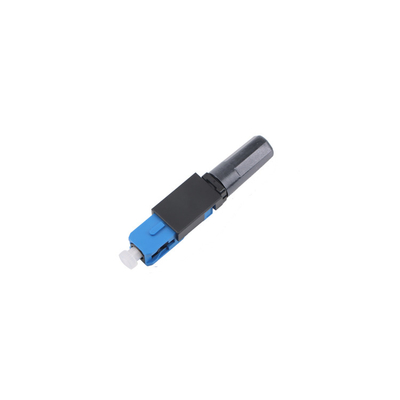

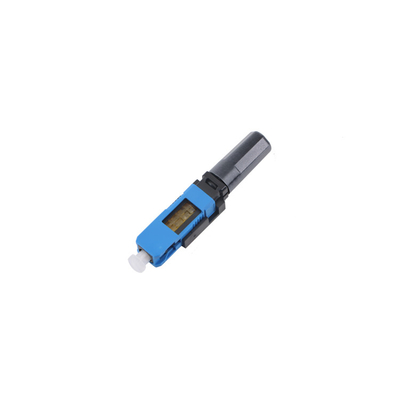

FTTH Field Fibre Optical Connector SC / UPC SC5203 Green Blue

FTTH Field Fibre Optical Connector SC / UPC SC5203 Green Blue
FTTH Field Fibre Optical Connector SC / UPC SC5203 Green Blue FTTH Field Fibre Optical Connector SC / UPC SC5203 Green Blue FTTH Field Fibre Optical Connector SC / UPC SC5203 Green Blue FTTH Field Fibre Optical Connector SC / UPC SC5203 Green Blue FTTH Field Fibre Optical Connector SC / UPC SC5203 Green Blue FTTH Field Fibre Optical Connector SC / UPC SC5203 Green Blue

Large Image :  FTTH Field Fibre Optical Connector SC / UPC SC5203 Green Blue

Product Details:
Place of Origin: china
Brand Name: UT-King
Certification: CE,ROSH,iso9001
Model Number: SC5203
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Packaging Details: 1pcs 1 bag,100pcs/1 box.1000 pcs/carton
Delivery Time: 3-5days
Payment Terms: T/T, Western Union,credit card
Supply Ability: 10000pcs/week

FTTH Field Fibre Optical Connector SC / UPC SC5203 Green Blue

Description
Insertion Loss: ≤0.2db Application: FTTH FTTB FTTX Network
Connector Type: SC/UPC Return Loss: Upc≤45db,Apc≤55db
Color: Green/Blue Product Name: SC Fast Connector
Fiber Type: SM Operating Temperature: -40 To +85 Degree
Durability: ≤ 0.25db Typical Change Certification: ISO9001,RoHS,CE,SGS
Name: Fast Connector Connector: Fast Connector SC
Fiber Cable Type: 3x2mm Flat Cable Length: 50mm
High Light:

Green SC Fast Connector

,

FTTH Field Fibre Optical Connector

,

Blue FTTH Fast Connector

Conector Rapido de Fibra Optica FTTH Field Assembly Fibre Optical Connector SC/UPC SC5203 Optic Fast Connector

Description

  • UT-King SC Fast Connector is widely used in FTTH (Fiber to The Home) access optical Networks. Designed for simple and fast field termination of single fibers without polishing, adhesives or curing process.
  • SC Fast Connector uses Sumitomo’s guide rail technology to help position the fiber into the connector, achieving a positive connection in the mechanical splice and low insertion loss termination.
  • For Singlemode Fiber, Multimode Fiber, as well as choose to 900 microns, 3.0mm and the introduction of cable 8 font type.
  • Fasten design makes installation easy. For connecting to other devices and fiber optic panels.
  • No electrical power supply is needed to assemble the Fast SC Connector.

UT-King Fiber Optic fast Connector field-installable connectors are factory pre-polished connectors that completely eliminate the need for hand polishing in the field. Proven mechanical splice technology ensuring precision fiber alignment, a factory pre-cleaved fiber stub and a proprietary index-matching gel combine to offer an immediate low loss termination to either single-mode or multimode optical fibers.

UT-King's fast Connector connectors are compatible with 250 µm and 900 µm optical fibers, as well as 900 µm, 2 mm and 3 mm cordage. All primary fiber types are supported, and each connector is color coded per industry-standard requirements to aide in identification during and after installation. A factory-installed wedge clip (included with each connector) is removed and discarded upon completion of the termination. Incorporated into this device is an innovative, translucent wedge enabling the use of a common VFI to provide a “pass/fail” signal once physical contact is achieved.

Features

  • 1.ITU-T and IEC and China standards:
  • 2.YDT 2341.1-2011 Field Assembled Optical Fiber Active Connector
  • Part 1: Mechanical Type
  • single-mode optical connectors and jumpers
  • 5.YD/T 1636-2007 Fiber to the Home (FTTH) Architecture and General
  • Requirements Fiber Optic Cable Connector Part 4: Sectional Specification
  • Optical Fiber Optical Cable Mechanical Connector



Applications

  • Premise environments
  • Connections at the desk for LAN environments
  • Patch panels
  • Direct equipment termination
  • Fiber to the Subscriber (FTTx) applications
  • Repair and replacement requirements
  • Equipment test leads

Specification

er Optic Cable 2.0mmx3.0mm
Plug Type SC/APC
Fiber diameter 0.125mm
Fiber Mode Singlemode
Insertion Loss <0.5dB (typical 0.2dB)
Return Loss <50dB
Tensile strength <20N
Temperature -40℃—+70℃
Temperature cycling IL<0.3dB,RL<5dB





FTTH Field Fibre Optical Connector SC / UPC SC5203 Green Blue 0
FTTH Field Fibre Optical Connector SC / UPC SC5203 Green Blue 1FTTH Field Fibre Optical Connector SC / UPC SC5203 Green Blue 2FTTH Field Fibre Optical Connector SC / UPC SC5203 Green Blue 3
