Product Details:
|
| Application: | FTTH FTTB FTTX Network | Product Name: | XPON ONU |
|---|---|---|---|
| Function: | 2GE+1POTS+2WIFI +CATV | Chipset: | Realtek RTL9607C |
| Wavelength: | Tx 1310nm, Rx 1490nm | RX Sensitivity: | < -27dBm @ 1490nm |
| Connector Type: | SC/APC | DC Power Supply: | DC 12V/1A, External AC-DC Power Adaptor |
| Keywords: | ONU XPON | Button: | RST, Power, WiFi, WPS, Pair |
| High Light: | FTTB XPON ONU,XP6281 XPON ONU |
||
New Style FTTH ONT Device XPON ONU 2GE+1POTS+2WIFI ONT XP6281 CATV ONU XPON
XPON ONU/HGU(XP6281) devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. These boxes are based on the mature Gigabit GPON and EPON technology, which have high ratio of performance to price, and the technology of 802.11b/g/n/ac WiFi (2T2R), Layer 2/3 and high quality as well. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as ITU-TG.984.x and IEEE802.3x.
Features :
|
Item |
Description |
| Chipsets | Realtek RTL9607C |
| Optical interface |
1 XPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps |
| Optical Wavelength | Tx 1310nm, Rx 1490nm |
| Optical interface | SC/APC |
| RX sensitivity | < -27dBm @ 1490nm |
| Wireless | Compliant with IEEE802.11b/g/n/ac |
| Operating frequency: 2.4-5.8GHz | |
| support MIMO, rate up to 1200Mbps, | |
| 2T2R,two external antenna 5dBi, | |
| Support: Multiple SSID | |
| Channel: Auto | |
| Modulation type: DSSS, CCK and OFDM | |
| Encoding scheme: BPSK, QPSK, 16QAM and 64QAM | |
| WLAN throughput |
100Mbps @ 40users, 1518bytes, no-encryption 107Mbps @ 40users, 512bytes, encryption |
| LAN interface |
2*10/100/1000Mbps Auto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connectors |
| CATV interface | RF, WDM ,optical power : +2~-18dBm |
| Optical reflection loss: ≥45dB | |
| Optical receiving wavelength: 1550±10nm | |
| RF frequency range: 47~1000MHz, RF output impedance: 75Ω | |
| RF output level: 78dBuV | |
| AGC range: 0~-15dBm | |
| MER: ≥32dB@-15dBm | |
| DC power supply | DC 12V/1A, external AC-DC power adaptor |
| Button | RST, Power, WiFi, WPS, Pair |
| Power consumption | ≤ 10W |
| Operating condition |
Operating temp: 0 ~ +55℃ Operating humidity: 10~90% (non-condensed) |
| Storing condition |
Storing temp: -30 ~ +60℃ Storing humidity:10~90%(non-condensed) |
| Dimension | 180mm×110mm×40mm(L×W×H) |
| Net Weight | 0.24Kg |

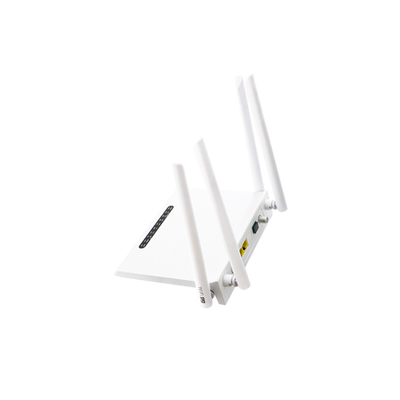

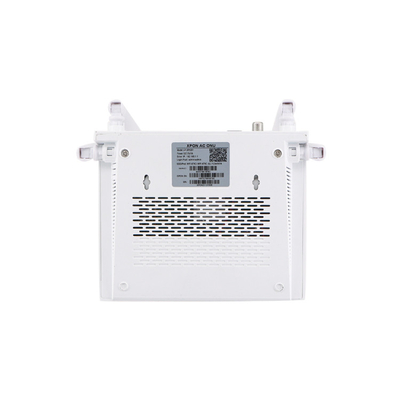

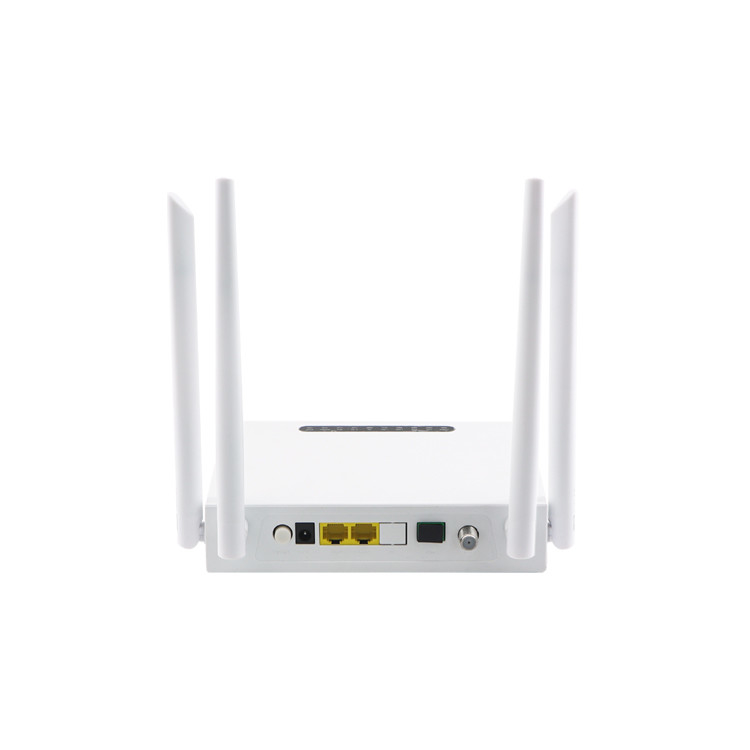

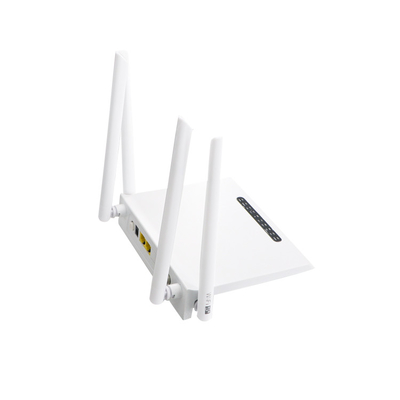

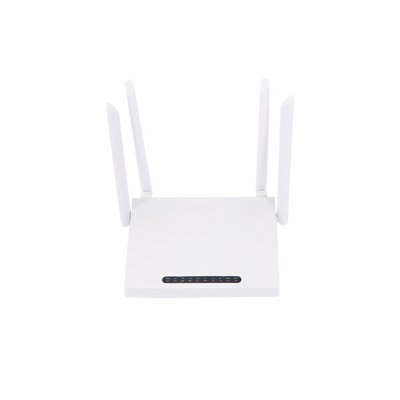

Details of Picture :
